Ignition (1AR-FE) Wiring Diagram

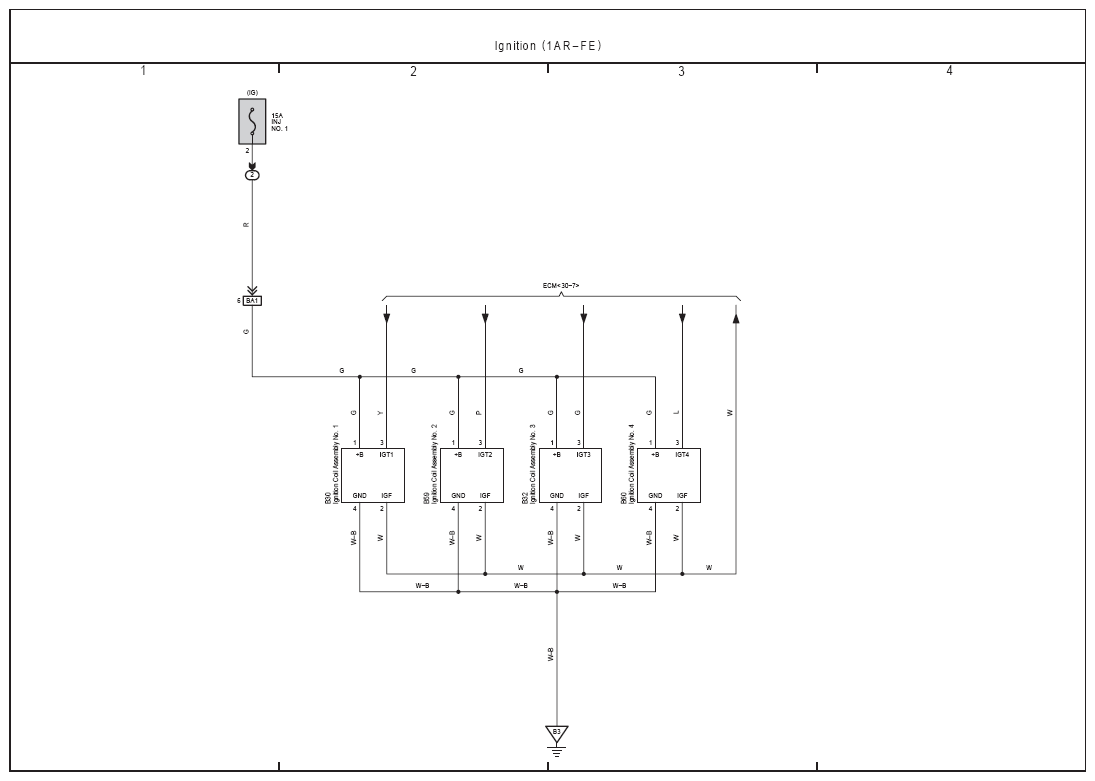

Fig 1: Ignition (1AR-FE) Electrical Wiring Diagram

G09099219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
