Engine Immobiliser System, Steering Lock And Wireless Door Lock Control (W/ Smart Key System) Wiring Diagrams

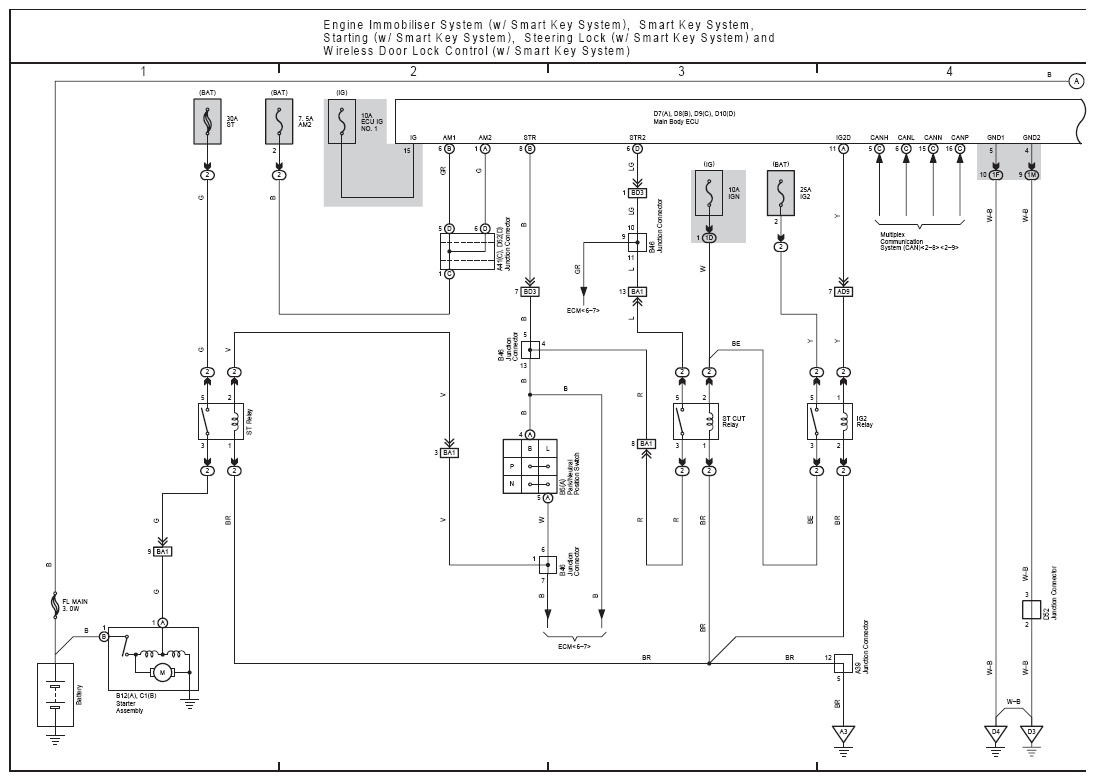

Fig 1: Engine Immobiliser System, Steering Lock And Wireless Door Lock Control (W/ Smart Key System) Electrical Wiring Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

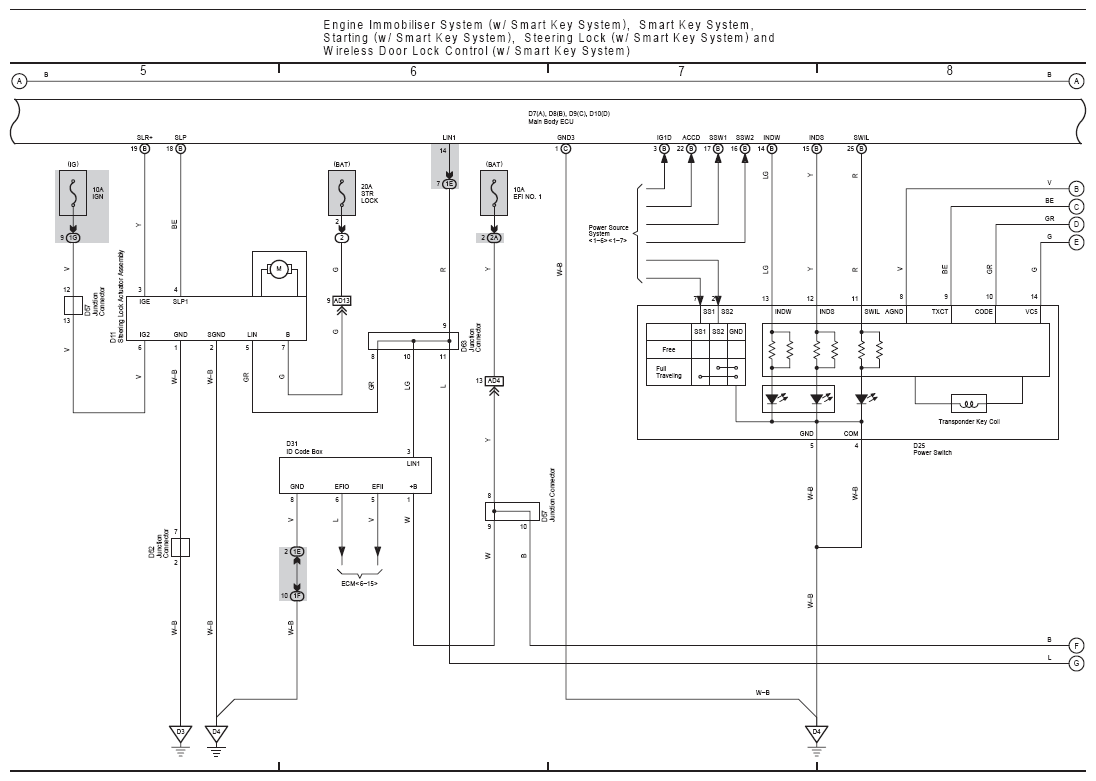

Fig 2: Engine Immobiliser System, Steering Lock And Wireless Door Lock Control (W/ Smart Key System) Electrical Wiring Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

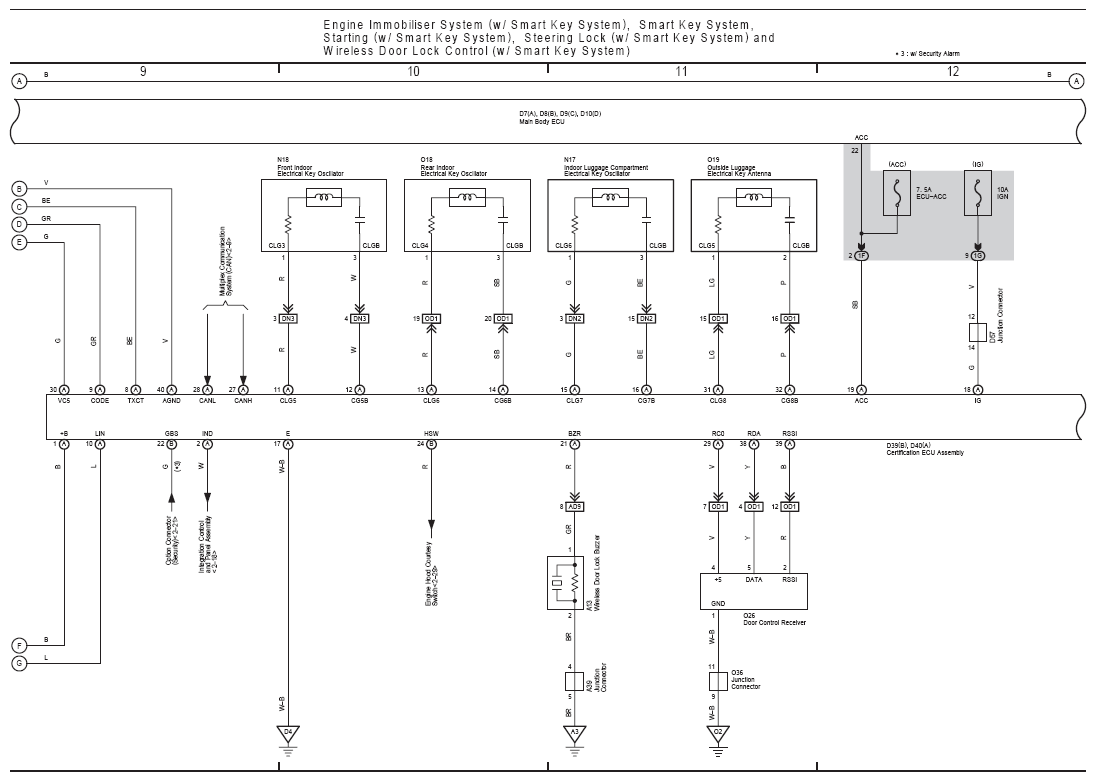

Fig 3: Engine Immobiliser System, Steering Lock And Wireless Door Lock Control (W/ Smart Key System) Electrical Wiring Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

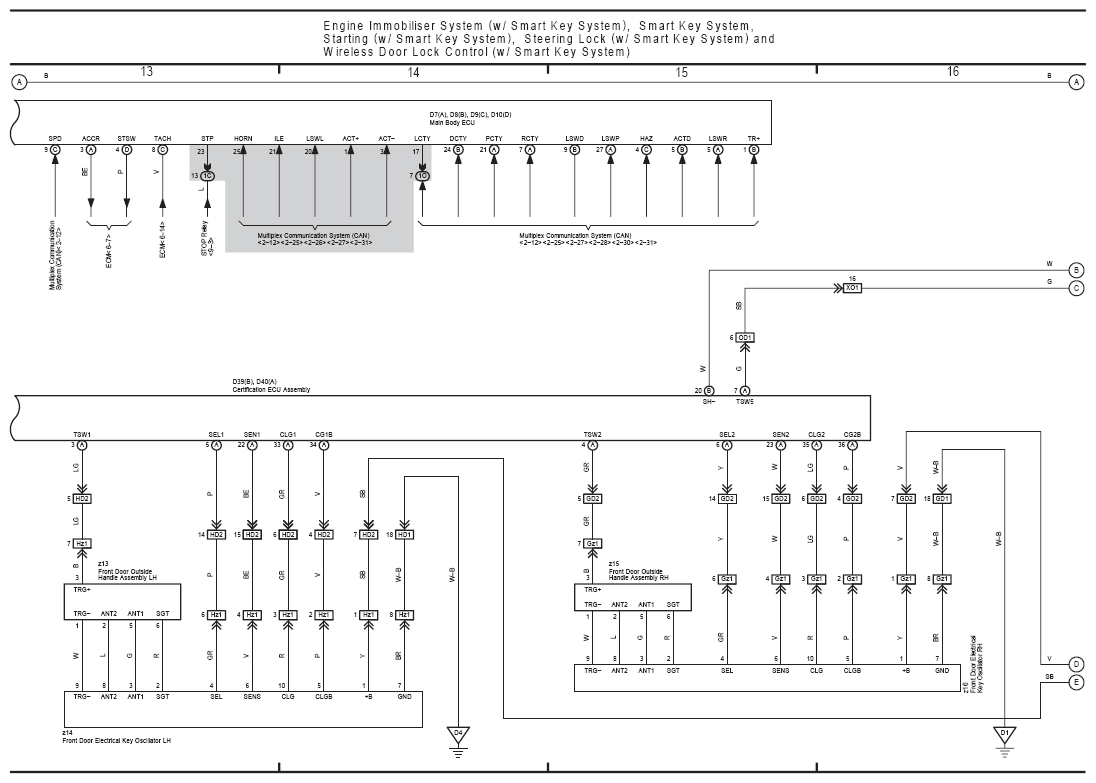

Fig 4: Engine Immobiliser System, Steering Lock And Wireless Door Lock Control (W/ Smart Key System) Electrical Wiring Diagram (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

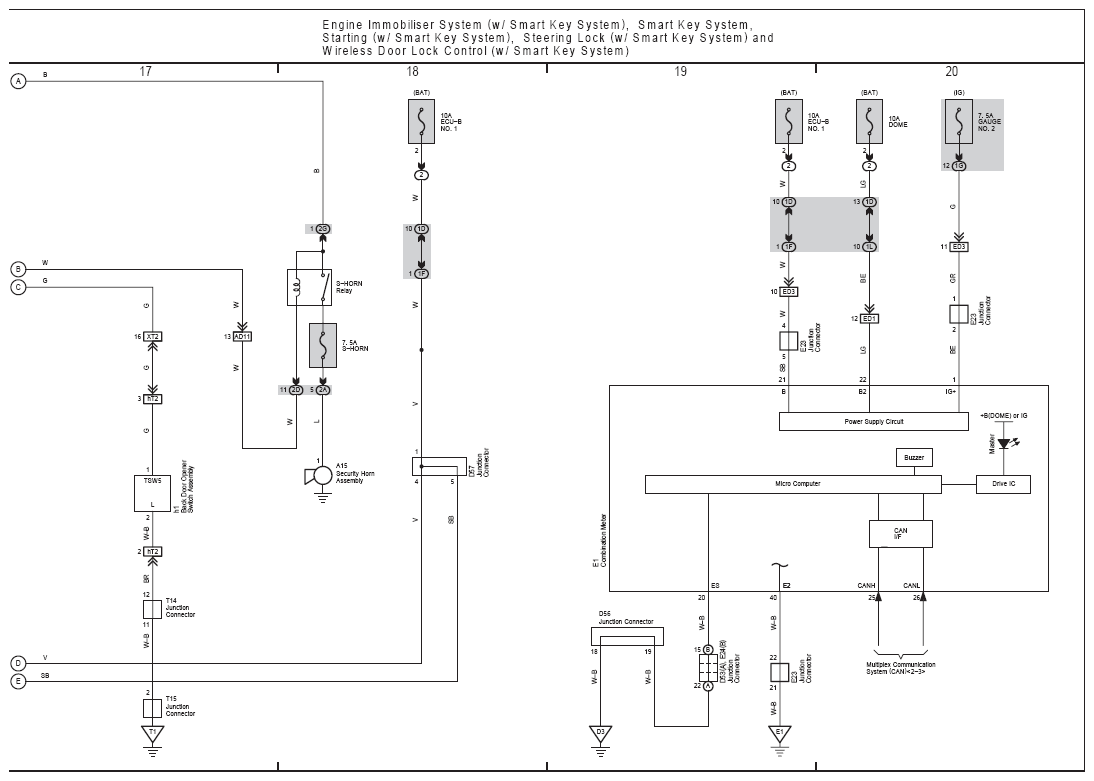

Fig 5: Engine Immobiliser System, Steering Lock And Wireless Door Lock Control (W/ Smart Key System) Electrical Wiring Diagram (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
