Data Link Connector 3 Wiring Diagram

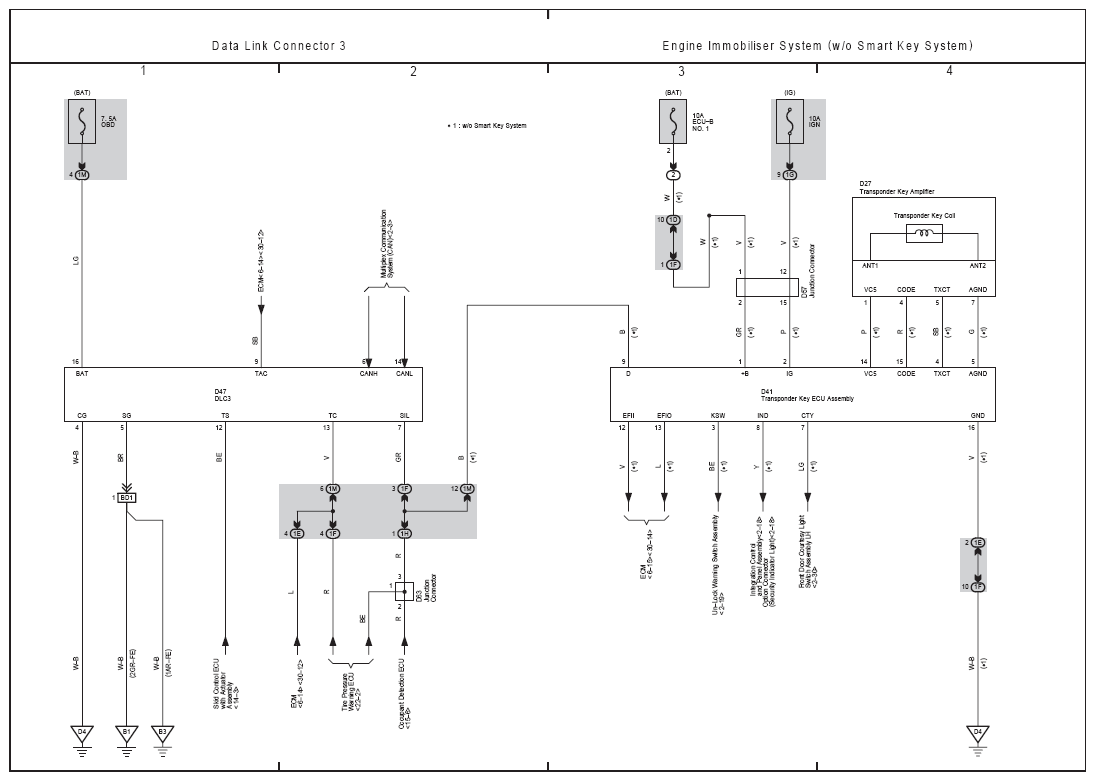

Fig 1: Data Link Connector 3 Electrical Wiring Diagram

G09099184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
