Audio System, Navigation System (Except JBL) And Parking Assist (Rear View Monitor W/Extension Module Except JBL) Wiring Diagrams

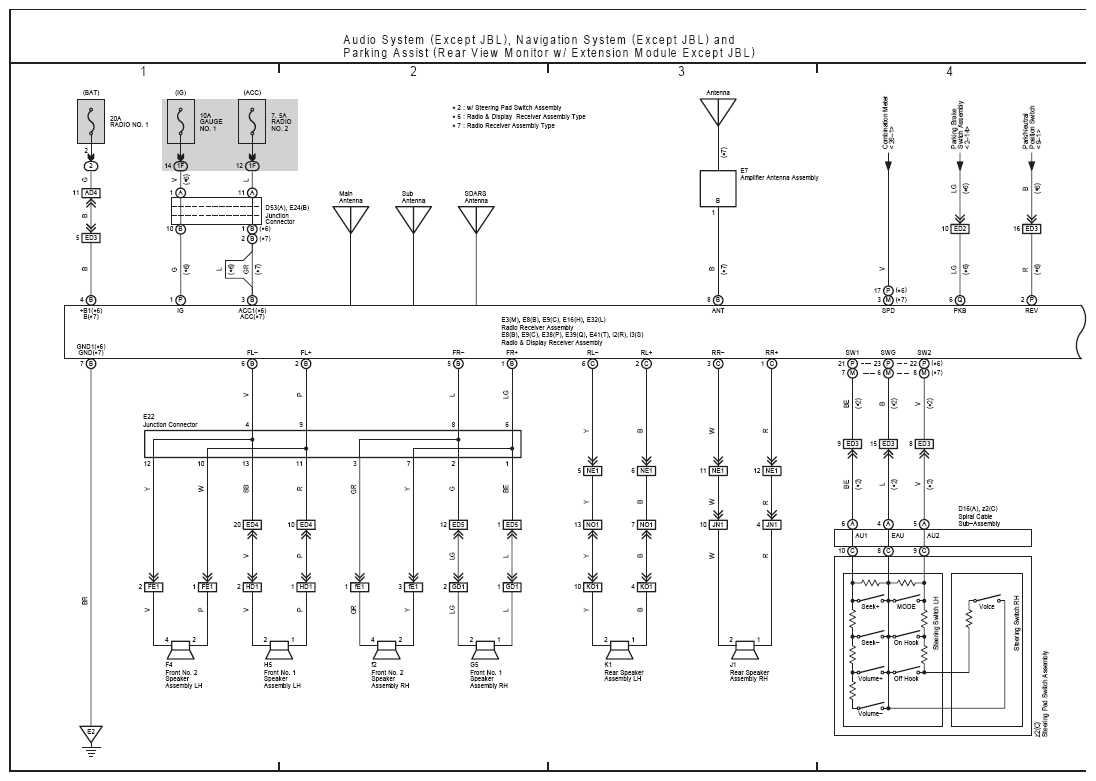

Fig 1: Audio System, Navigation System (Except JBL) And Parking Assist (Rear View Monitor W/Extension Module Except JBL) Electrical Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

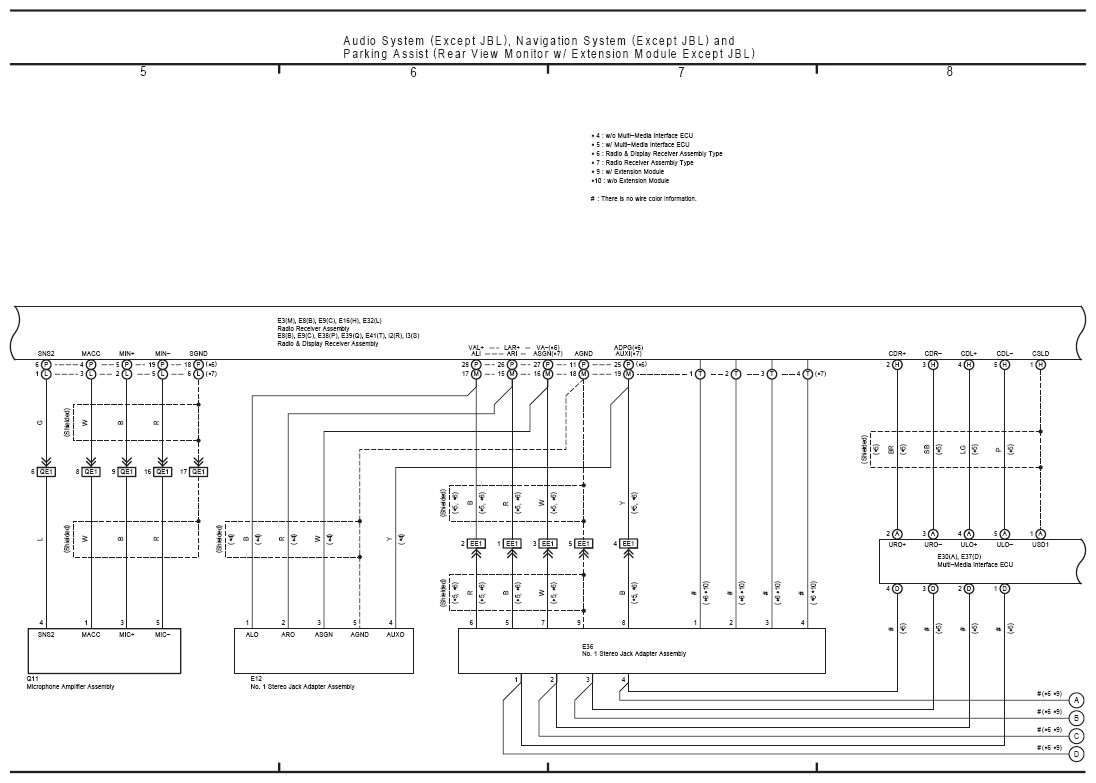

Fig 2: Audio System, Navigation System (Except JBL) And Parking Assist (Rear View Monitor W/Extension Module Except JBL) Electrical Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

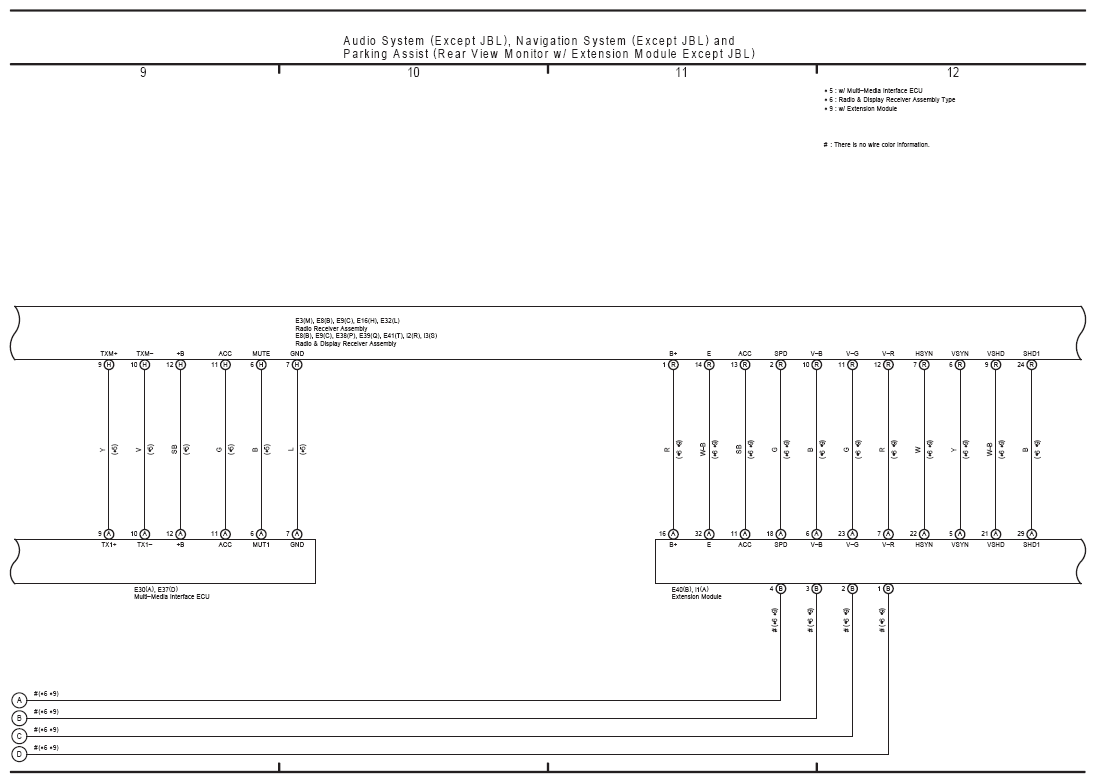

Fig 3: Audio System, Navigation System (Except JBL) And Parking Assist (Rear View Monitor W/Extension Module Except JBL) Electrical Wiring Diagram (3 Of 4)

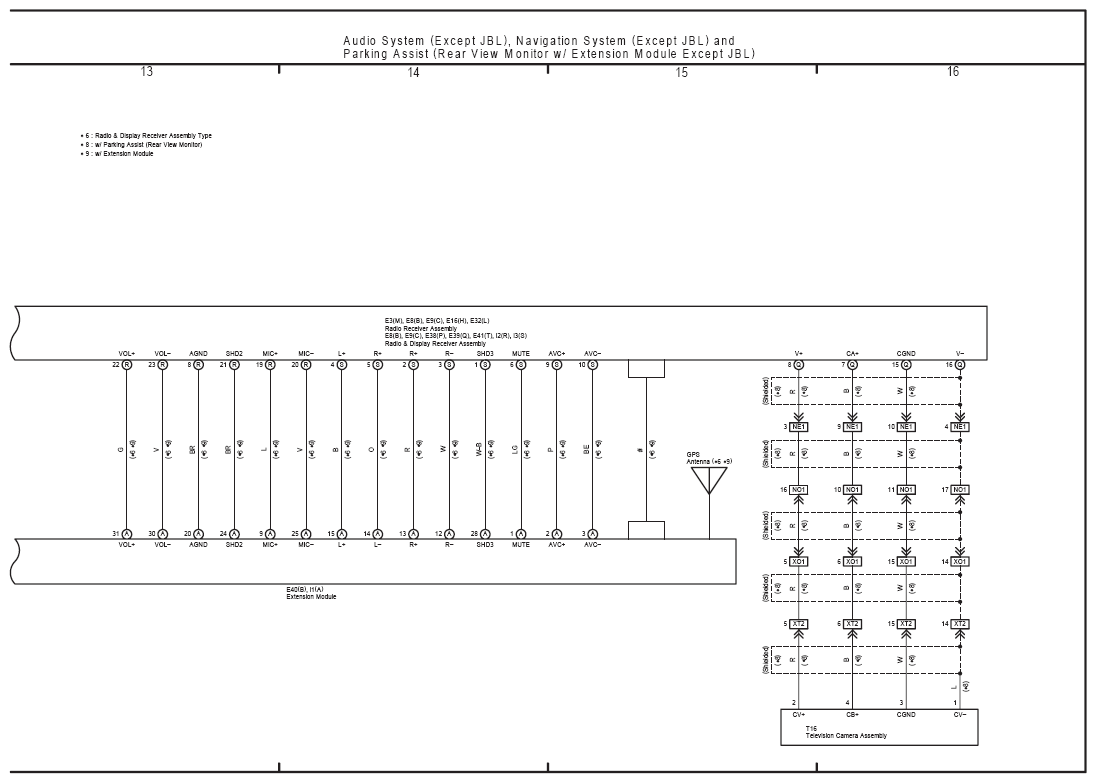

Fig 4: Audio System, Navigation System (Except JBL) And Parking Assist (Rear View Monitor W/Extension Module Except JBL) Electrical Wiring Diagram (4 Of 4)
