Audio System (JBL) Wiring Diagrams

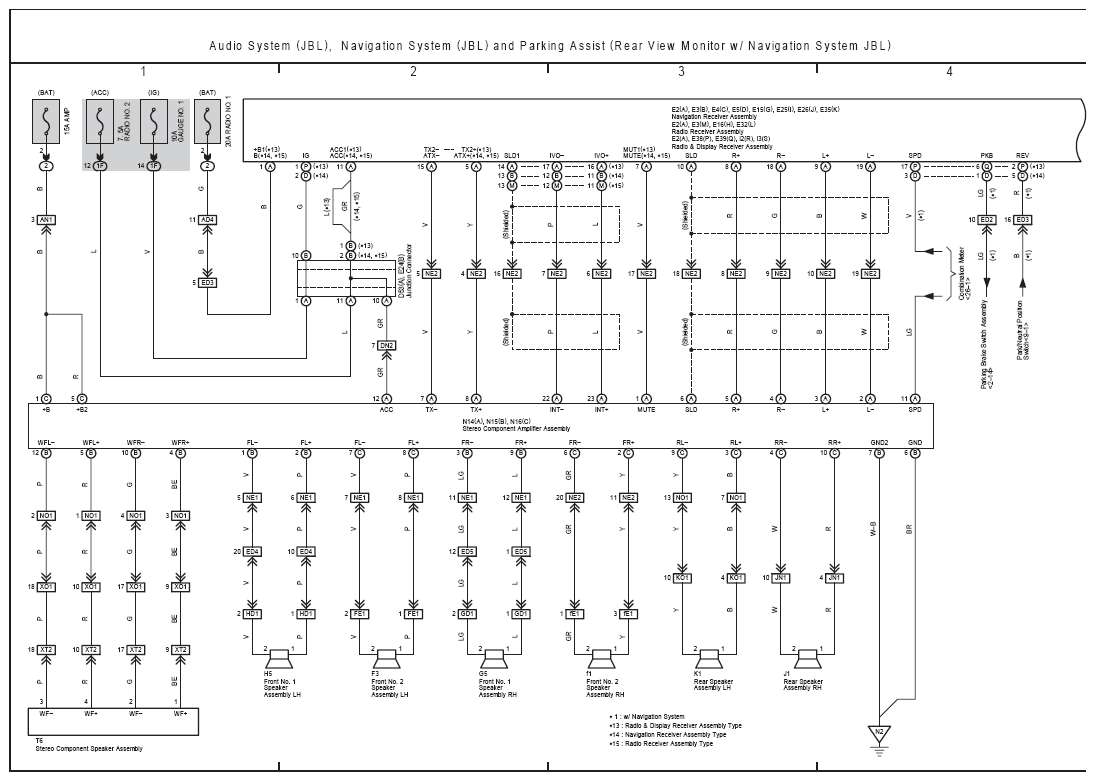

Fig 1: Audio System (JBL) Electrical Wiring Diagram (1 Of 5)
G09099204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

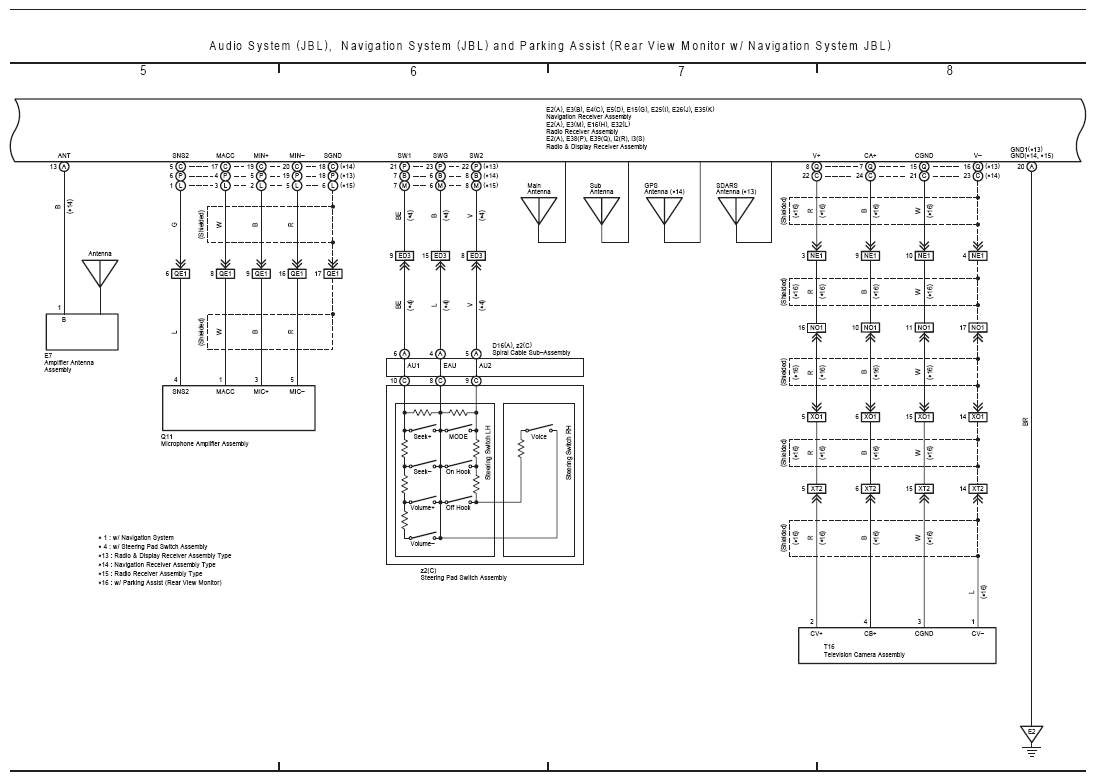

Fig 2: Audio System (JBL) Electrical Wiring Diagram (2 Of 5)
G09099205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

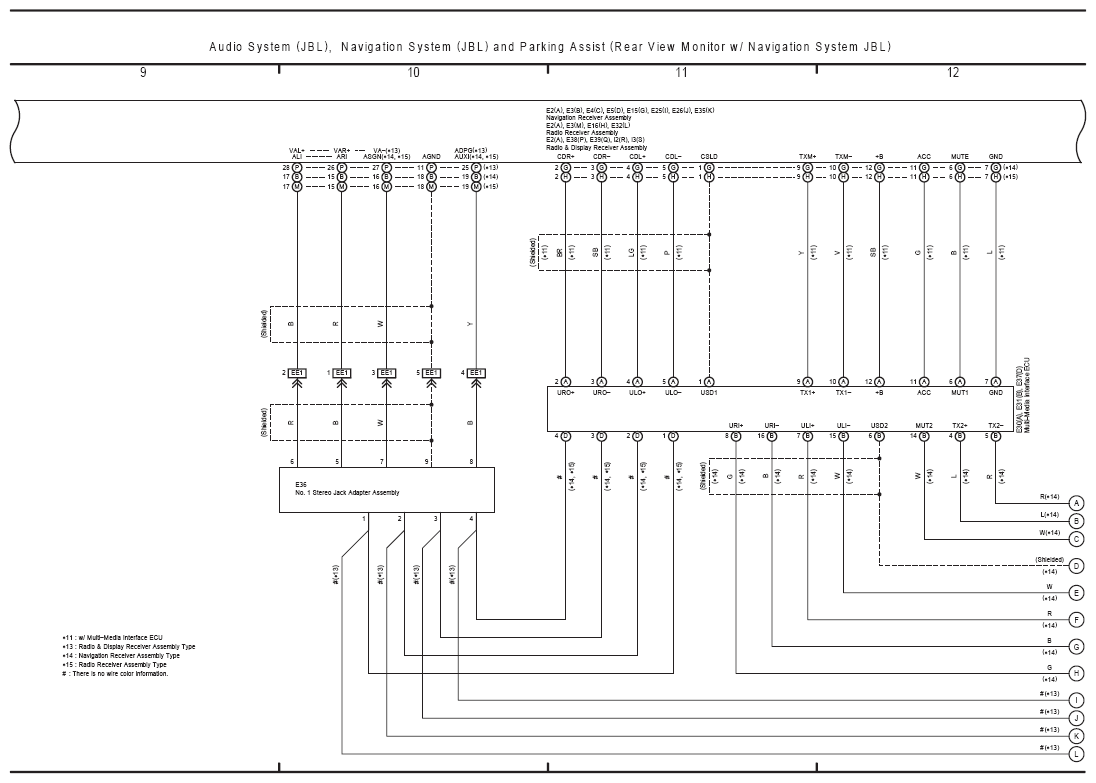

Fig 3: Audio System (JBL) Electrical Wiring Diagram (3 Of 5)
G09099206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

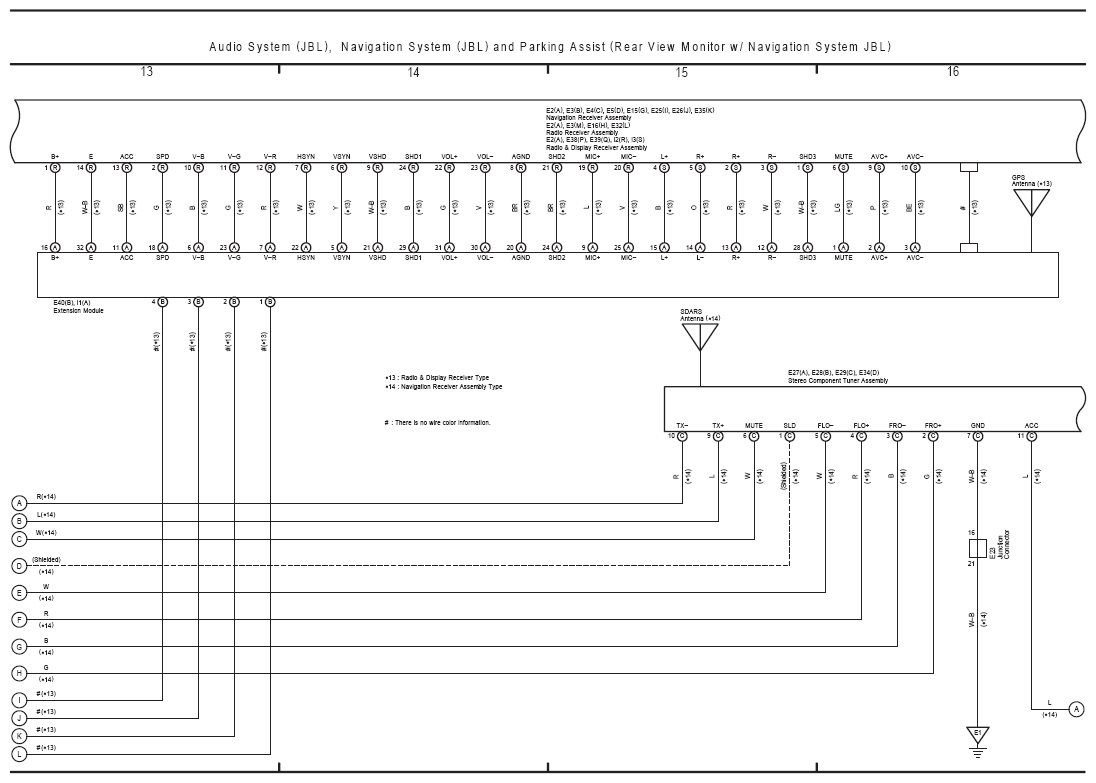

Fig 4: Audio System (JBL) Electrical Wiring Diagram (4 Of 5)
G09099207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

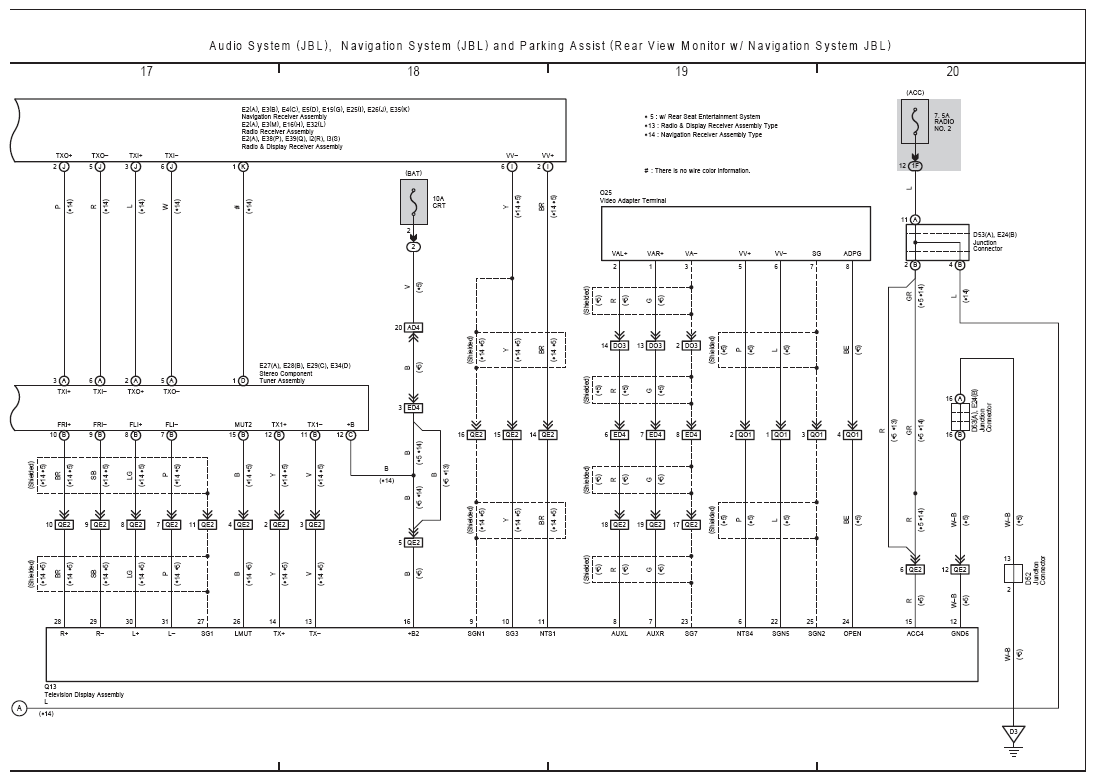

Fig 5: Audio System (JBL) Electrical Wiring Diagram (5 Of 5)
G09099208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
