Combination Meter: Installation: Installation

INSTALL COMBINATION METER ASSEMBLY
1. Connect the connector.
2. Install the combination meter assembly with the 4 screws.

  Fig 1: Locating Combination Meter Assembly Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
1. Engage the 4 claws and 4 clips, and install the instrument cluster finish panel assembly.

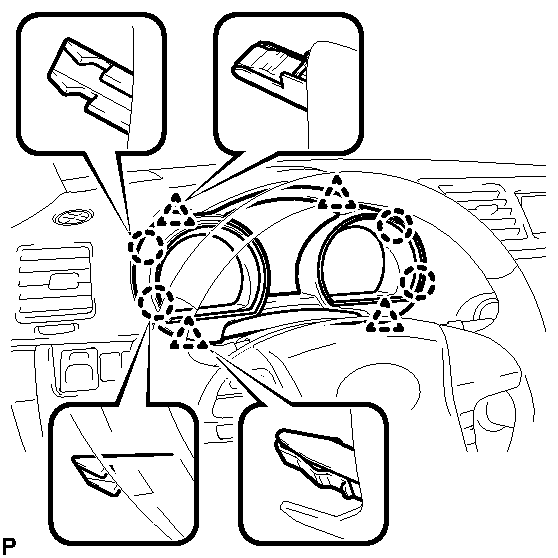

  Fig 2: Identifying Instrument Cluster Finish Panel Assembly Claws And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
