Parts Location: Illustration

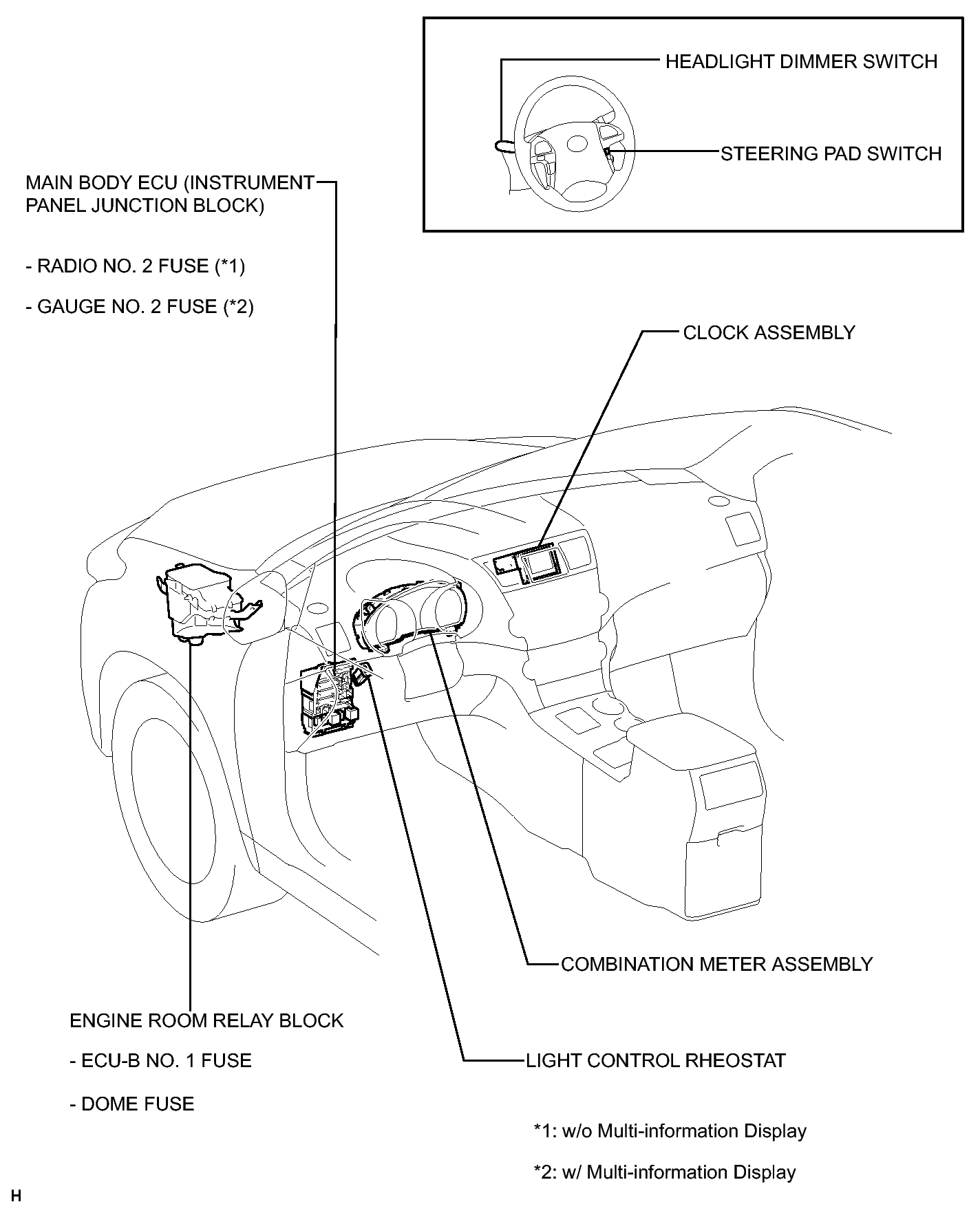

Fig 1: Identifying Meter/Gauge System Parts Location (1 Of 3)
GTY362120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

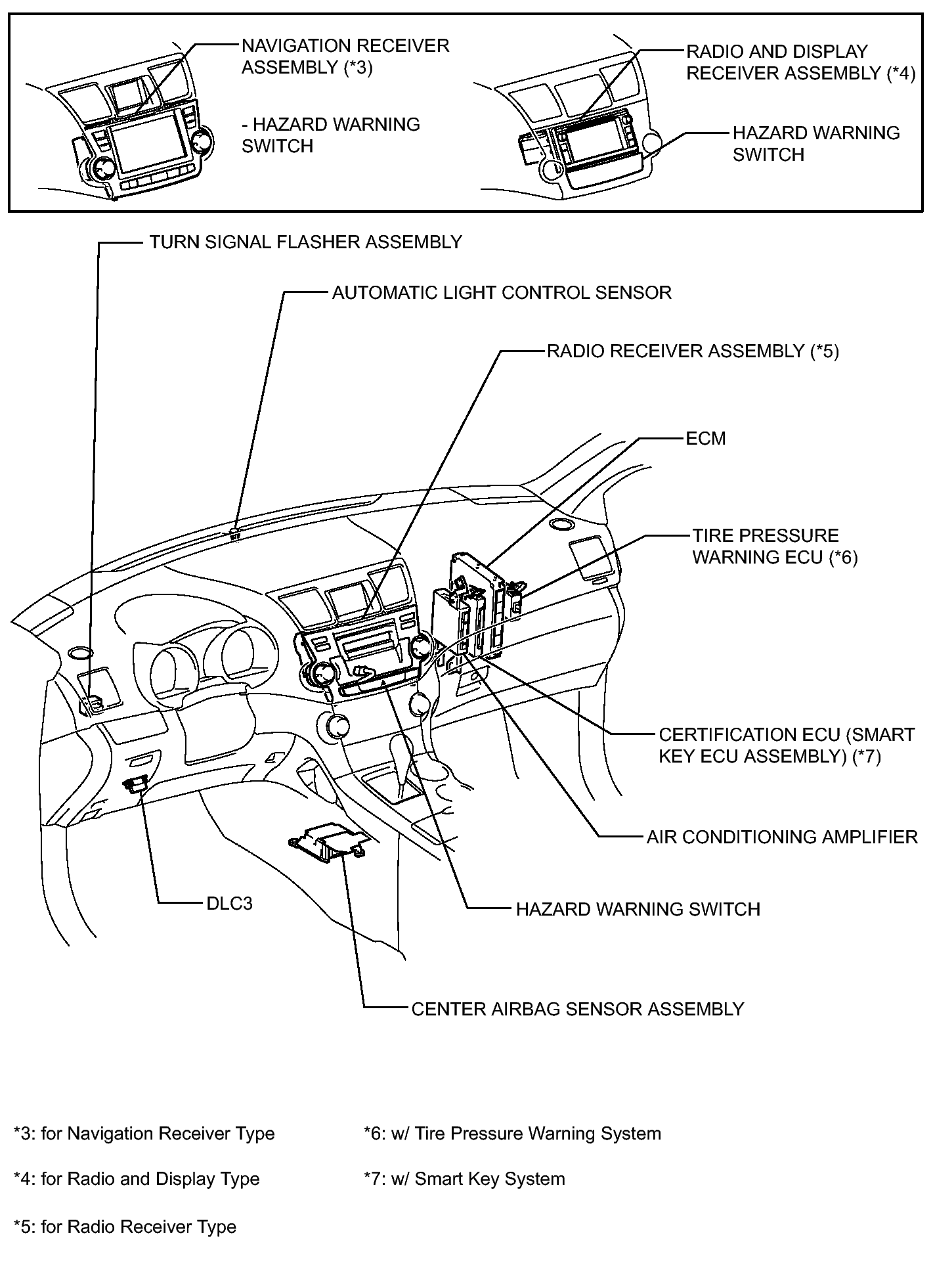

Fig 1: Identifying Meter/Gauge System Parts Location (2 Of 3)
GTY374264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter/Gauge System Parts Location (3 Of 3)
GTY208854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
