Instrument Panel Safety Pad: Disassembly: Disassembly

  1. REMOVE NO. 1 HEATER TO REGISTER DUCT
    1. Remove the 3 screws <I> and the No. 1 heater to register duct.

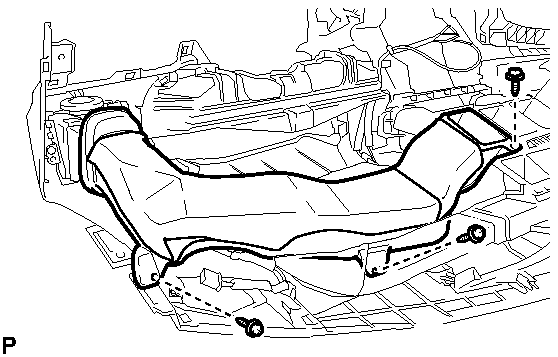

      Fig 1: Identifying No. 1 Heater To Register Duct And Screws
      GTY183193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 4 HEATER TO REGISTER DUCT
    1. Remove the 3 screws <I> and the No. 4 heater to register duct.

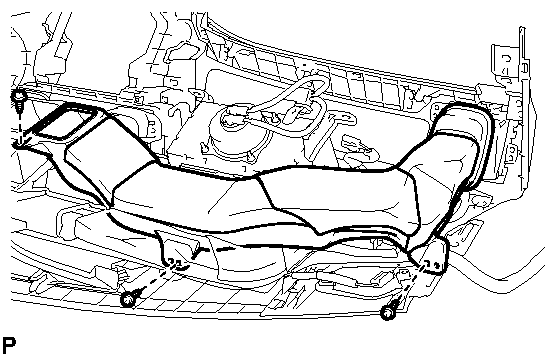

      Fig 2: Identifying No. 4 Heater To Register Duct And Screws
      GTY198771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SIDE NO. 1 DEFROSTER NOZZLE DUCT
    1. Remove the screw <I> and the side No. 1 defroster nozzle duct.

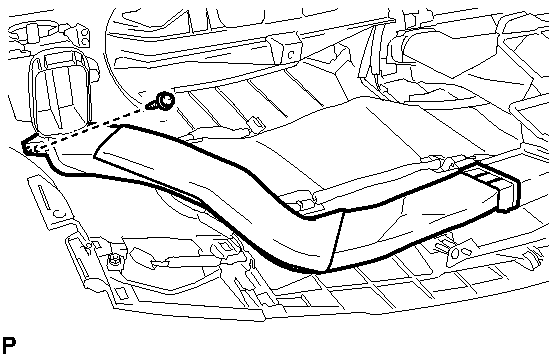

      Fig 3: Identifying No. 1 Defroster Nozzle Duct And Screw
      GTY183901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SIDE NO. 2 DEFROSTER NOZZLE DUCT
    1. Remove the screw <I> and the side No. 2 defroster nozzle duct.

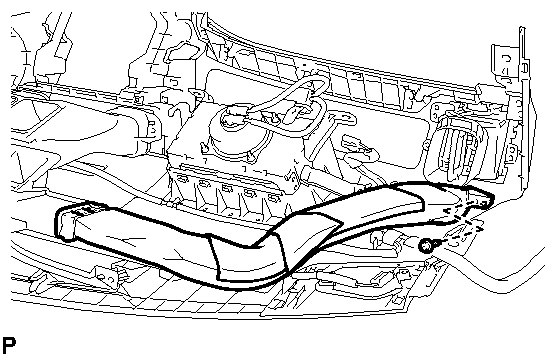

      Fig 4: Identifying No. 2 Defroster Nozzle Duct And Screw
      GTY184382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE DEFROSTER NOZZLE ASSEMBLY
    1. Remove the clip.

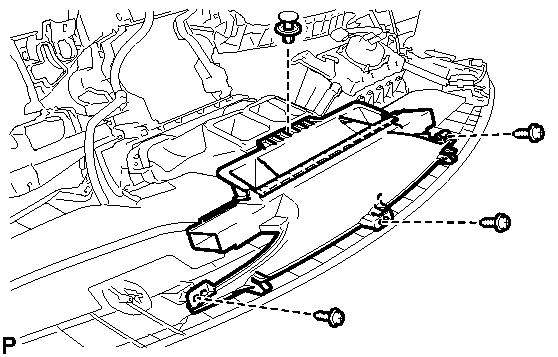

      Fig 5: Identifying Defroster Nozzle Assembly And Screws
      GTY199181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws <F> and the defroster nozzle assembly.
  6. REMOVE CENTER HEATER TO REGISTER SUB DUCT
    1. Remove the 2 screws <I> and the center heater to register sub duct.

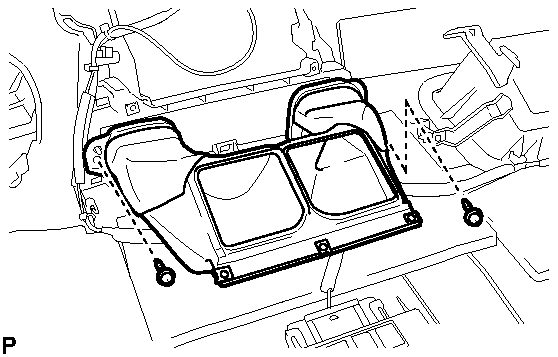

      Fig 6: Identifying Center Heater To Register Sub Duct And Screws
      GTY184242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Remove the 3 screws <I> and the No. 1 instrument panel register assembly.

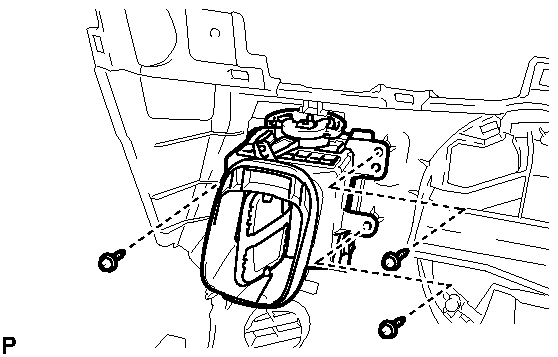

      Fig 7: Identifying No. 1 Instrument Panel Register Assembly And Screws
      GTY198772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Remove the 3 screws <I> and the No. 2 instrument panel register assembly.

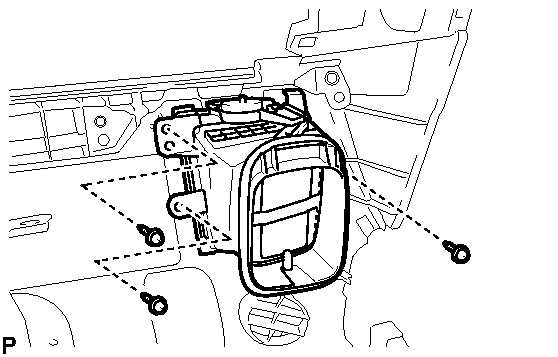

      Fig 8: Identifying No. 2 Instrument Panel Register Assembly And Screws
      GTY168581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NAVIGATION ANTENNA ASSEMBLY  . Refer to REMOVAL - Step 8
  10. REMOVE ANTENNA CORD SUB-ASSEMBLY (for Pole Antenna Type)  . Refer to REMOVAL - Step 8
  11. REMOVE ANTENNA CORD SUB-ASSEMBLY (for Glass Antenna Type)  . Refer to REMOVAL - Step 9
  12. REMOVE NO. 4 INSTRUMENT PANEL WIRE
    1. Disconnect the connector.

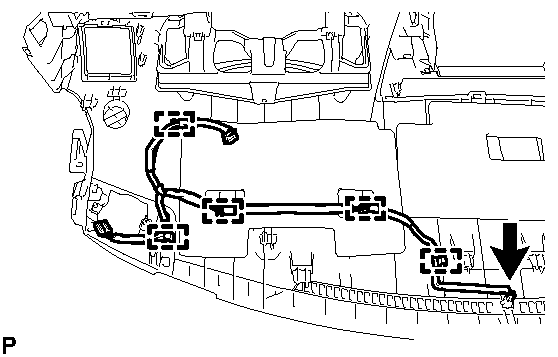

      Fig 9: Identifying No. 4 Instrument Panel Wire Clamps & Connector
      GTY168723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 clamps and remove the No. 4 instrument panel wire.
  13. REMOVE COOLER SWITCH HOLE COVER (w/o Automatic Light Control System)
    1. Disengage the 2 claws and remove the cooler switch hole cover.

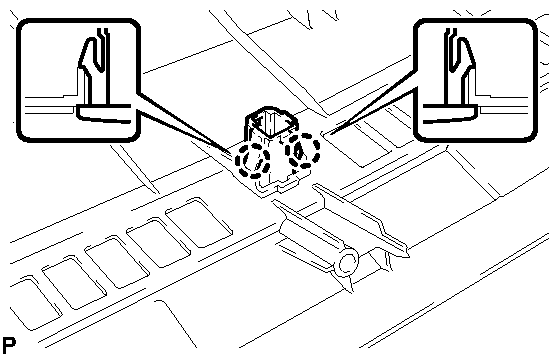

      Fig 10: Identifying Cooler Switch Hole Cover Claws
      GTY178720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE AUTOMATIC LIGHT CONTROL SENSOR (w/ Automatic Light Control System)  . Refer to REMOVAL - Step 7
  15. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY  . Refer to REMOVAL - Step 7
