System Diagram

  1. CAN and direct line signals
    1. w/o Multi-information Display:

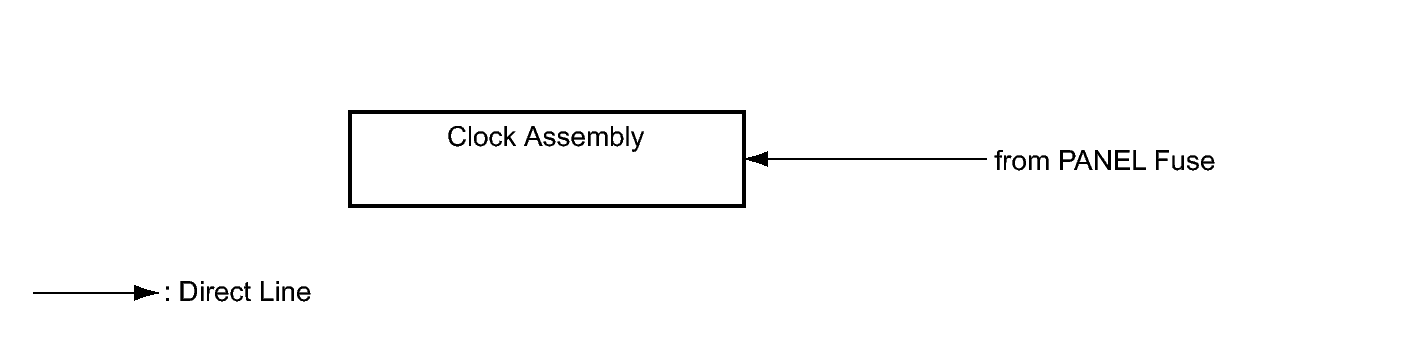

      Fig 1: Clock System Diagram (W/O Multi-Information Display)
      GTY362741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Multi-information Display:

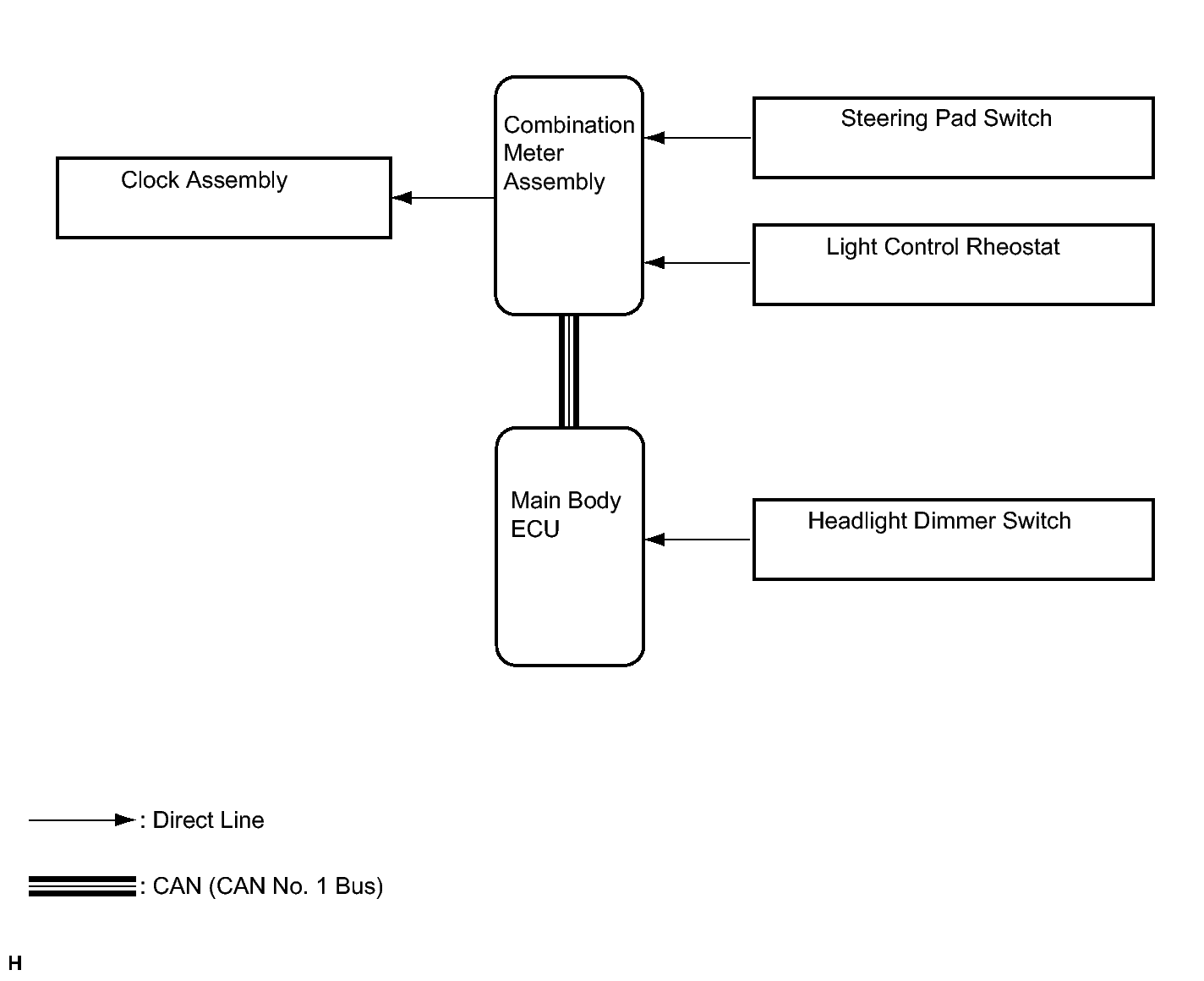

      Fig 2: Clock System Diagram (W/Multi-Information Display)
      GTY181303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Input and output signals of the clock assembly
    1. w/ Multi information Display:
      Communication Signal Sender Receiver Communication Line
      Rheostat duty signal Combination Meter Assembly
      • Main Body ECU
      • A/C Control Amplifier
      		 CAN (CAN No. 1 Bus)
      Tail cancel signal
