Parts Location: Illustration

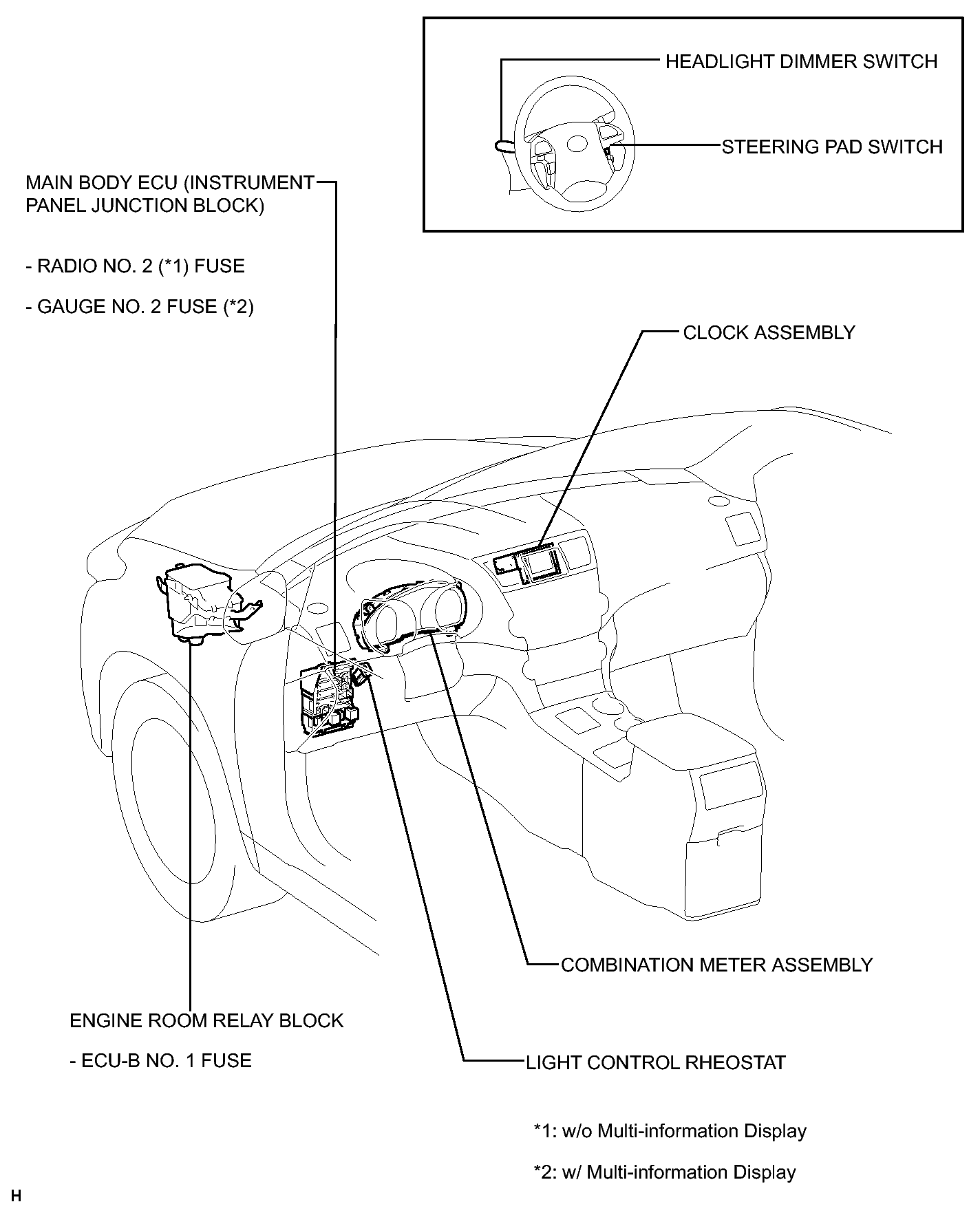

Fig 1: Identifying Clock System Components Location
GTY362119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
