Power Source Circuit: Wiring Diagram

  1. w/o Multi-information Display

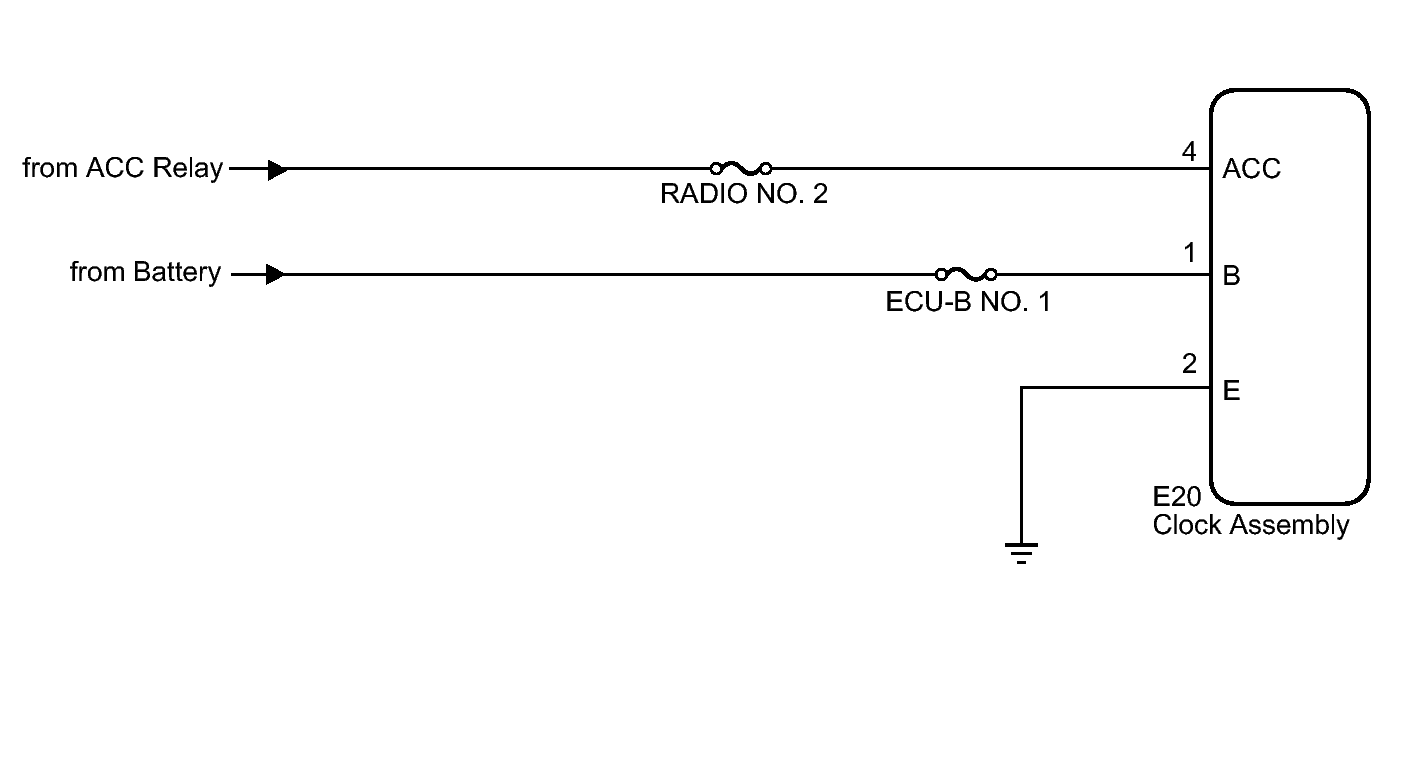

    Fig 1: Clock Assembly Wiring Diagram (W/O Multi-Information Display)
    GTY366401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. w/ Multi-information Display

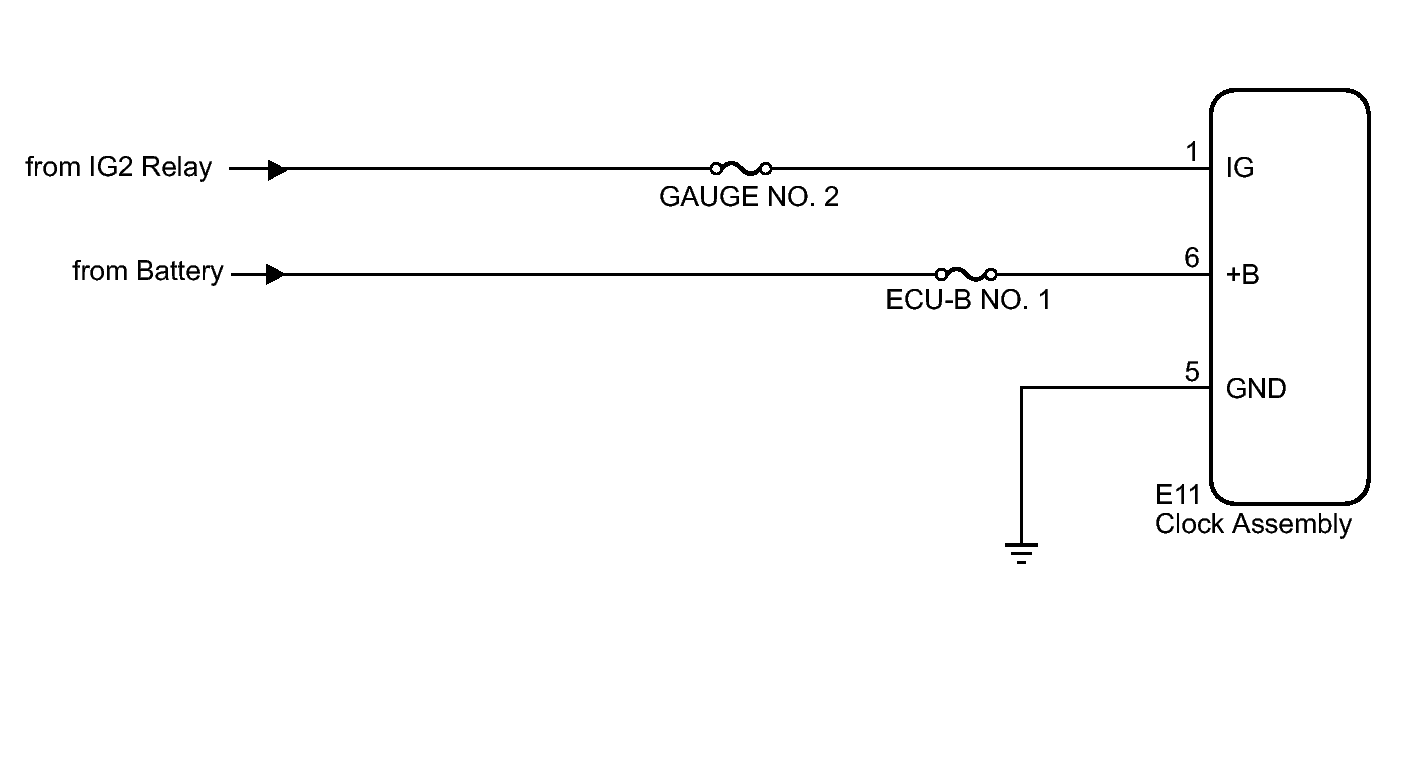

    Fig 2: Clock Assembly Wiring Diagram (W/ Multi-Information Display)
    GTY366390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
