Display Signal Circuit between Video Terminal and Television Display: Wiring Diagram

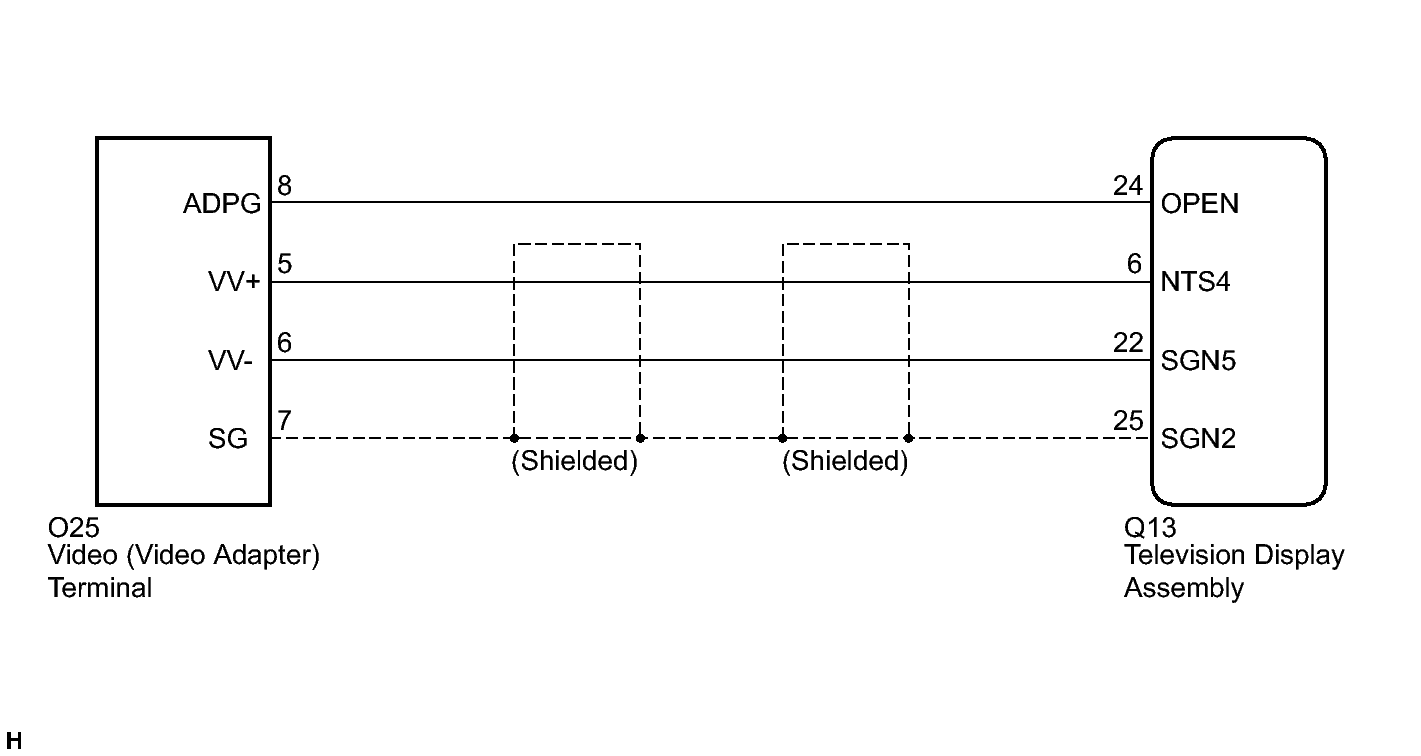

Fig 1: Display Signal Circuit Between Video Terminal And Television Display - Wiring Diagram
GTY363076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
