Rear Stabilizer Bar: Components: Illustration

Fig 1: Identifying Rear Stabilizer Bar Replacement Components With Torque Specifications (1 Of 2)
GTY380408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

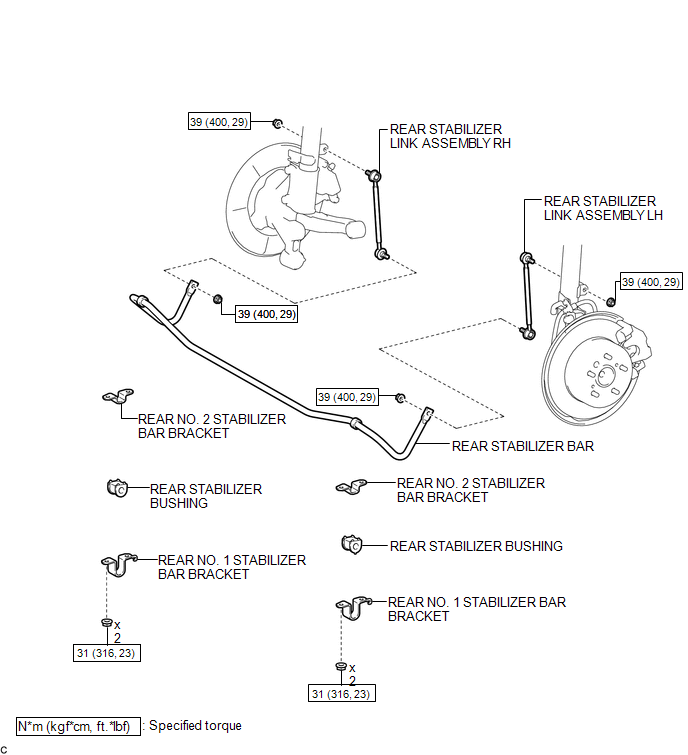

Fig 1: Identifying Rear Stabilizer Bar Replacement Components With Torque Specifications (2 Of 2)
GTY362846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
