Rear Shock Absorber: Components: Illustration

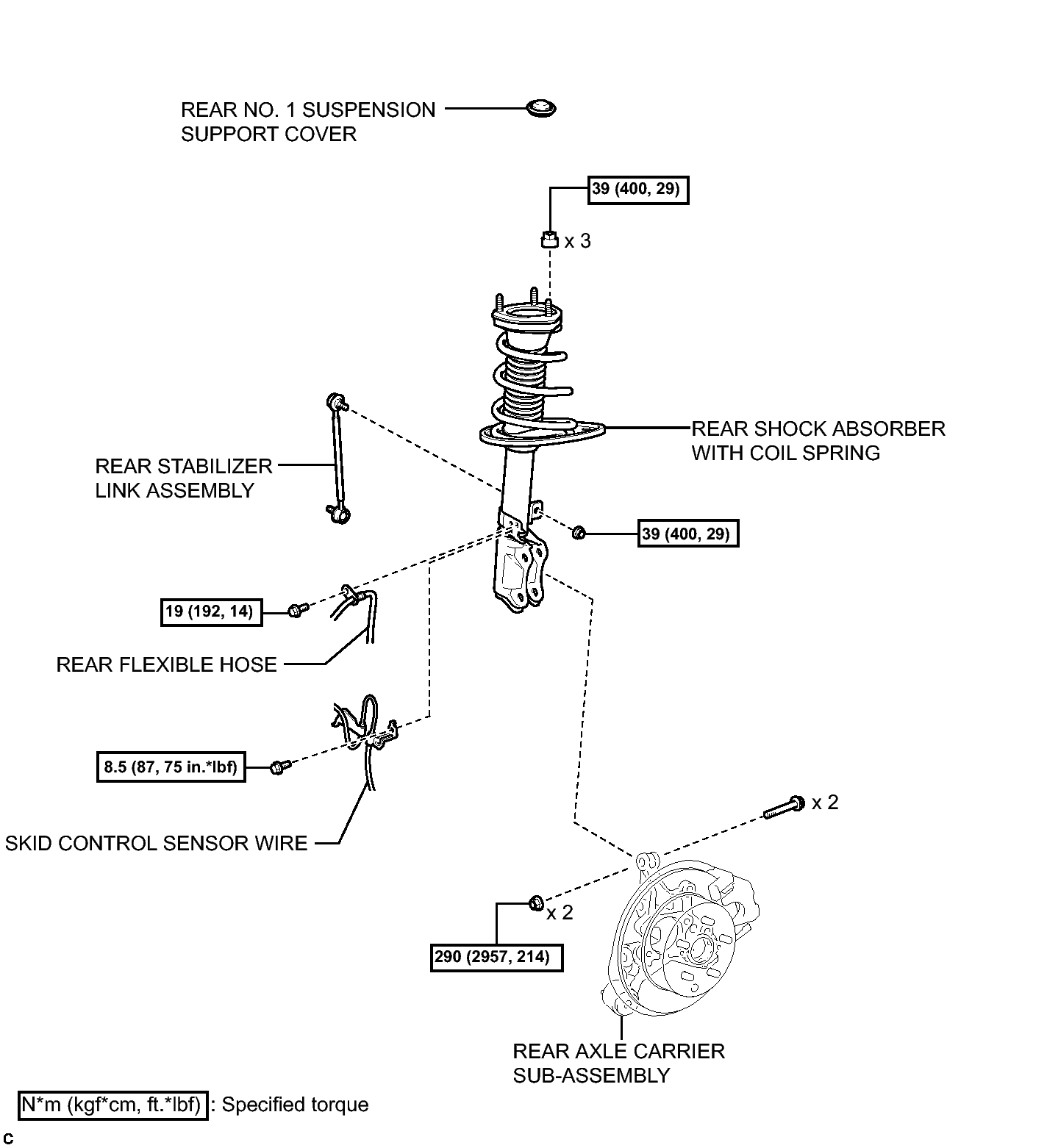

Fig 1: Identifying Rear Shock Absorber Replacement Components With Torque Specifications (1 Of 2)
GTY363689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

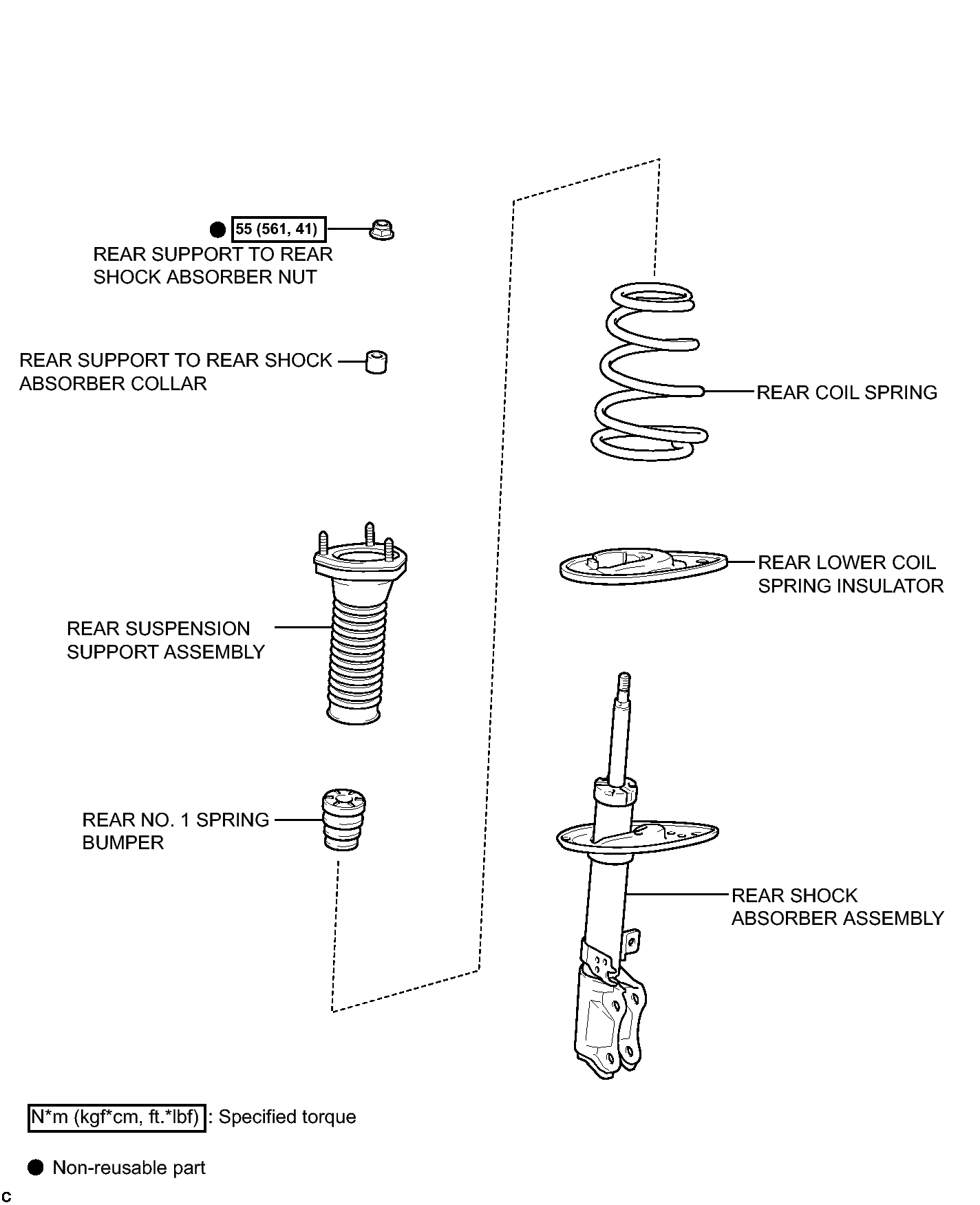

Fig 1: Identifying Rear Shock Absorber Replacement Components With Torque Specifications (2 Of 2)
GTY372594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
