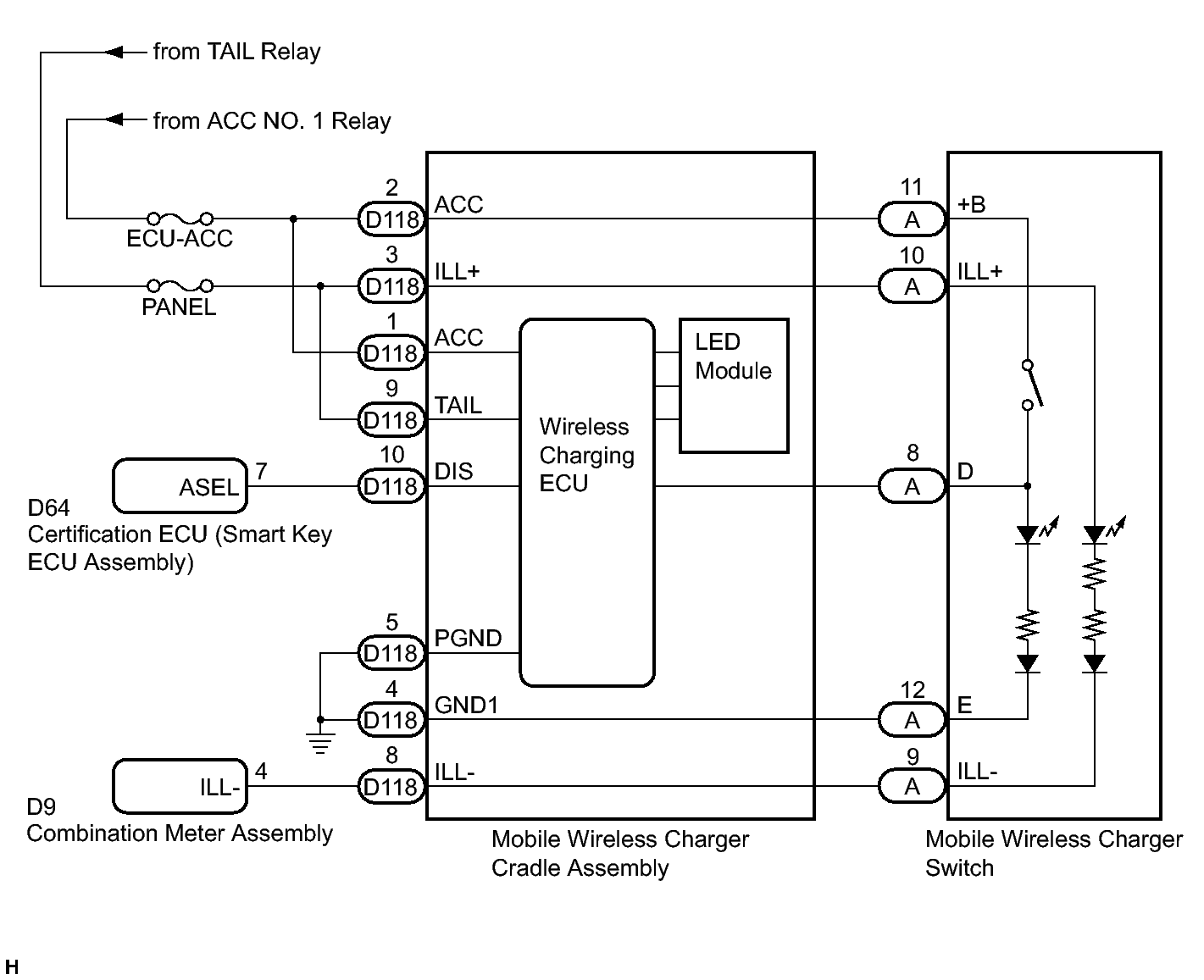

Home >> Toyota >> 2013 >> Avalon XLE >> Repair and Diagnosis >> Electrical >> Motors, Switches, Relays >> Wireless Charging System (Diagnostics & Circuit Tests) (Except Hybrid) >> Wireless Charging System >> System Diagram >> System Diagram
