Wireless Charger Main Switch: Components: Illustration

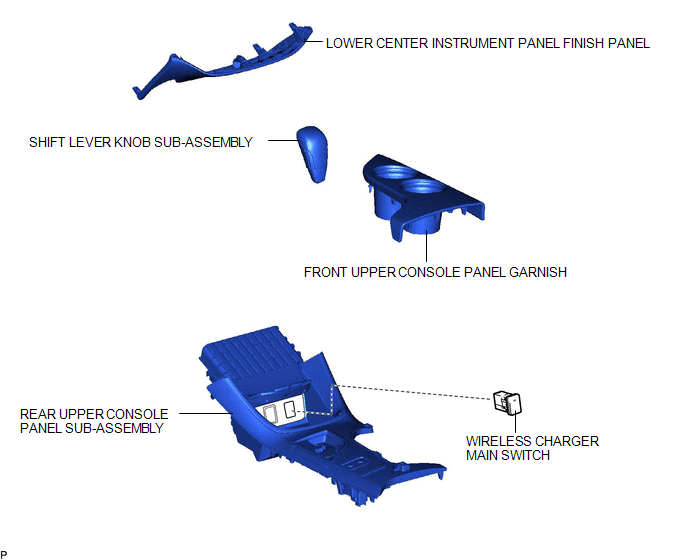

Fig 1: Identifying Wireless Charger Main Switch Replacement Components

GTY376083

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
