Wireless Charger Assembly: Components: Illustration

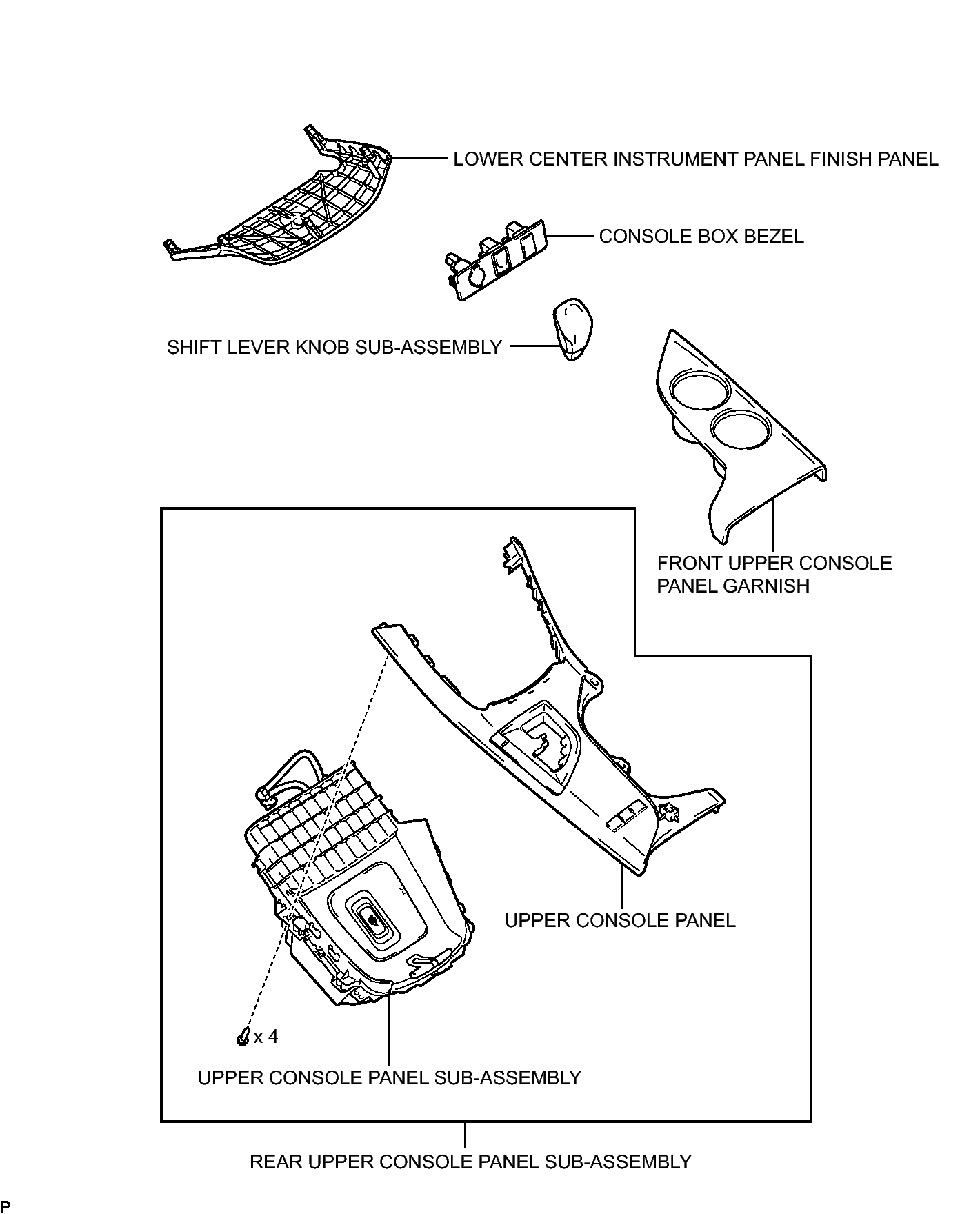

Fig 1: Identifying Wireless Charger Assembly Replacement Components (1 Of 2)
GTY365868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

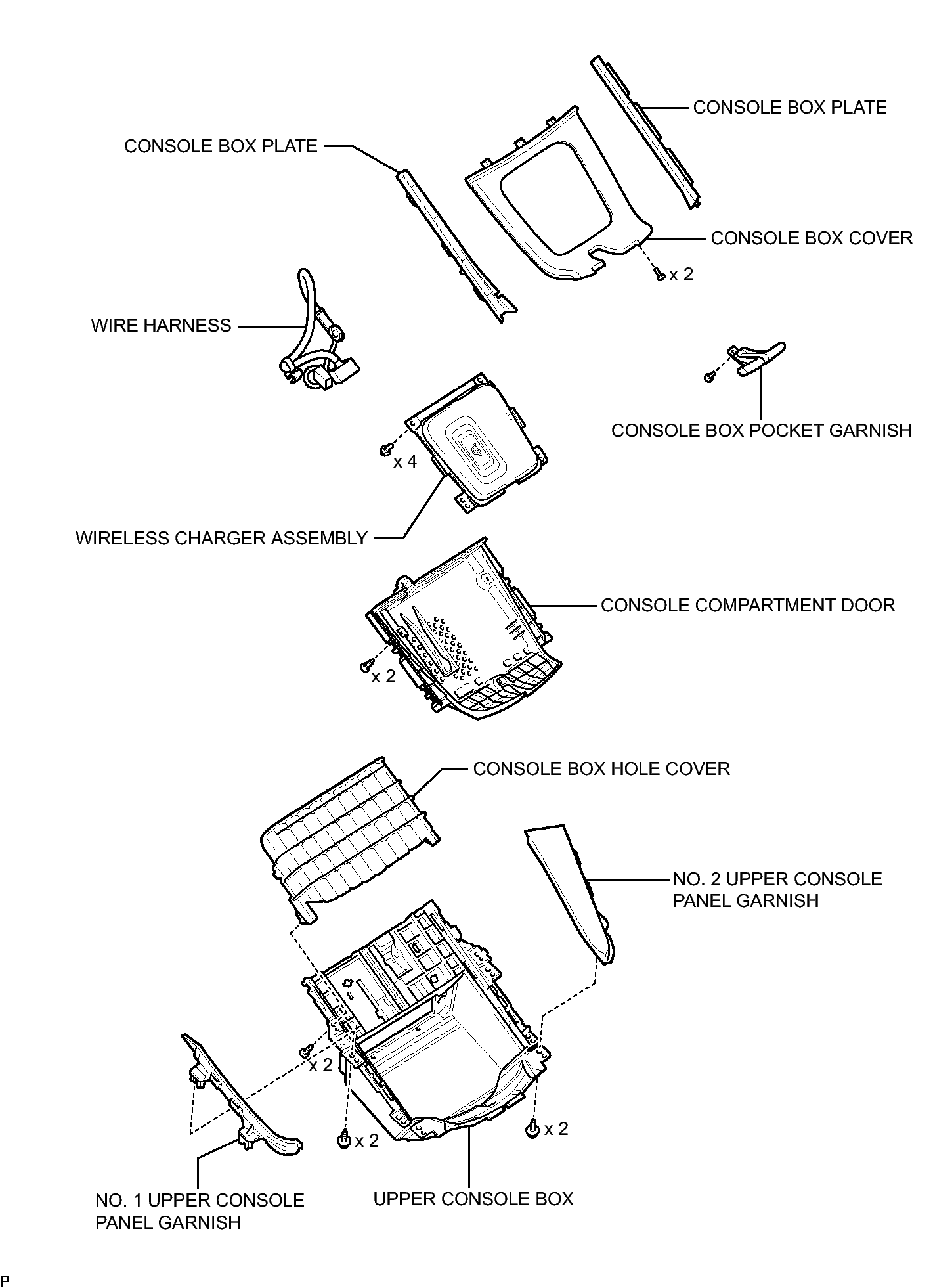

Fig 1: Identifying Wireless Charger Assembly Replacement Components (2 Of 2)
GTY367765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
