Rear Brake: Components: Illustration

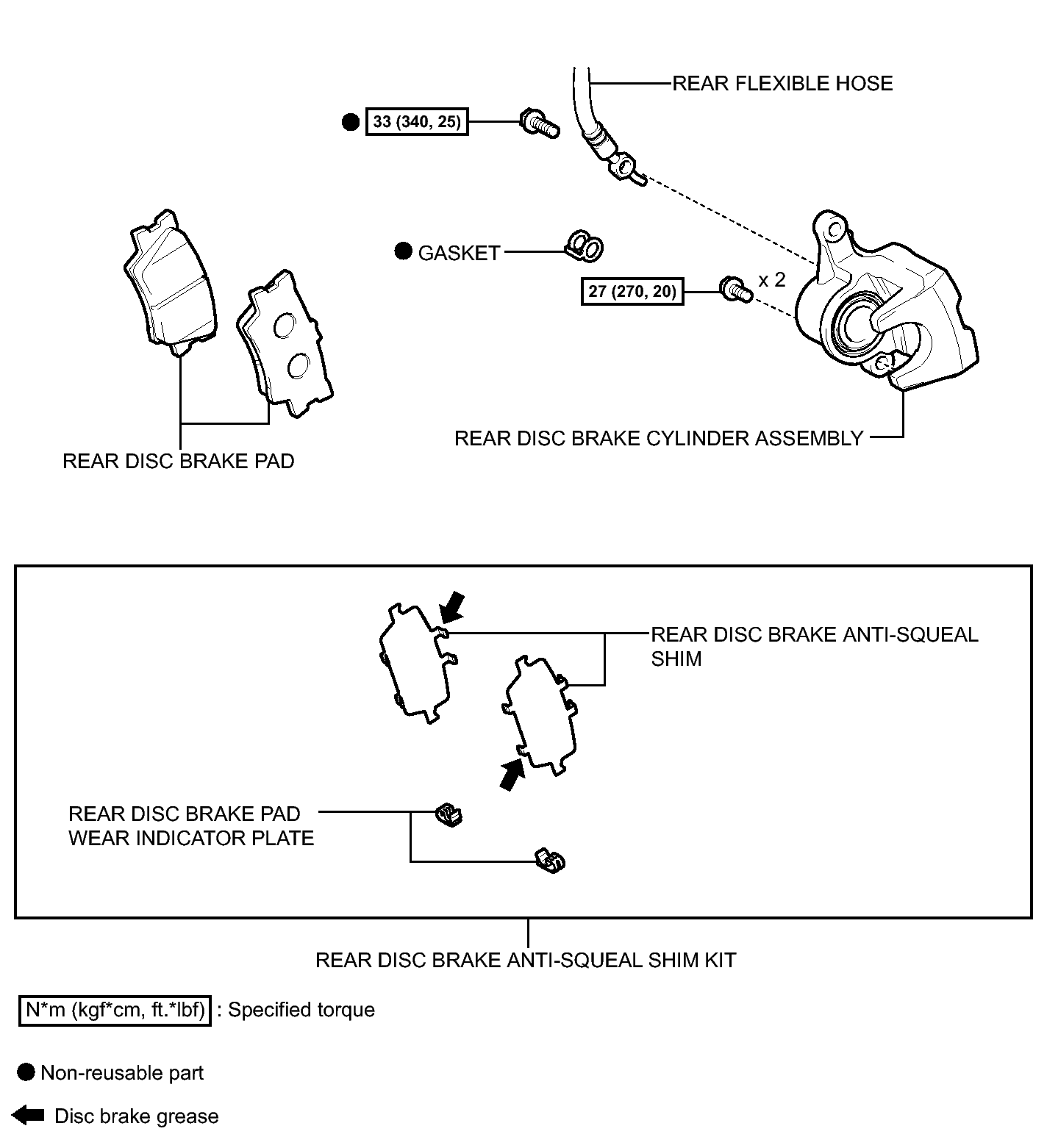

Fig 1: Identifying Rear Brake Replacement Components Location With Torque Specifications (1 Of 3)
GTY372564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

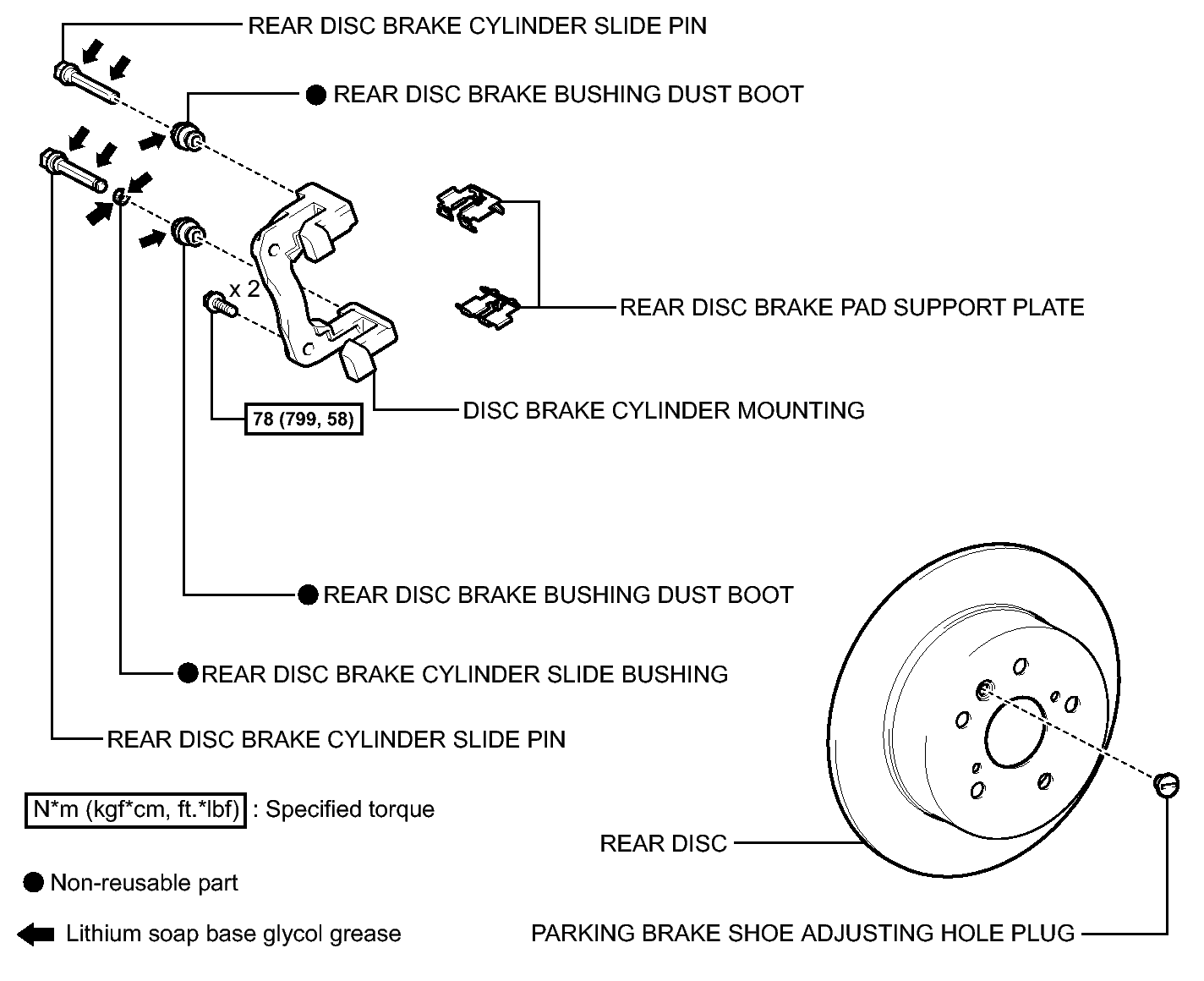

Fig 1: Identifying Rear Brake Replacement Components Location With Torque Specifications (2 Of 3)
GTY368381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Rear Brake Replacement Components Location With Torque Specifications (3 Of 3)
GTY376804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
