Brake Pedal: Components: Illustration

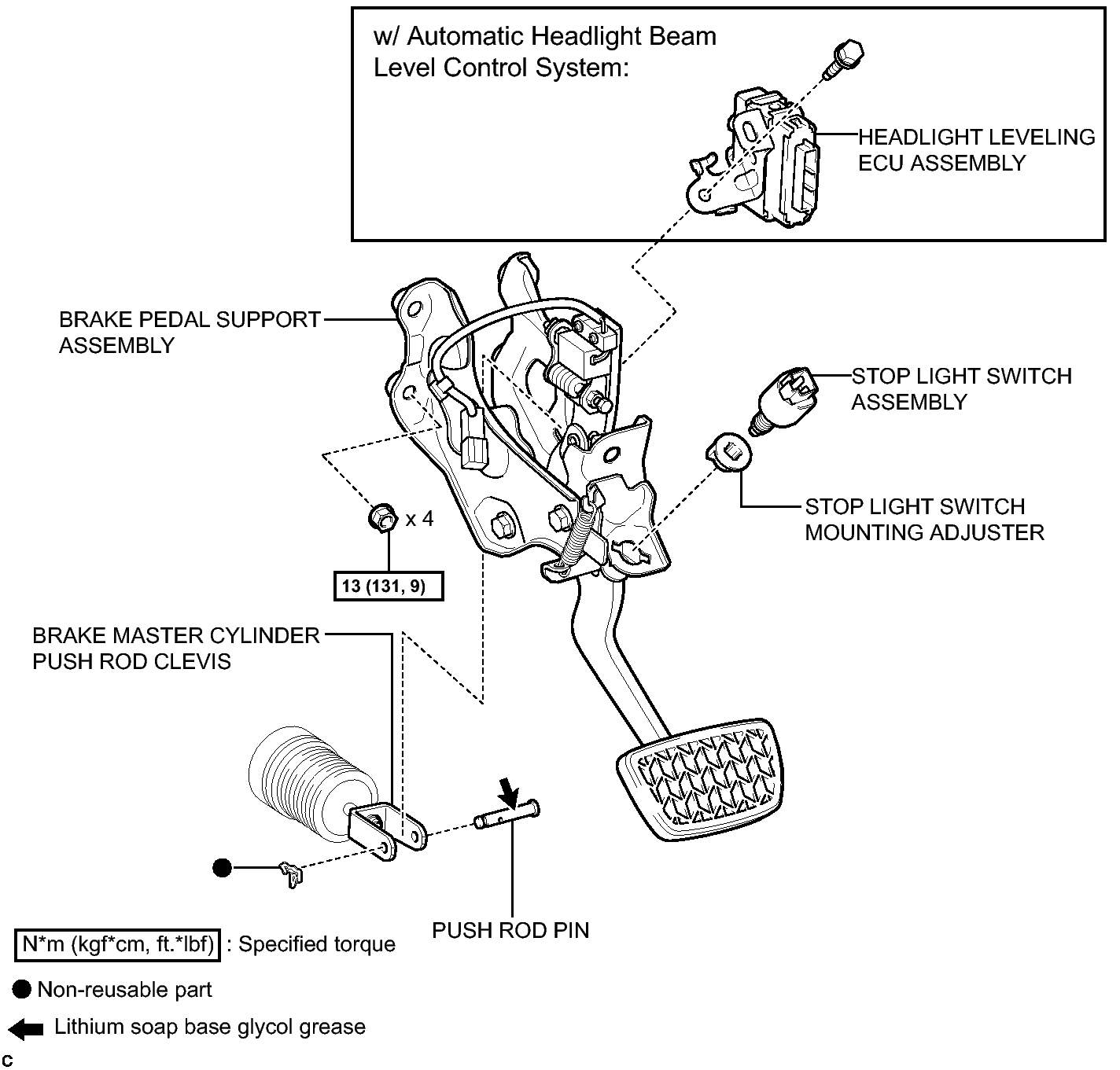

Fig 1: Identifying Brake Pedal Replacement Components Location With Torque Specifications (1 Of 2)
GTY382463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Brake Pedal Replacement Components Location (2 Of 2)
GTY319877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
