Brake Master Cylinder: Components: Illustration

Fig 1: Identifying Brake Master Cylinder Replacement Components Location With Torque Specifications (1 Of 4)
GTY321976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Brake Master Cylinder Replacement Components Location With Torque Specifications (2 Of 4)
GTY377964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


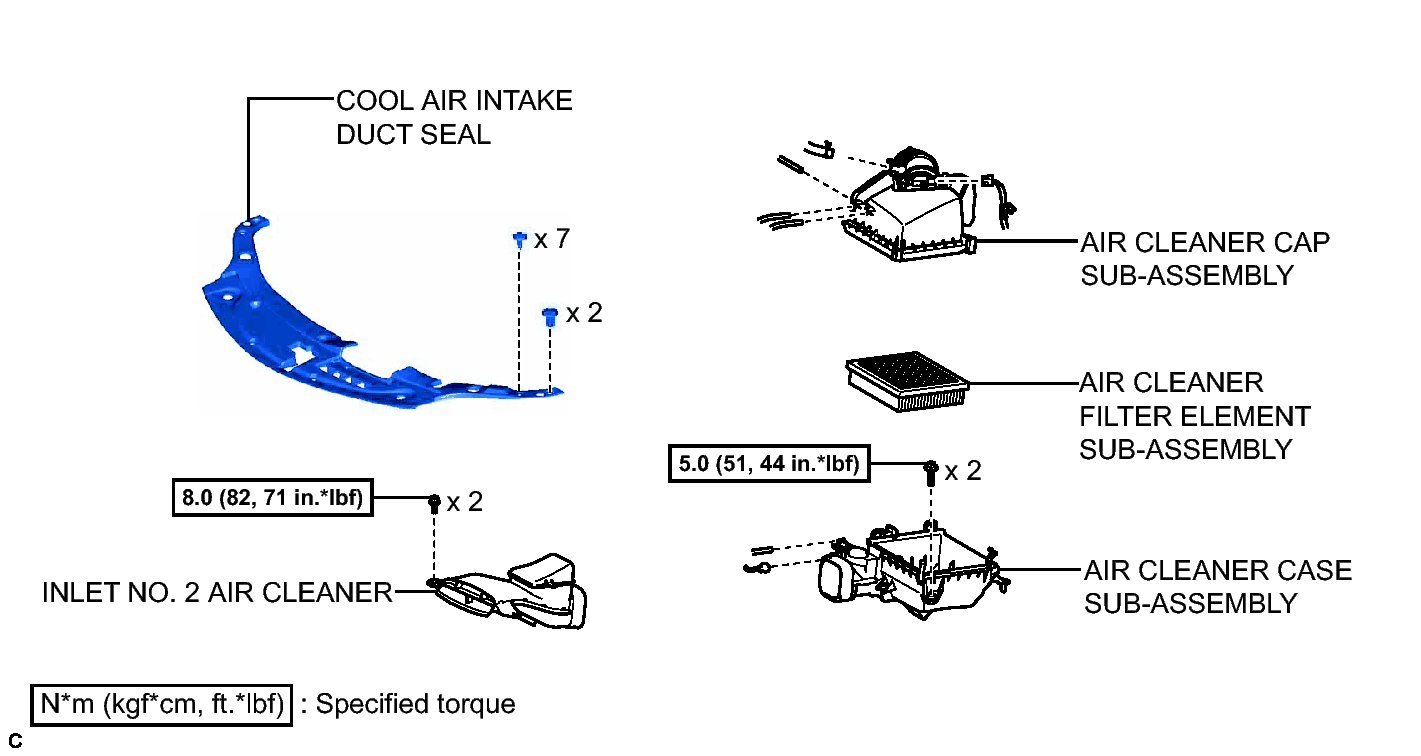

Fig 1: Identifying Brake Master Cylinder Replacement Components Location With Torque Specifications (3 Of 4)
GTY319288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

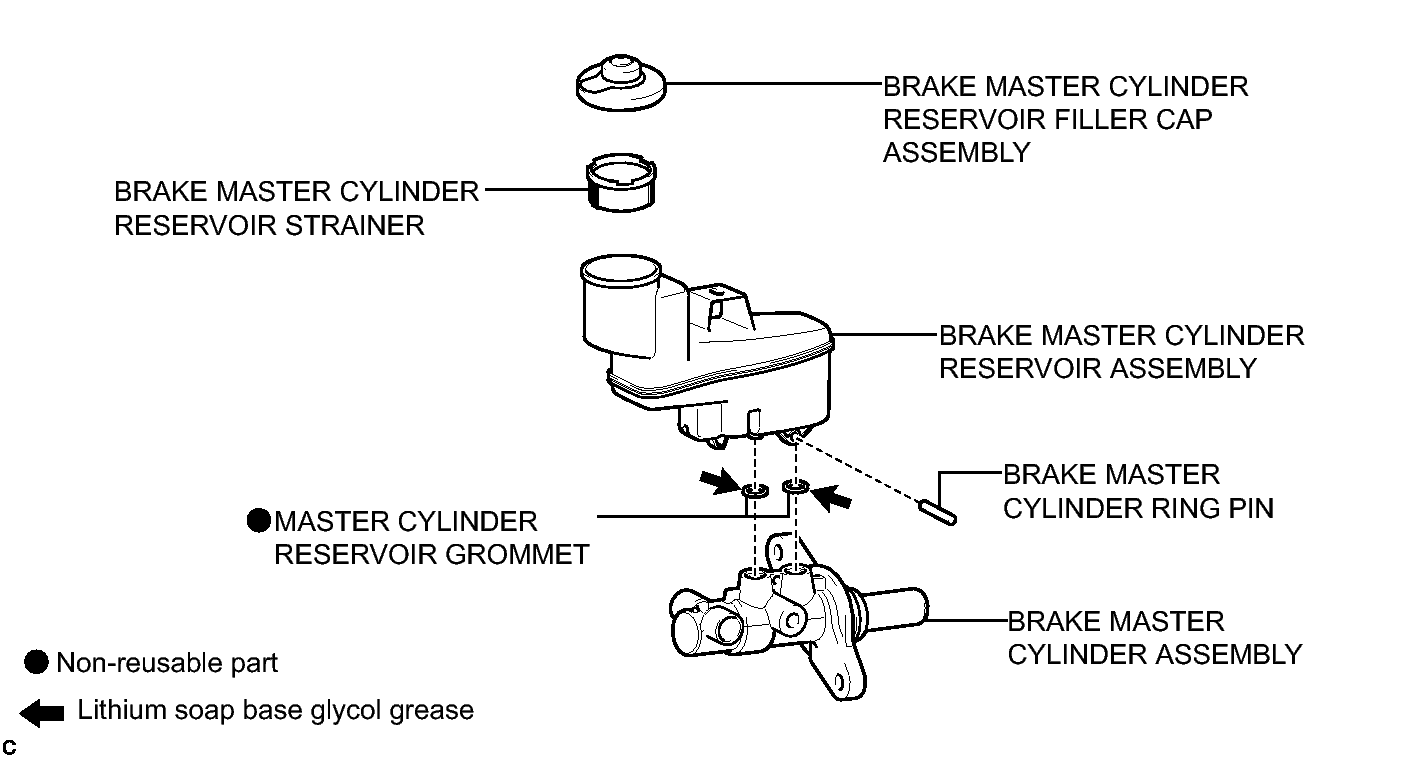

Fig 1: Identifying Brake Master Cylinder Replacement Components Location (4 Of 4)
GTY362505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
