DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure: Wiring Diagram

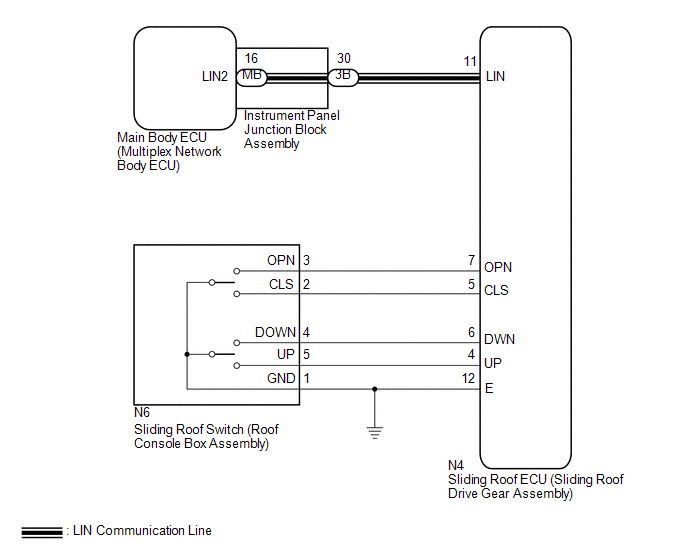

Fig 1: Sliding Roof Control System Wiring Diagram

GTY378716

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
