Front Passenger Side Seat Heater does not Operate: Wiring Diagram

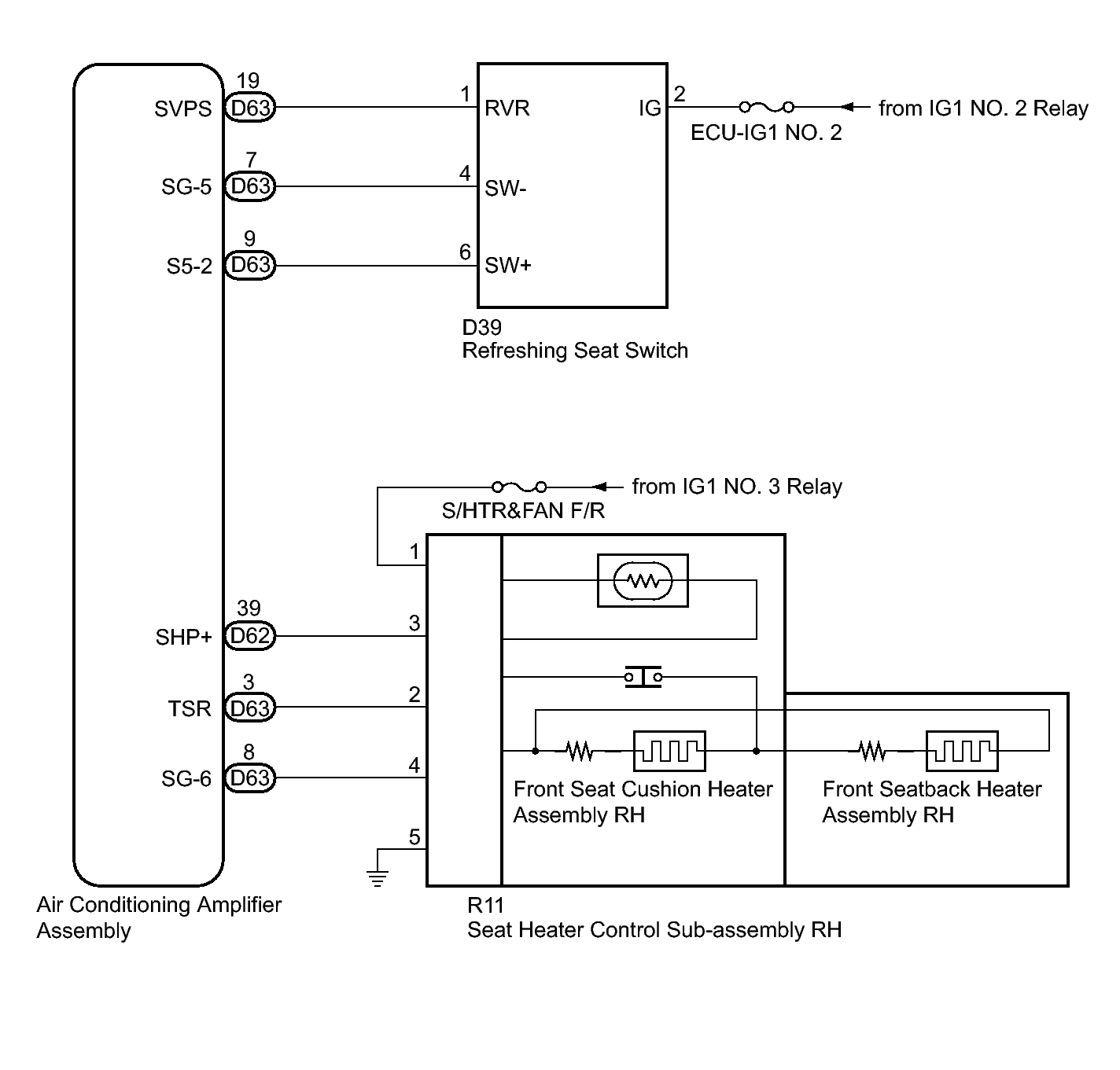

Fig 1: Front Passenger Side Seat Heater Wiring Diagram

GTY370149

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
