Driver Side Seat Heater does not Operate: Wiring Diagram

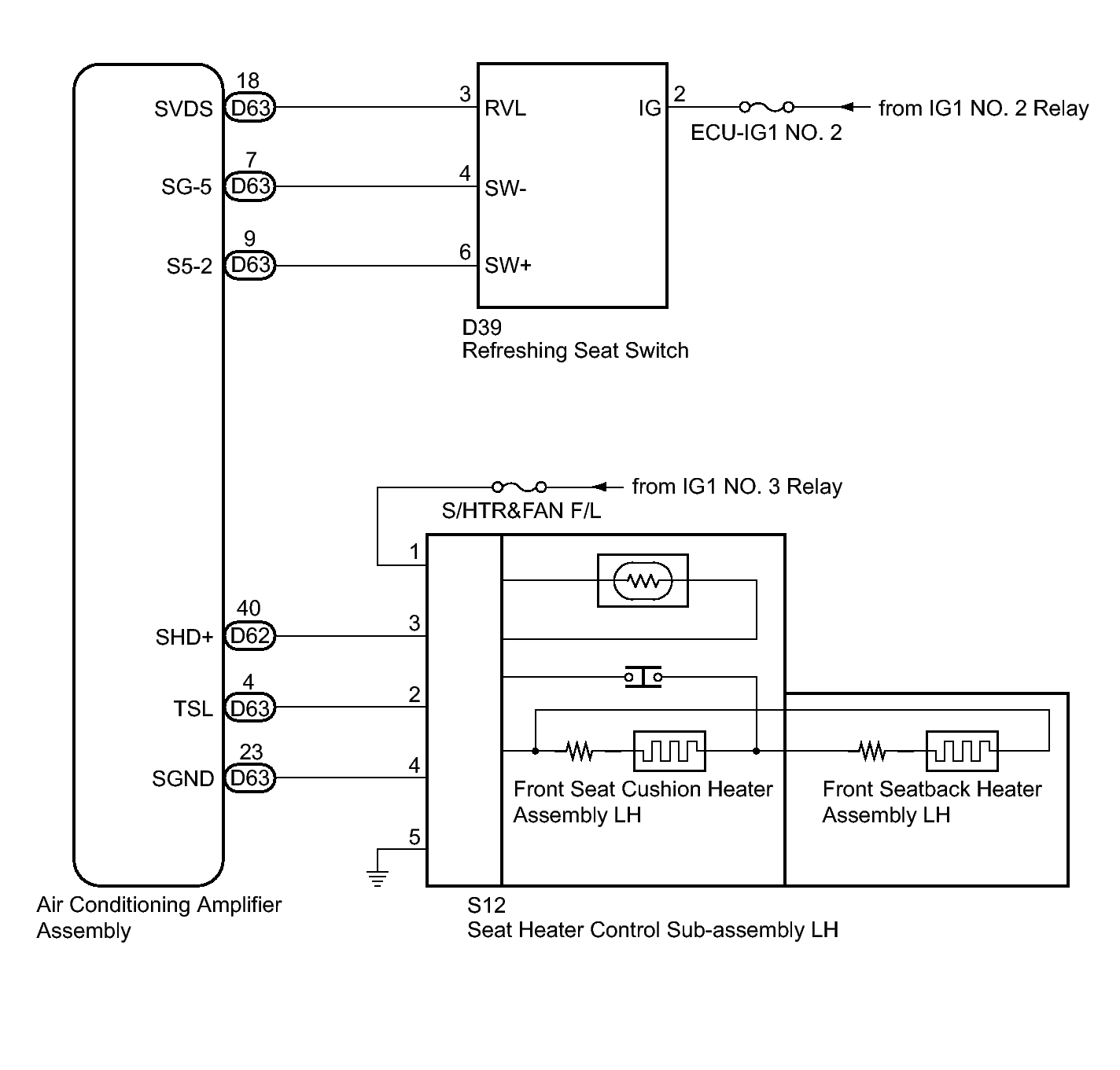

Fig 1: Driver Side Seat Heater Wiring Diagram

GTY369849

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
