Parts Location: Illustration

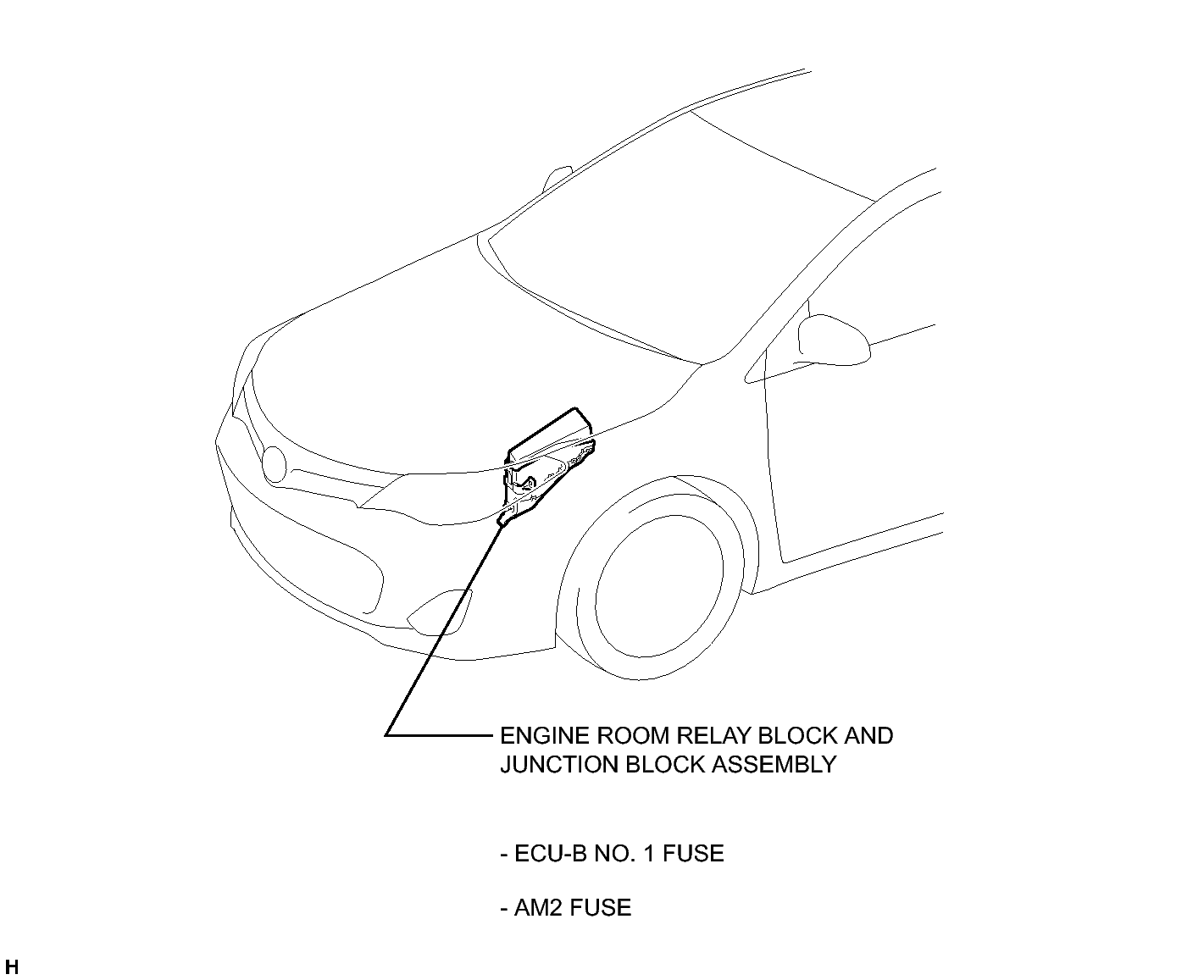

Fig 1: Identifying Fuel Lid Opener System Replacement Components Location (1 Of 4)
GTY383819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

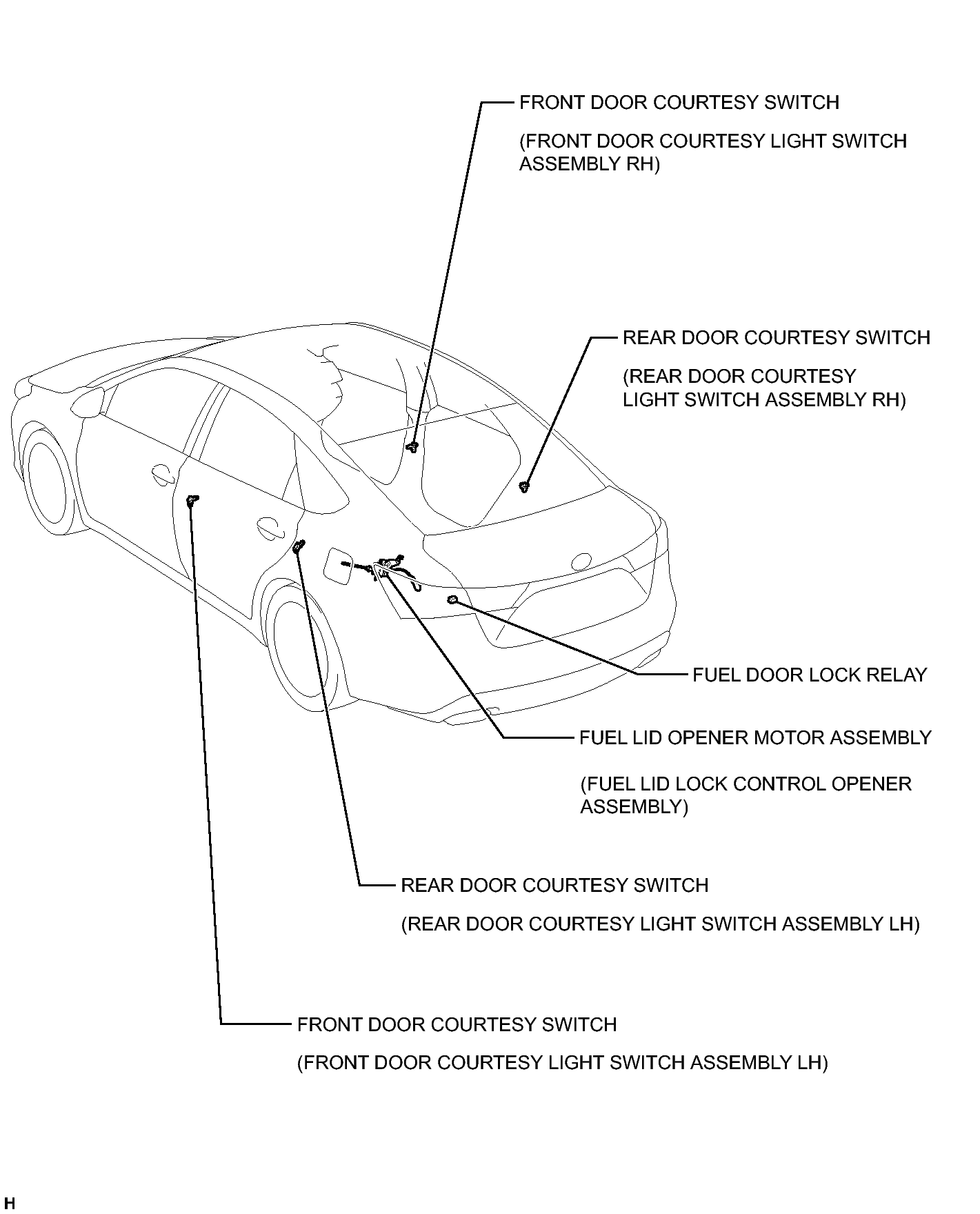

Fig 1: Identifying Fuel Lid Opener System Replacement Components Location (2 Of 4)
GTY372121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

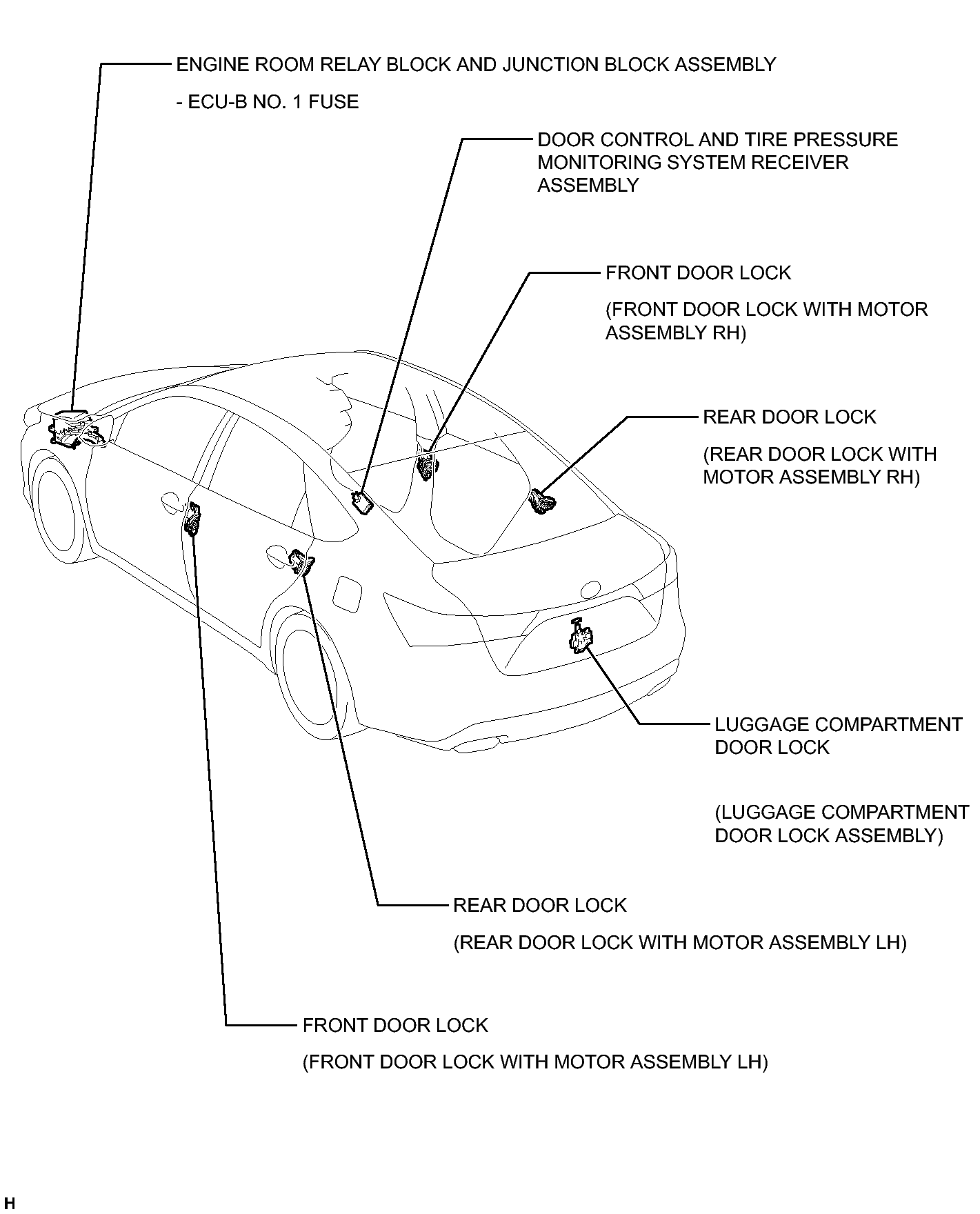

Fig 1: Identifying Fuel Lid Opener System Replacement Components Location (3 Of 4)
GTY380739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

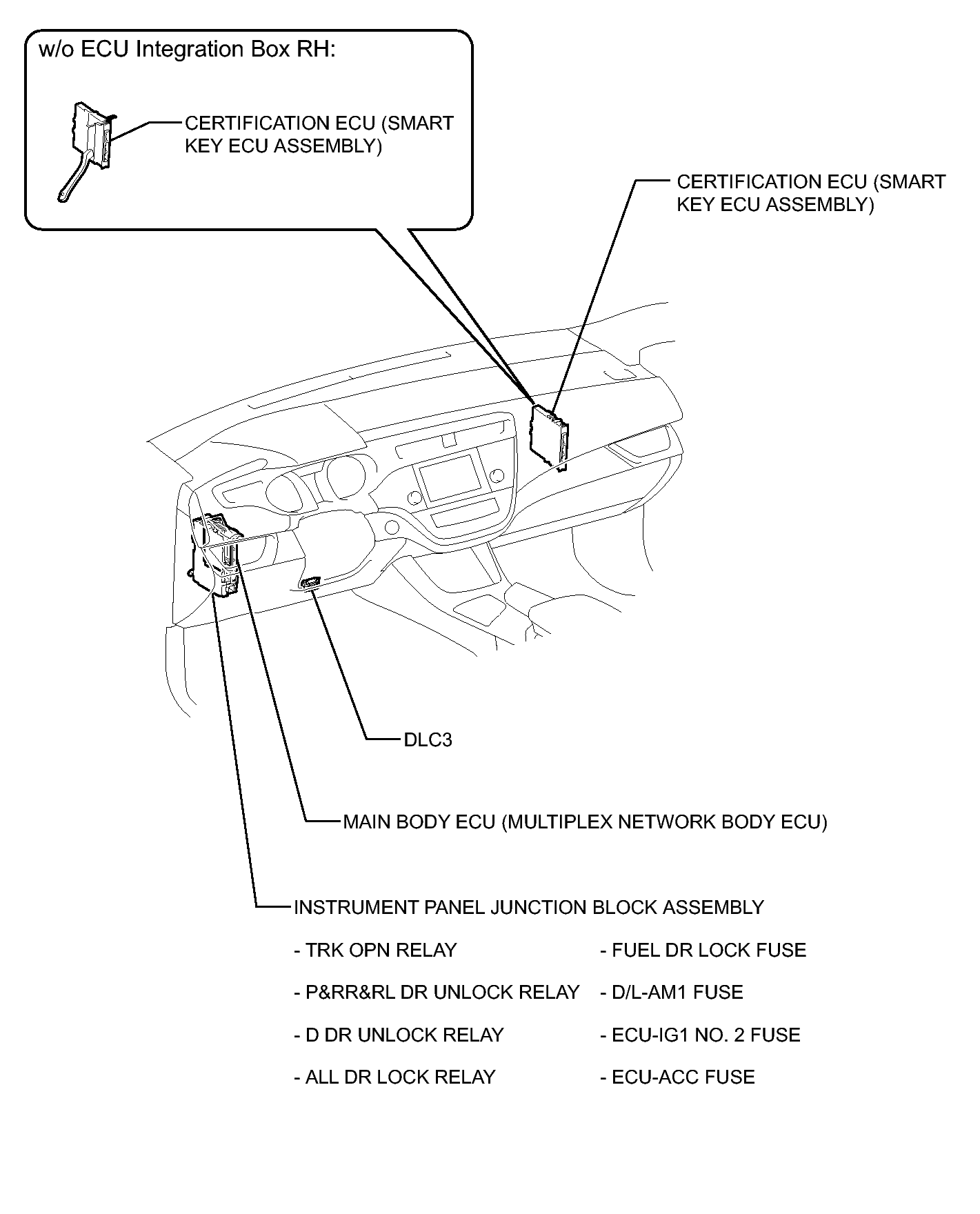

Fig 1: Identifying Fuel Lid Opener System Replacement Components Location (4 Of 4)
GTY384018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
