Rear Door: Components: Illustration

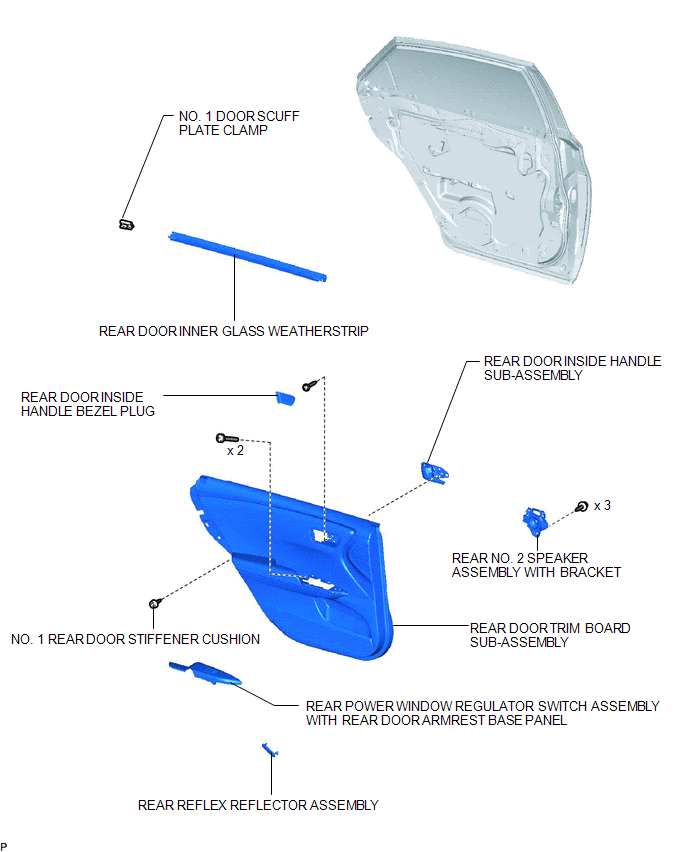

Fig 1: Identifying Rear Door Replacement Components Location (1 Of 4)
GTY372069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

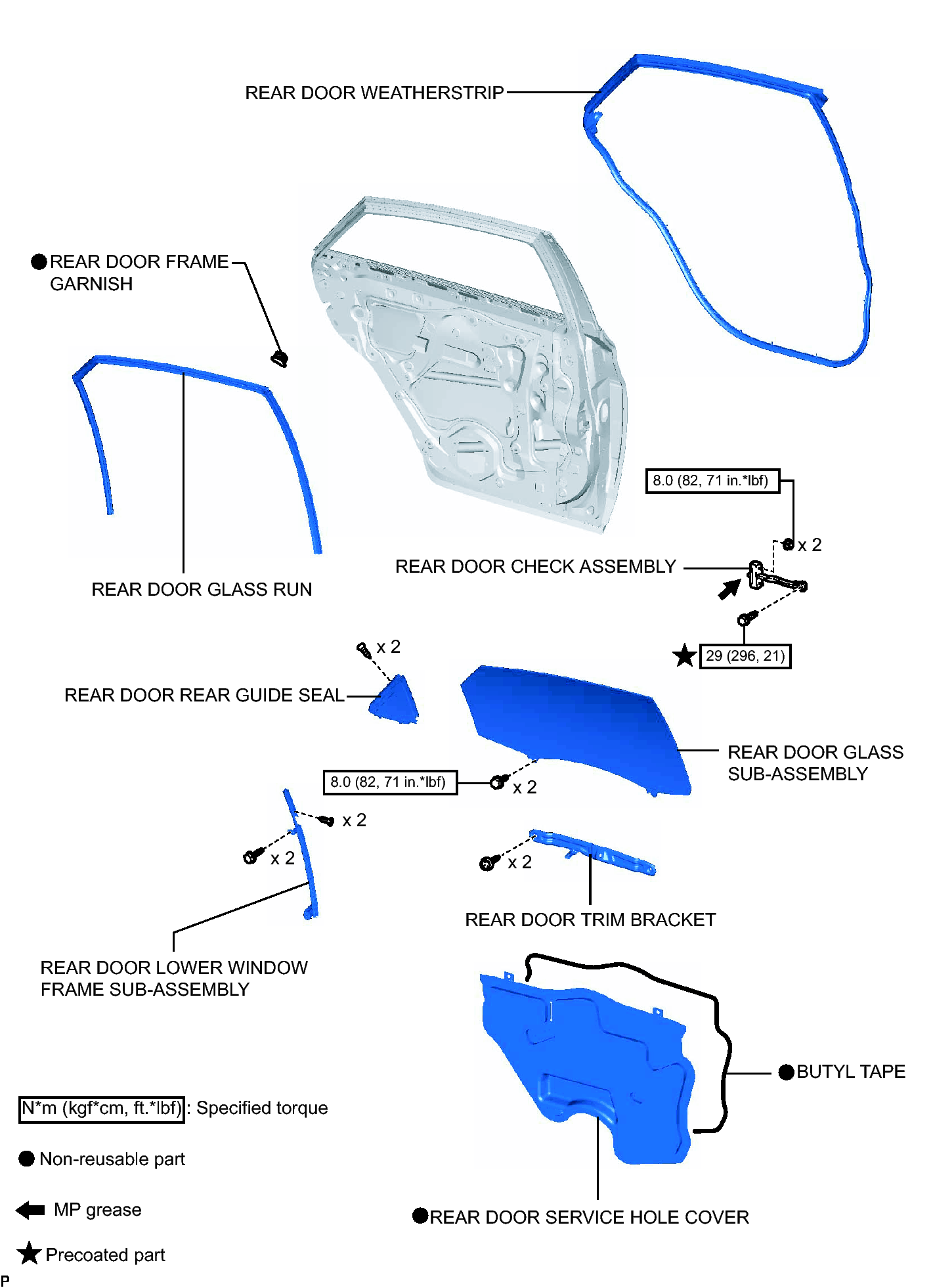

Fig 1: Identifying Rear Door Replacement Components Location With Torque Specifications (2 Of 4)
GTY361662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

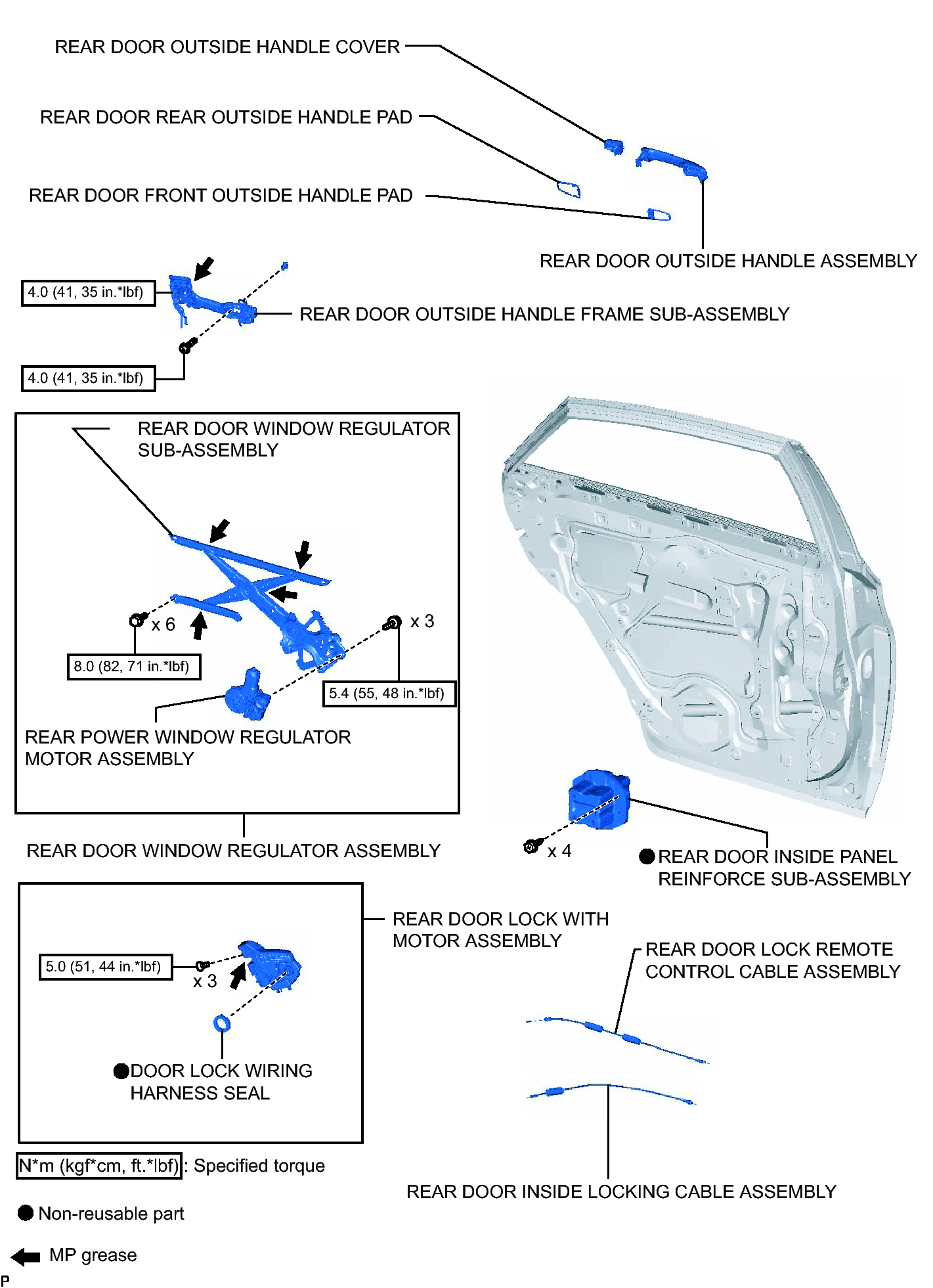

Fig 1: Identifying Rear Door Replacement Components Location With Torque Specifications (3 Of 4)
GTY371664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

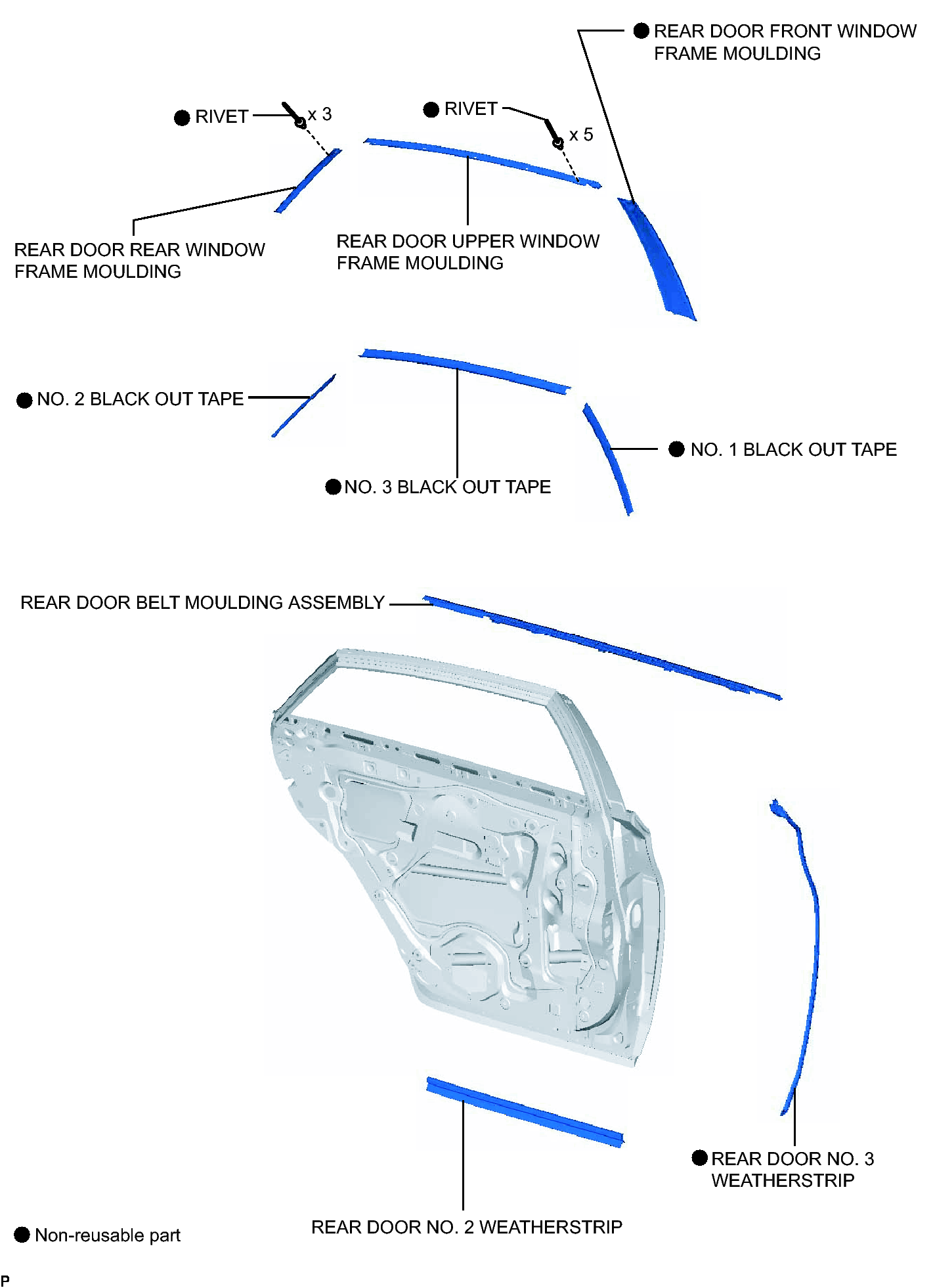

Fig 1: Identifying Rear Door Replacement Components Location (4 Of 4)
GTY370221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
