Luggage Door Lock Control Cable Assembly: Components: Illustration

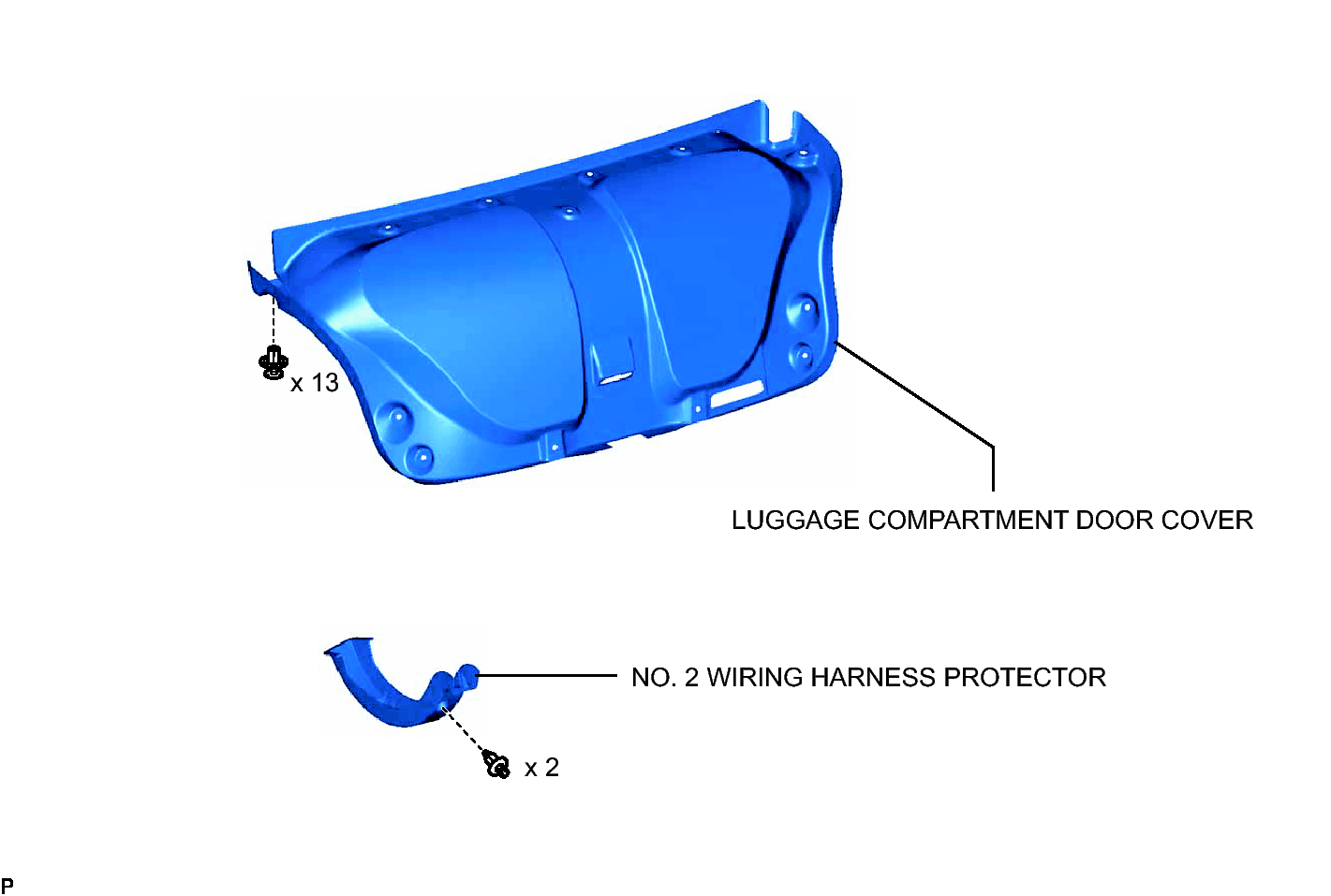

Fig 1: Identifying Luggage Door Lock Control Cable Assembly Replacement Components Location (1 Of 2)
GTY366848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

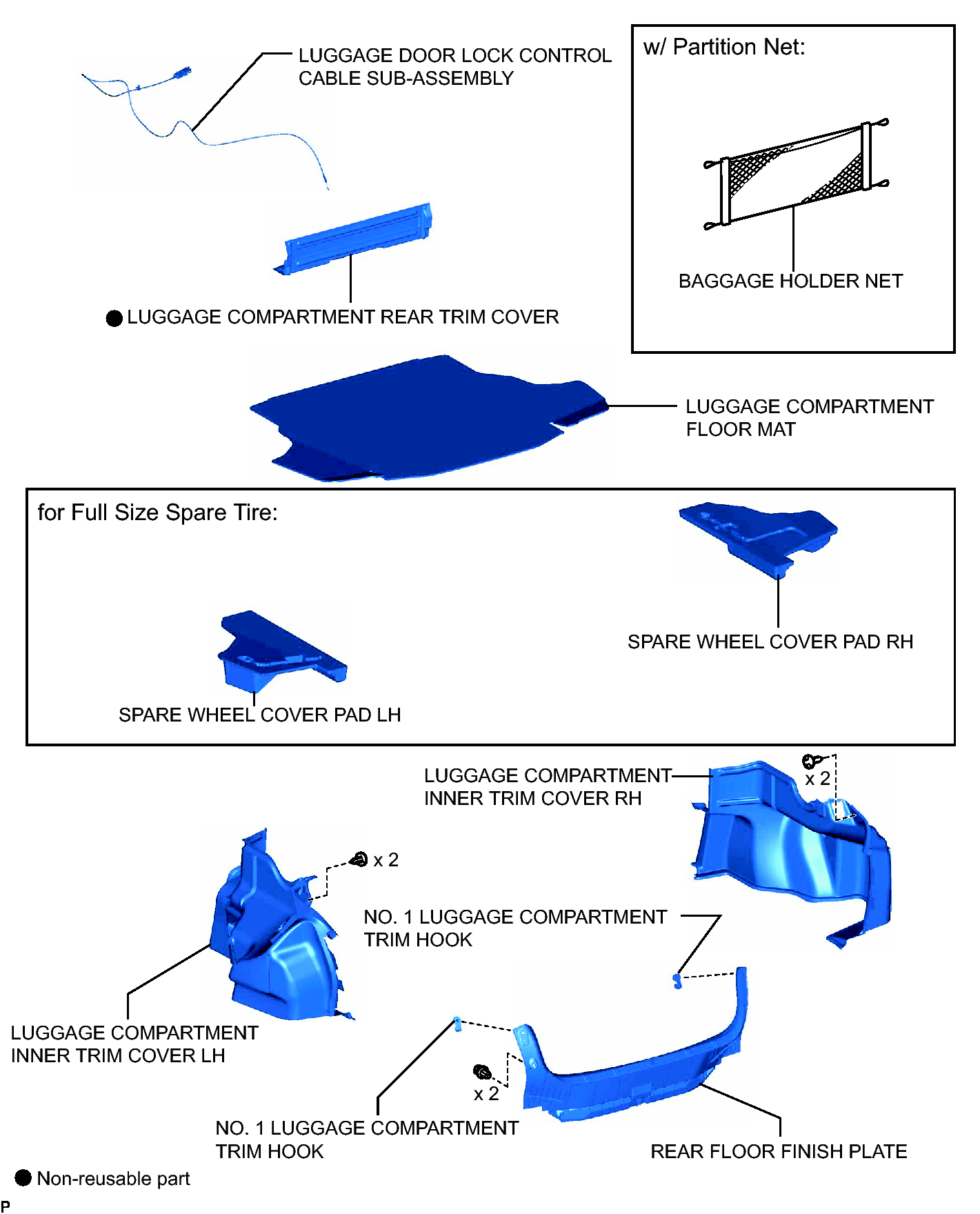

Fig 1: Identifying Luggage Door Lock Control Cable Assembly Replacement Components Location (2 Of 2)
GTY366037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
