Luggage Compartment Door: Components: Illustration

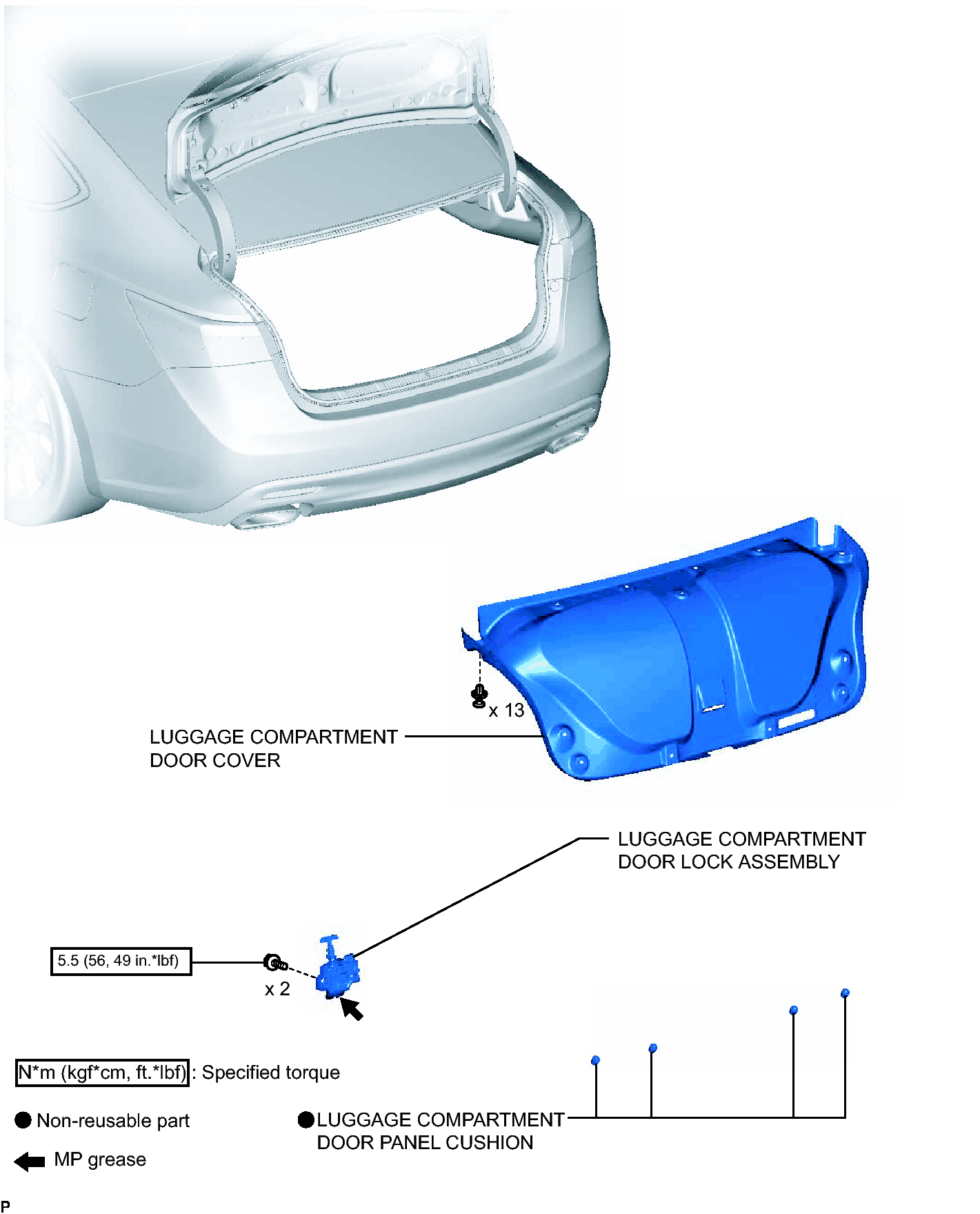

Fig 1: Identifying Luggage Compartment Door Replacement Components Location With Torque Specifications (1 Of 2)
GTY378438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

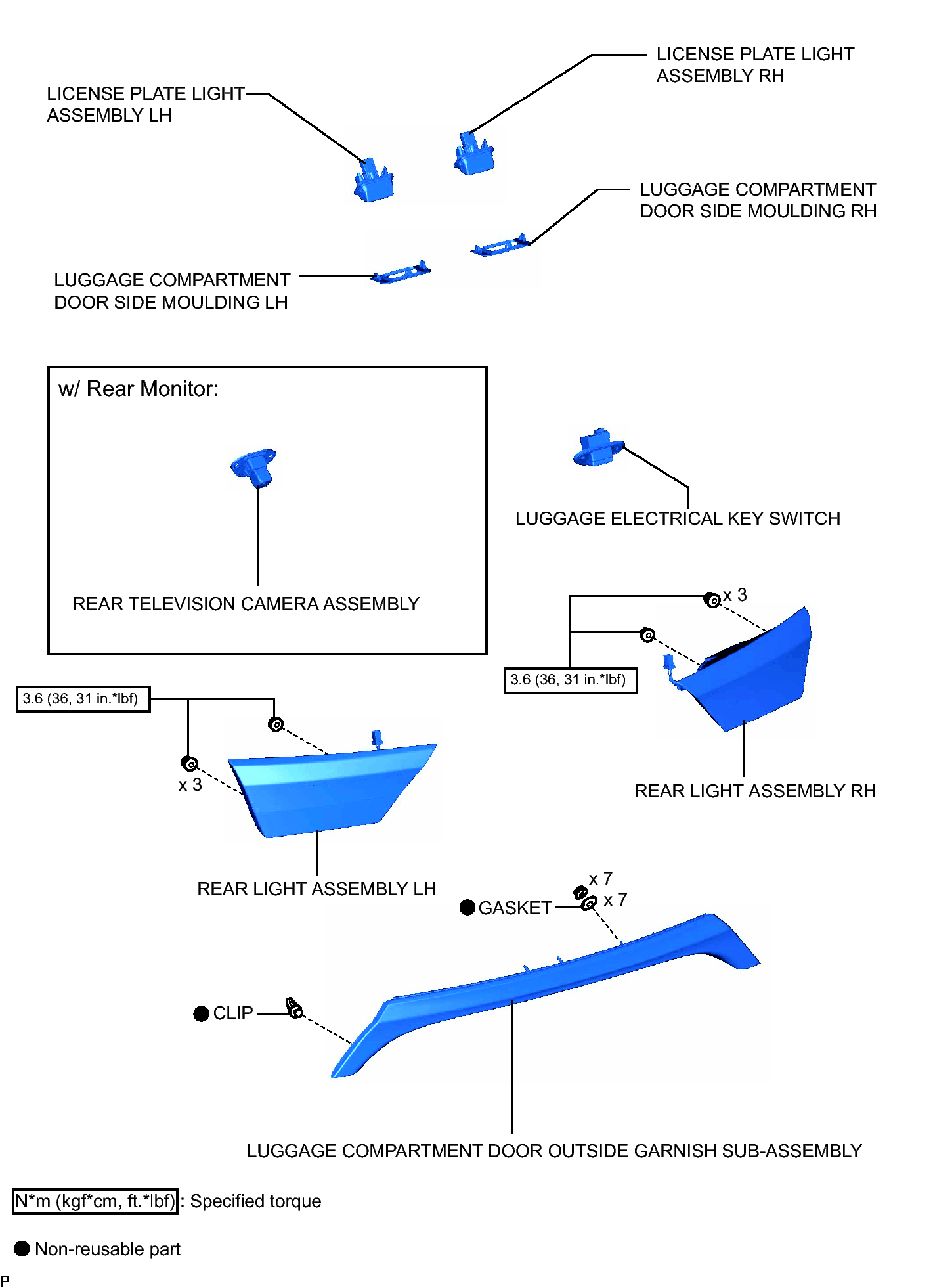

Fig 1: Identifying Luggage Compartment Door Replacement Components Location With Torque Specifications (2 Of 2)
GTY375724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
