Luggage Compartment Door: Adjustment: Adjustment

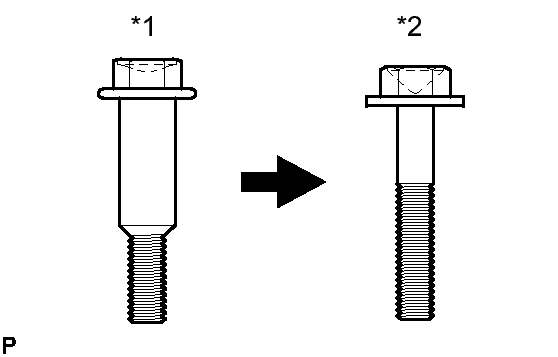

Fig 1: Identifying Centering Bolt & Standard Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Centering bolts are used to mount the door hinge to the door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts when making adjustments.
• Specified torque for standard bolts is shown in the standard bolt chart. Refer to SPECIFIED TORQUE FOR STANDARD BOLTS .

1. REMOVE LUGGAGE COMPARTMENT DOOR COVER  See step  1
2. REMOVE BAGGAGE HOLDER NET (w/ Partition Net)  See step  1
3. REMOVE LUGGAGE COMPARTMENT FLOOR MAT  See step  2
4. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK  See step  5
5. REMOVE REAR FLOOR FINISH PLATE  See step  6
6. ADJUST LUGGAGE COMPARTMENT DOOR
   1. Remove the 2 clips and No. 2 wiring harness protector.

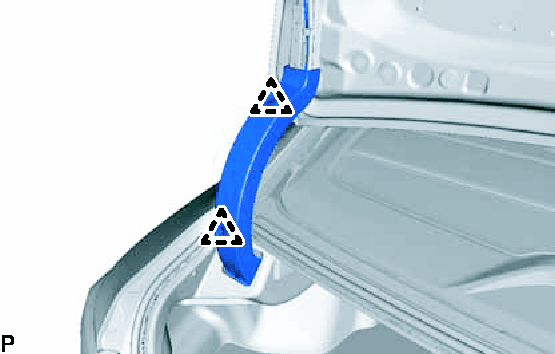

      Fig 2: Identifying No. 2 Wiring Harness Protector Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Remove the 2 clips and wiring harness protector.
      Fig 3: Identifying Wiring Harness Protector Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Loosen the door side hinge bolts to adjust the door horizontally and vertically.
      Fig 4: Identifying Door Side Hinge Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

   4. Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.
      Fig 5: Identifying Striker Mounting "TORX" Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Using a brass bar and a hammer, hit the striker to adjust its position.
   6. Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.

      Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)

   7. Install the wiring harness protector with the 2 clips.
   8. Install the No. 2 wiring harness protector with the 2 clips.
7. INSTALL REAR FLOOR FINISH PLATE  See step  6
8. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK  See step  7
9. INSTALL LUGGAGE COMPARTMENT FLOOR MAT  See step  10
10. INSTALL BAGGAGE HOLDER NET (w/ Partition Net)  See step  11
11. INSTALL LUGGAGE COMPARTMENT DOOR COVER  See step  12
12. INSPECT LUGGAGE COMPARTMENT DOOR
    1. Check that the clearance measurements of areas a through d are within each standard range.
       Fig 6: Identifying Clearance Measurement Areas

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       STANDARD CLEARANCE



       Area	Measurement	Area	Measurement
       a	6.05 mm (0.238 in.)	b	2.0 to 5.0 mm (0.0787 to 0.197 in.)
       c	-1.5 to 1.5 mm (-0.0591 to 0.0591 in.)	d	3.85 to 7.85 mm (0.152 to 0.309 in.)
