Hood Lock Control Cable Assembly: Components: Illustration

Fig 1: Identifying Hood Lock Control Cable Assembly Replacement Components Location (1 Of 2)
GTY367572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

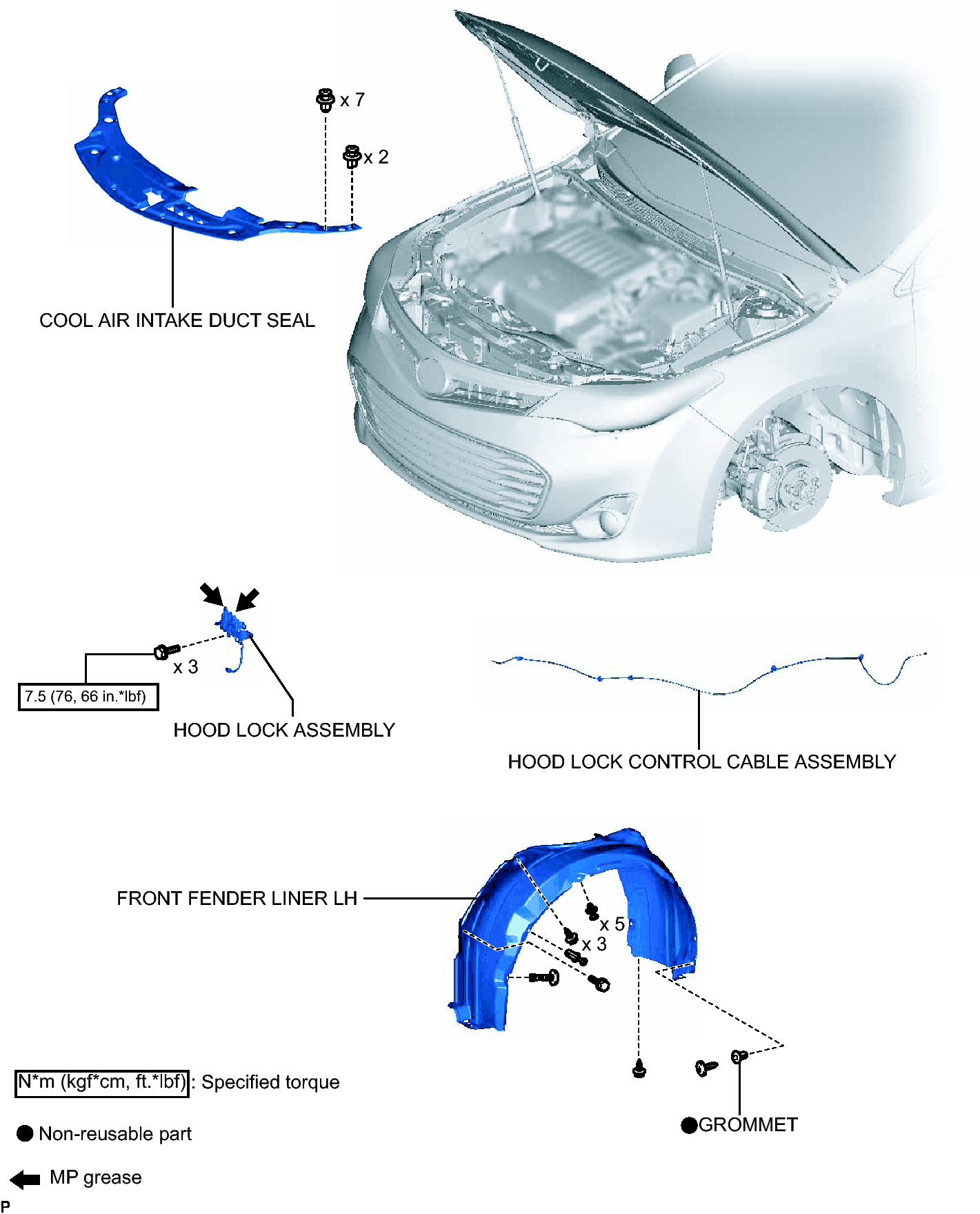

Fig 1: Identifying Hood Lock Control Cable Assembly Replacement Components Location With Torque Specifications (2 Of 2)
GTY374501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
