Fuel Lid Opener Motor Assembly: Components: Illustration

Fig 1: Identifying Fuel Lid Opener Motor Assembly Replacement Components Location (1 Of 2)
GTY380761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

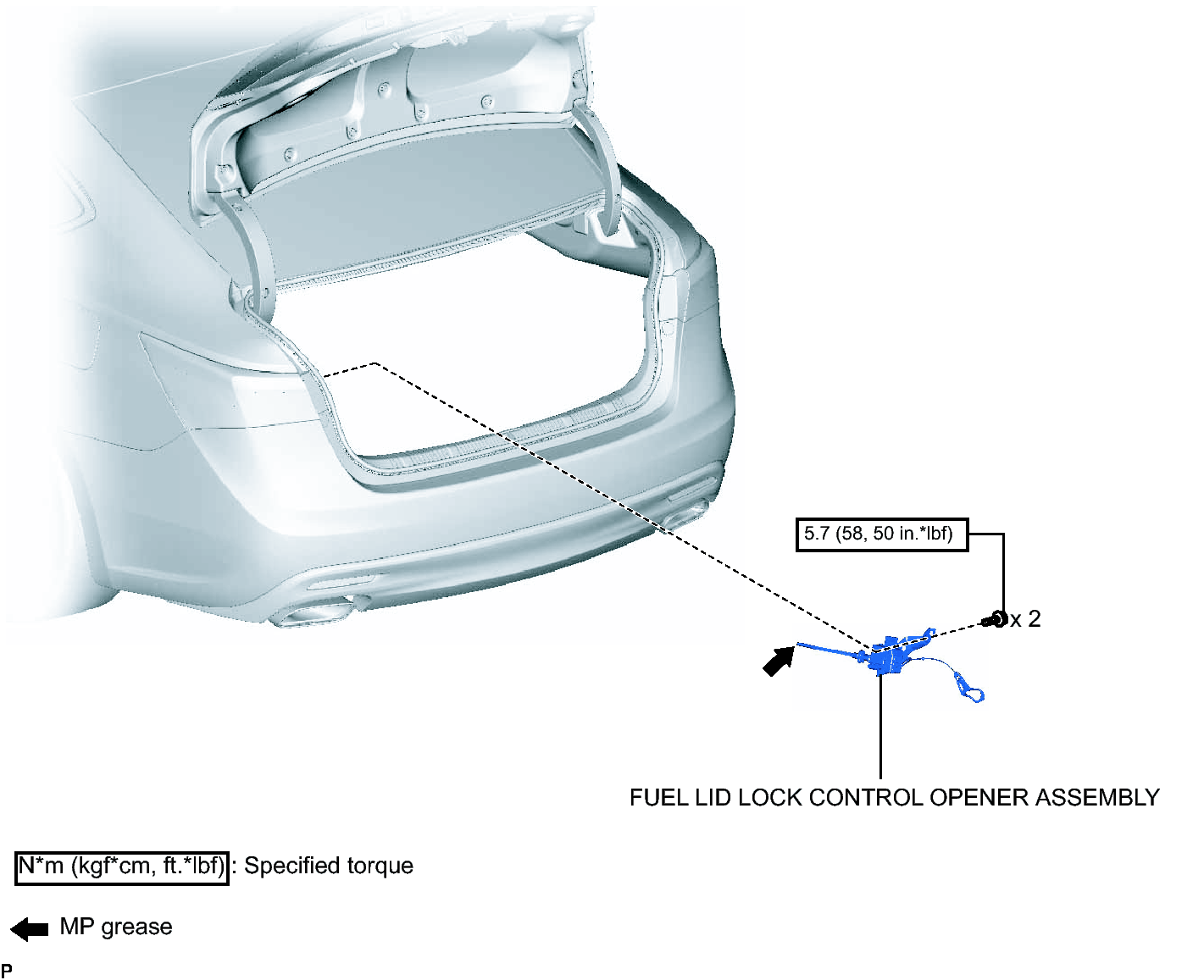

Fig 1: Identifying Fuel Lid Opener Motor Assembly Replacement Components Location With Torque Specifications (2 Of 2)
GTY376397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
