Front Door: Components: Illustration

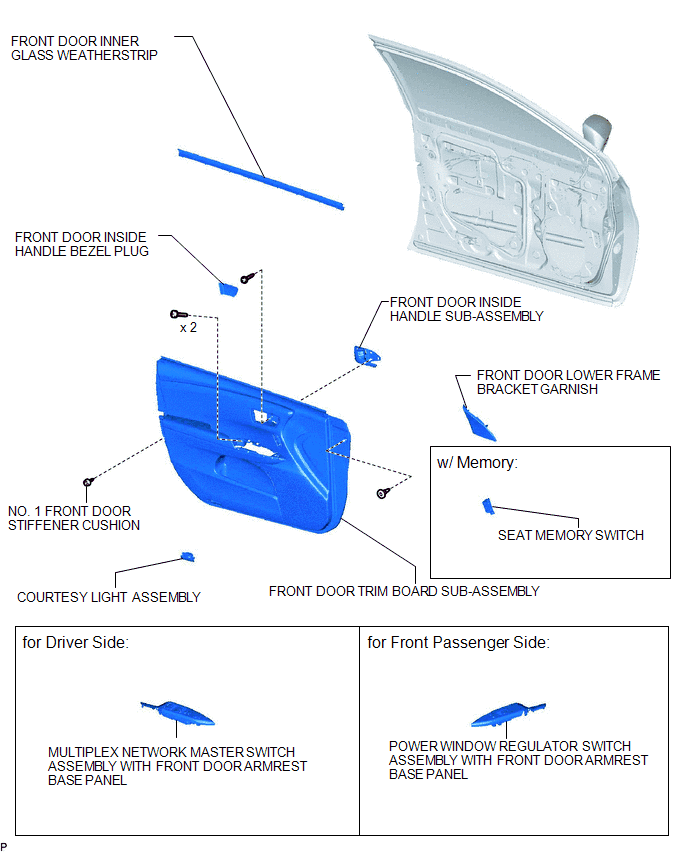

Fig 1: Identifying Front Door Replacement Components Location (1 Of 4)
GTY377932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

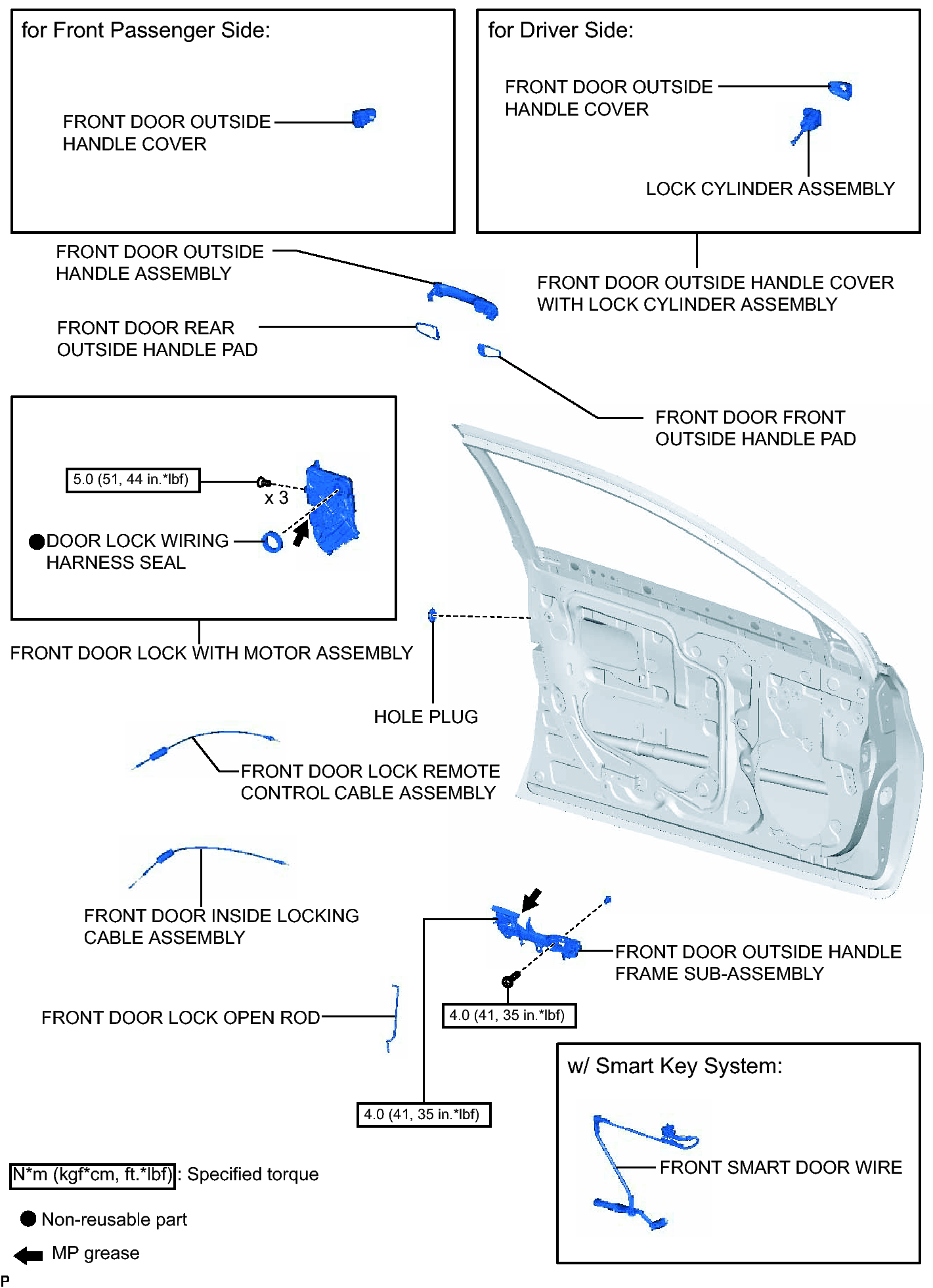

Fig 1: Identifying Front Door Replacement Components Location With Torque Specifications (2 Of 4)
GTY367385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

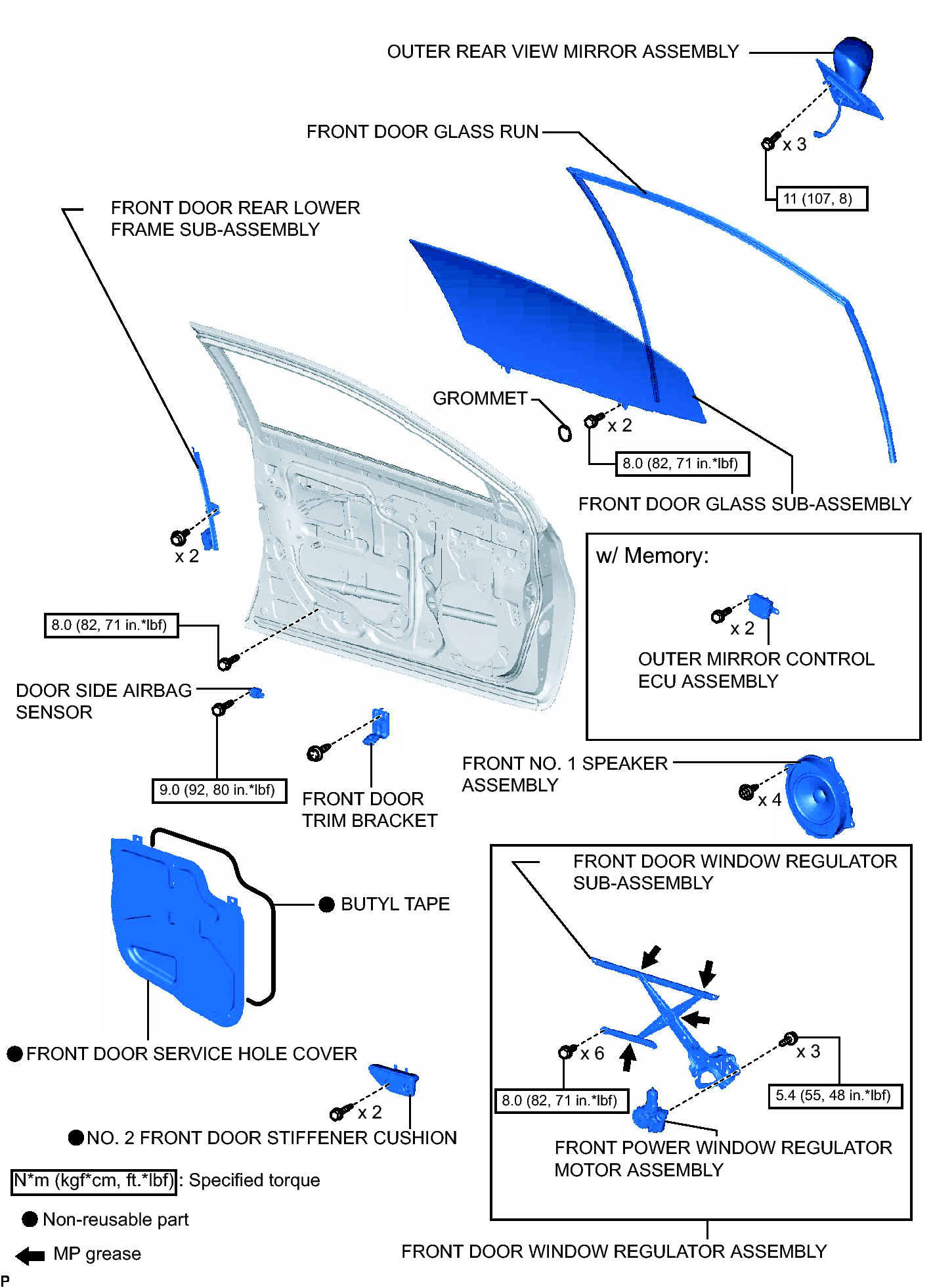

Fig 1: Identifying Front Door Replacement Components Location With Torque Specifications (3 Of 4)
GTY362058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

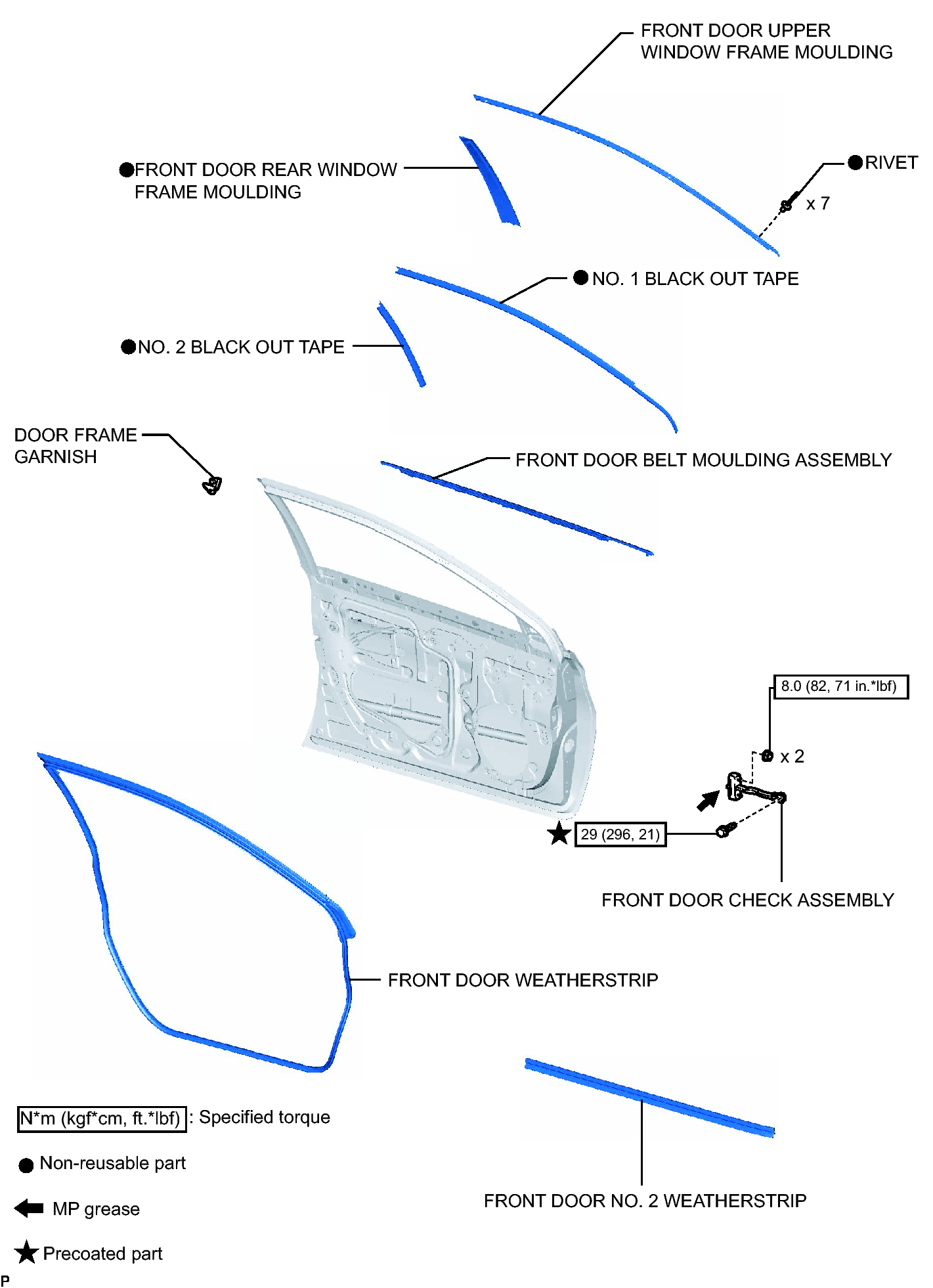

Fig 1: Identifying Front Door Replacement Components Location (4 Of 4)
GTY383845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
