Room Light: Removal: Removal
- REMOVE SPOT LIGHT ASSEMBLY

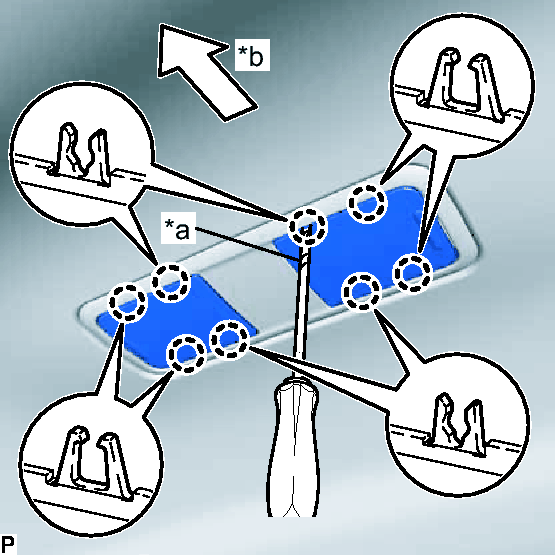

- Using a screwdriver with its tip wrapped with protective tape, disengage the 8 claws to remove the 2 spot light lenses.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION
| *a |
Protective Tape |
| *b |
Front |

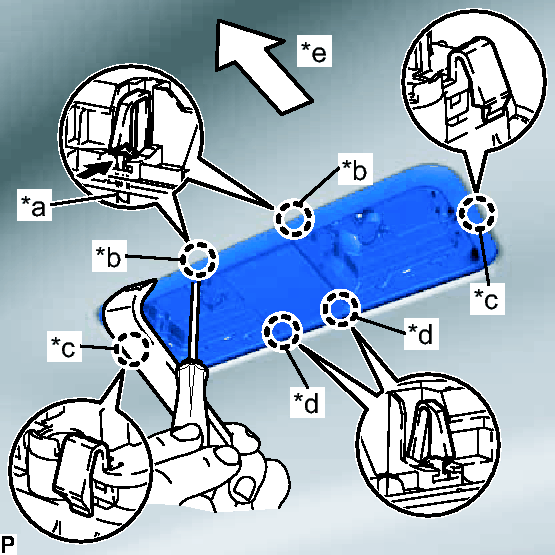

- Using a screwdriver with its tip wrapped with protective tape and a molding remover, disengage the 2 claws (A).
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION
| *a |
Protective Tape |
| *b |
Claw (A) |
| *c |
Claw (B) |
| *d |
Claw (C) |
| *e |
Front |
- Disengage the 2 claws (B) and 2 claws (C) to disconnect the spot light housing.
- Using a screwdriver, disengage the 8 claws and 2 clamps to separate the 2 map light sub-assemblies from the spot light housing.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TEXT IN ILLUSTRATION
| *1 |
Map Light Sub-assembly |
- REMOVE SPOT LIGHT BULB
- Remove the 2 spot light bulbs from the 2 map light sub-assemblies.
