Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter: Wiring Diagram

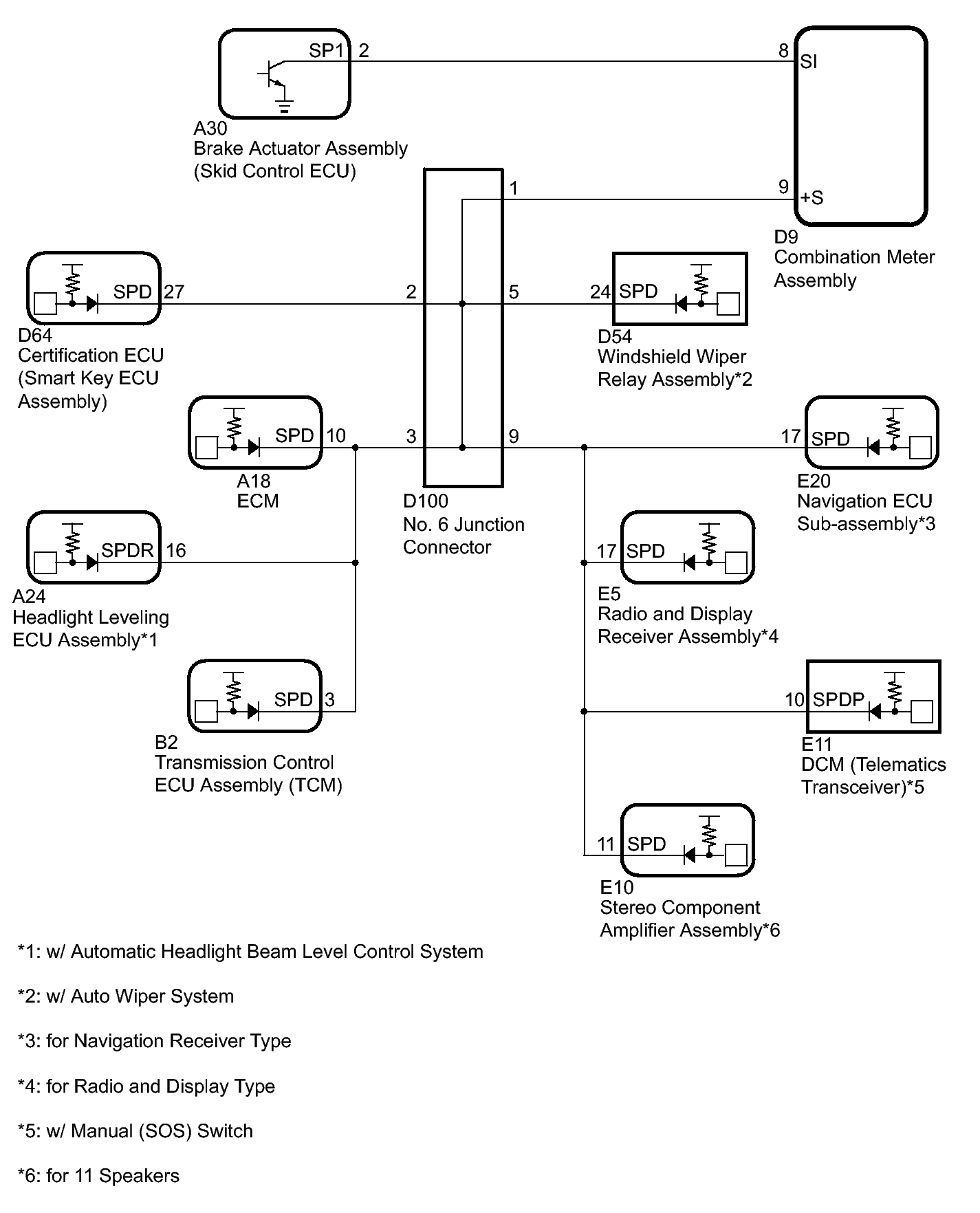

Fig 1: Vehicle Speed Signal Wiring Diagram

GTY364057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
