Speaker Circuit: Wiring Diagram

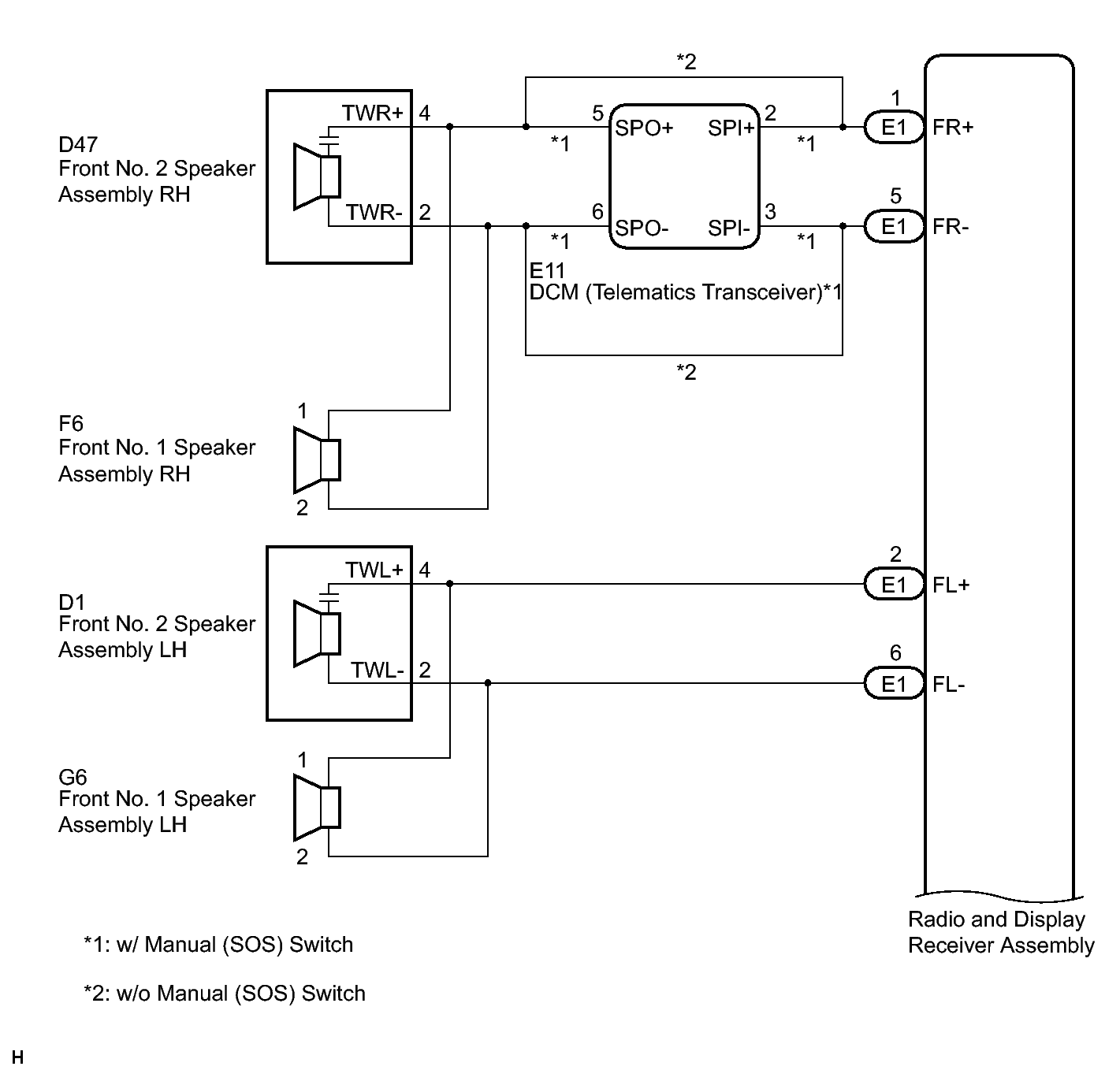

Fig 1: Speaker Wiring Diagram (1 Of 2)
GTY376310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

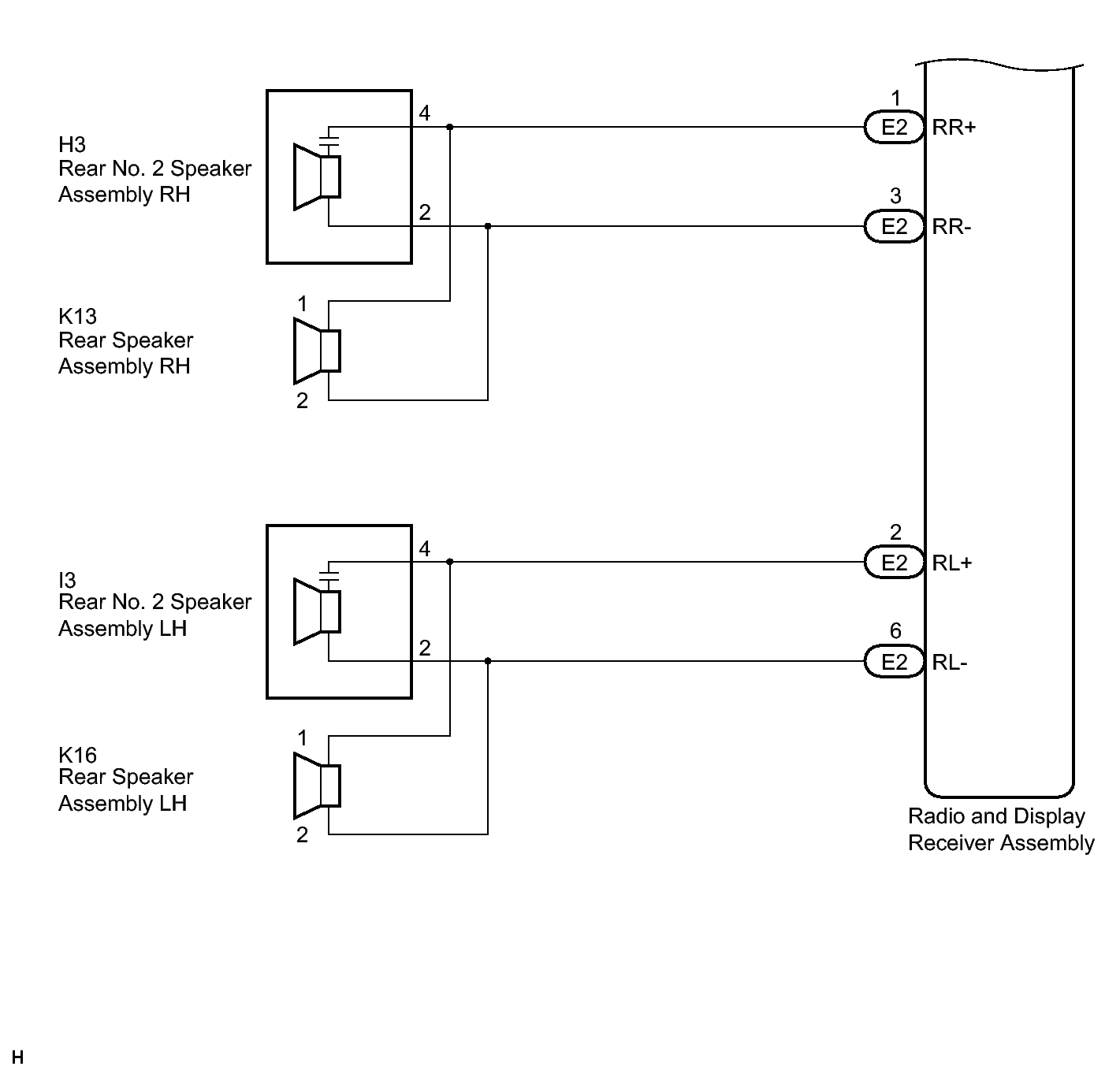

Fig 2: Speaker Wiring Diagram (2 Of 2)
GTY366100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
