Illumination Circuit: Wiring Diagram

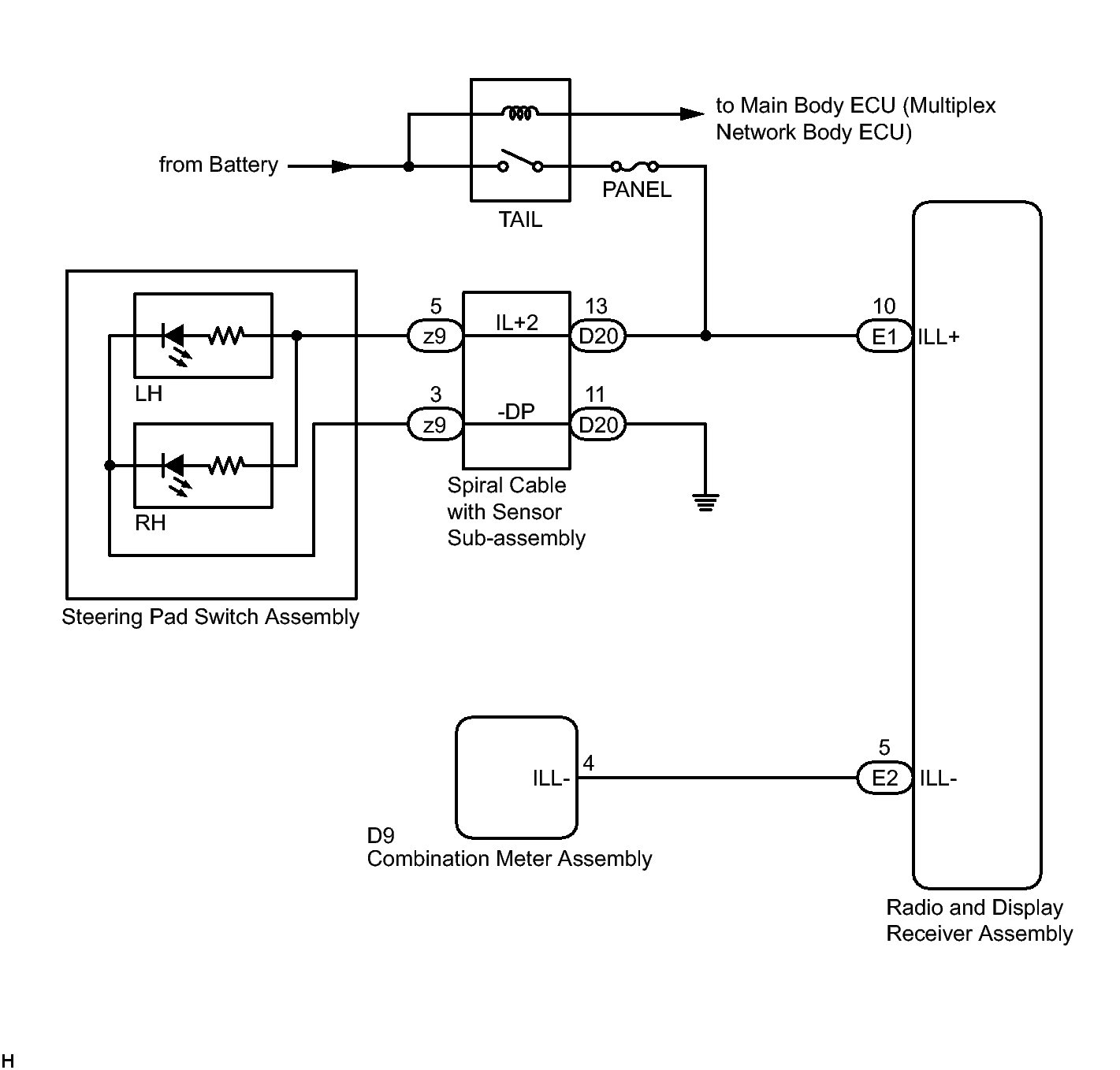

Fig 1: Steering Pad Switch Assembly Illumination Wiring Diagram

GTY368542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
