Parts Location: Illustration

Fig 1: Identifying Meter / Gauge System Replacement Components Location (1 Of 6)
GTY373461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Replacement Components Location (2 Of 6)
GTY381568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

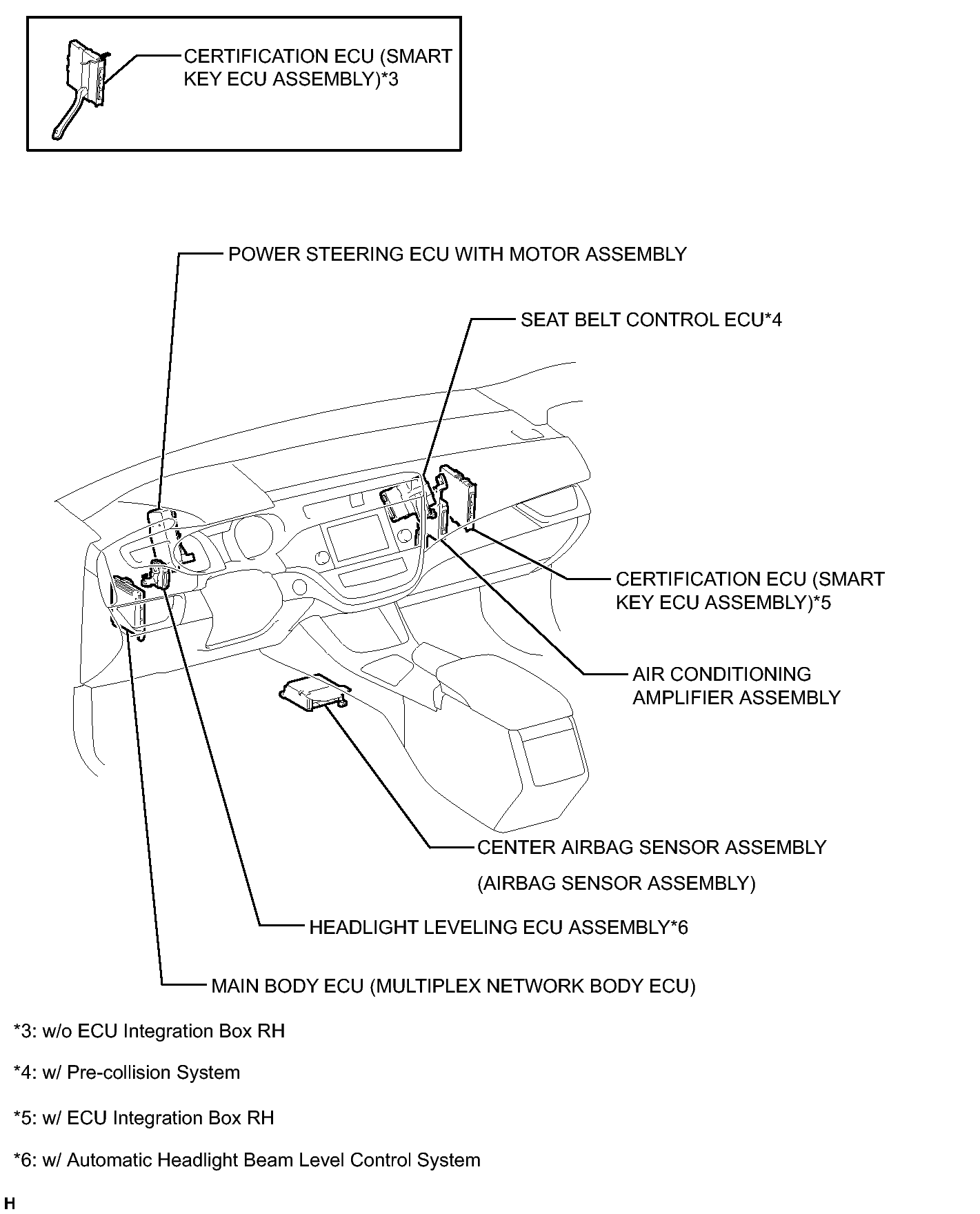

Fig 1: Identifying Meter / Gauge System Replacement Components Location (3 Of 6)
GTY369669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Replacement Components Location (4 Of 6)
GTY375067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

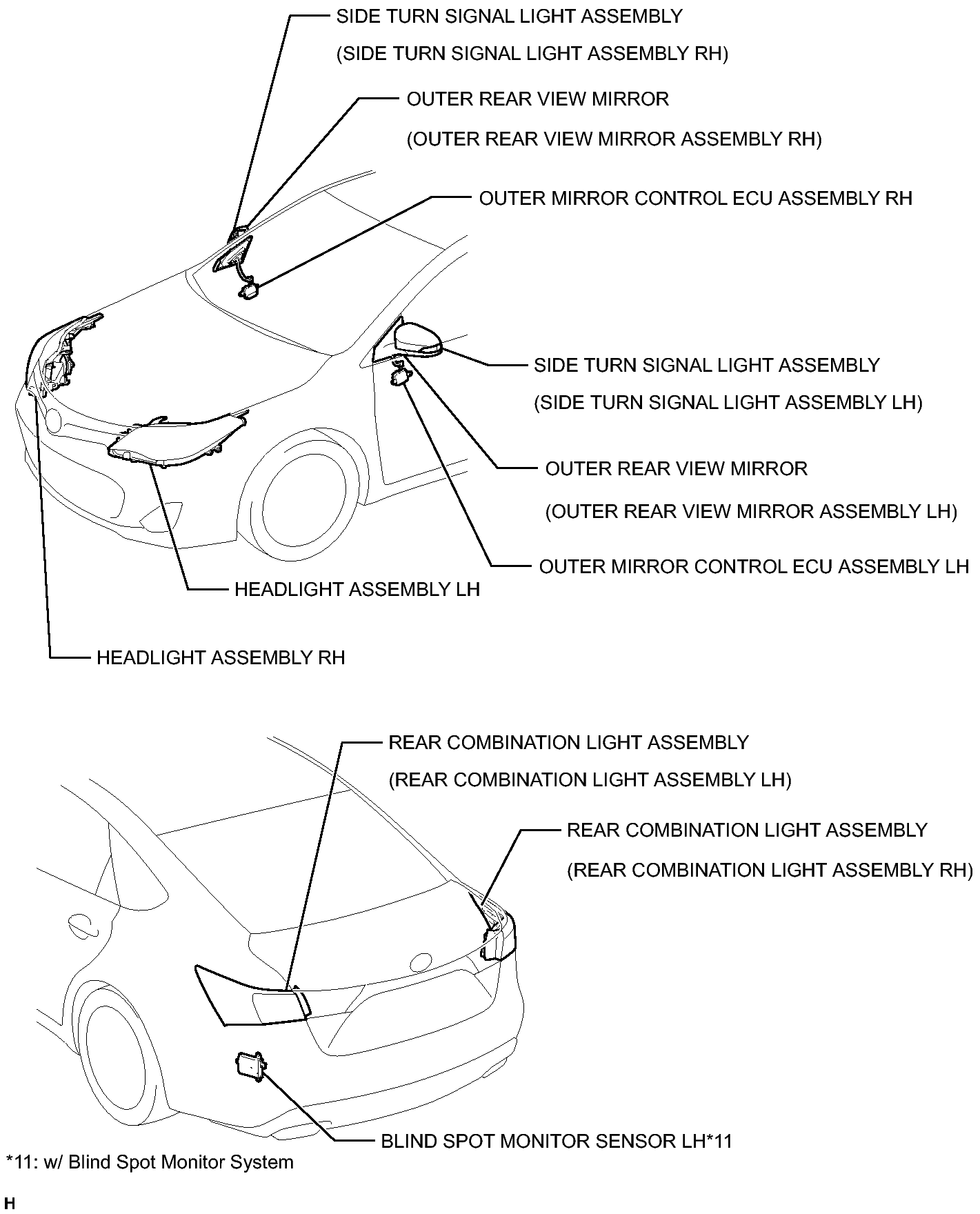

Fig 1: Identifying Meter / Gauge System Replacement Components Location (5 Of 6)
GTY365412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Replacement Components Location (6 Of 6)
GTY367583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
