Rear Light Assembly: Components: Illustration

Fig 1: Identifying Rear Light Assembly Replacement Components Location (1 Of 2)
GTY361430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

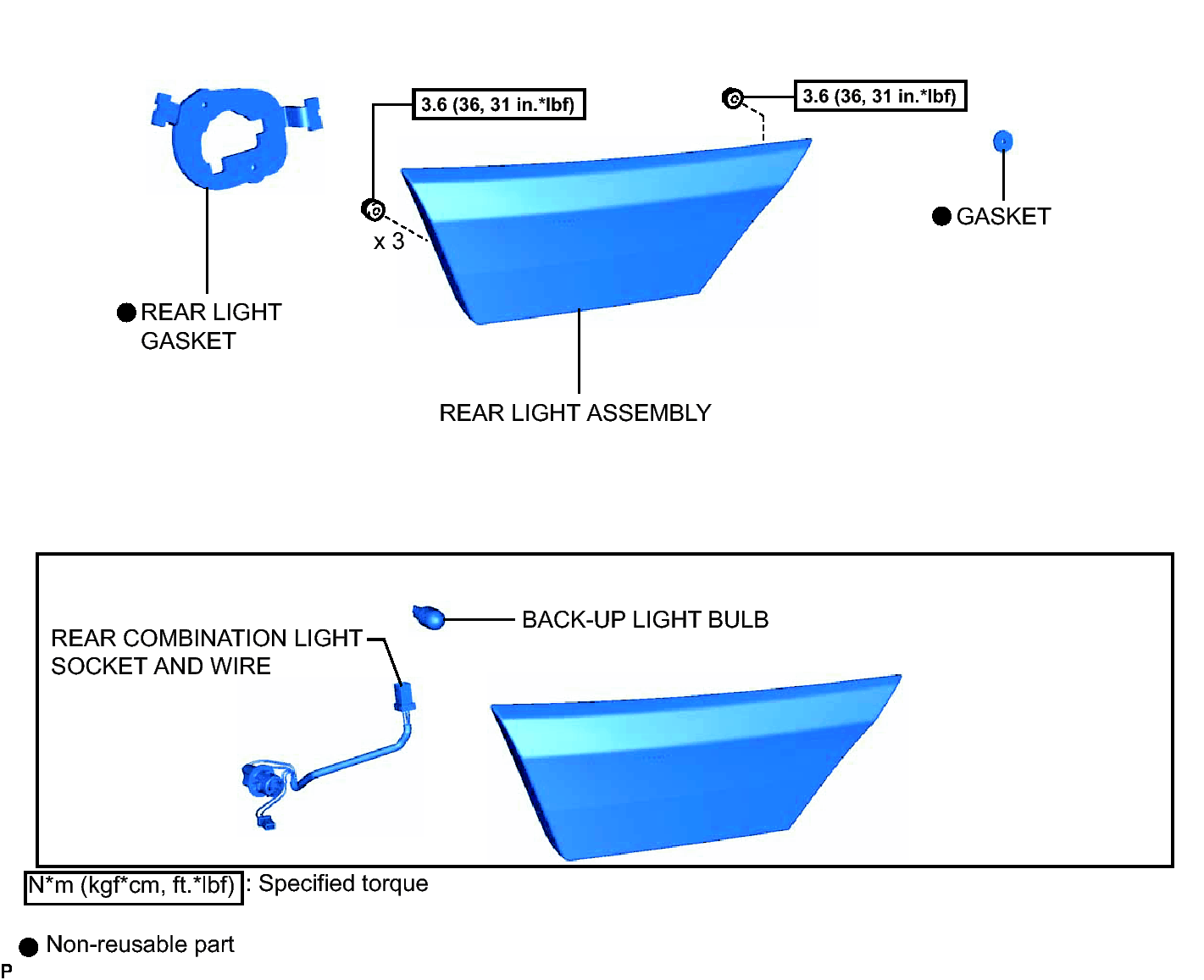

Fig 1: Identifying Rear Light Assembly Replacement Components Location With Torque Specifications (2 Of 2)
GTY381047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
