License Plate Light Assembly: Components: Illustration

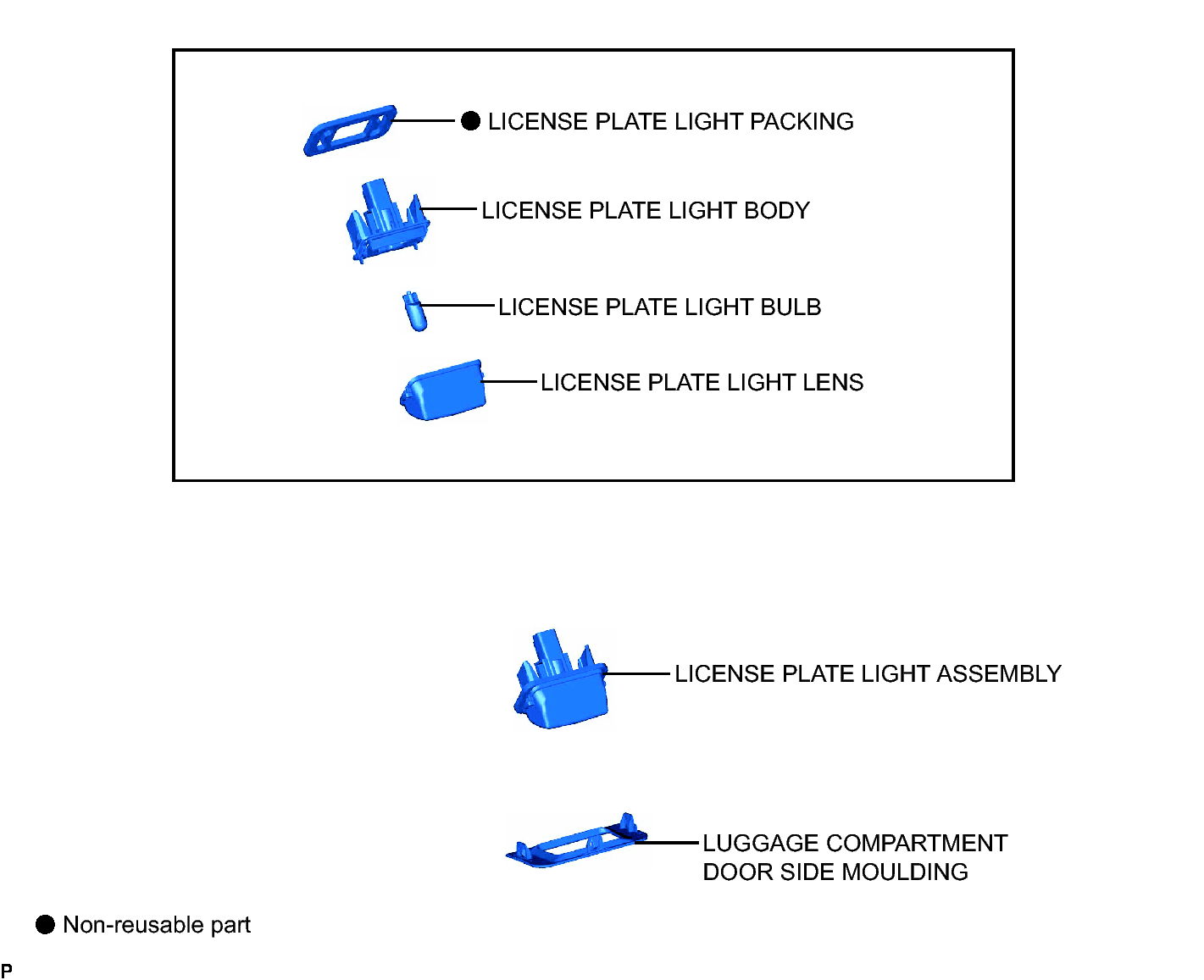

Fig 1: Identifying License Plate Light Assembly Replacement Components Location

GTY384191

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
