High Mounted Stop Light Assembly: Components: Illustration

Fig 1: Identifying High Mounted Stop Light Assembly Replacement Components Location With Torque Specifications (1 Of 2)
GTY364213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

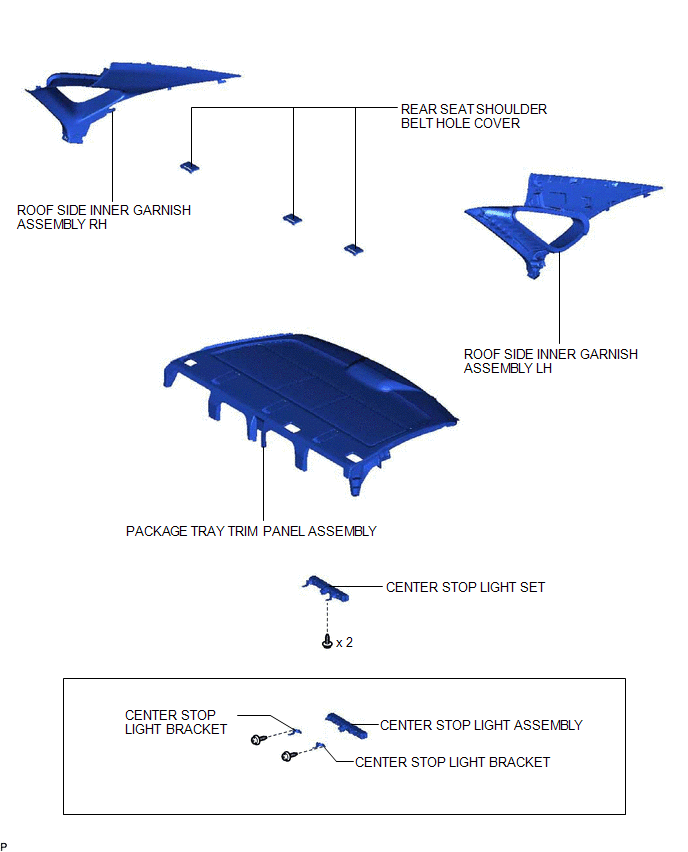

Fig 1: Identifying High Mounted Stop Light Assembly Replacement Components Location (2 Of 2)
GTY376321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
