Fog Light Assembly: Components: Illustration

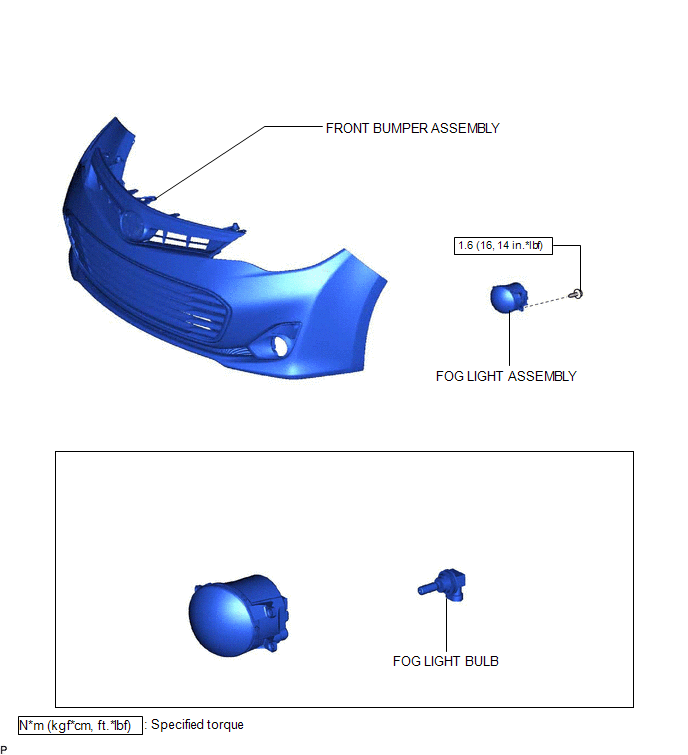

Fig 1: Identifying Fog Light Assembly Replacement Components Location With Torque Specifications

GTY383419

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
