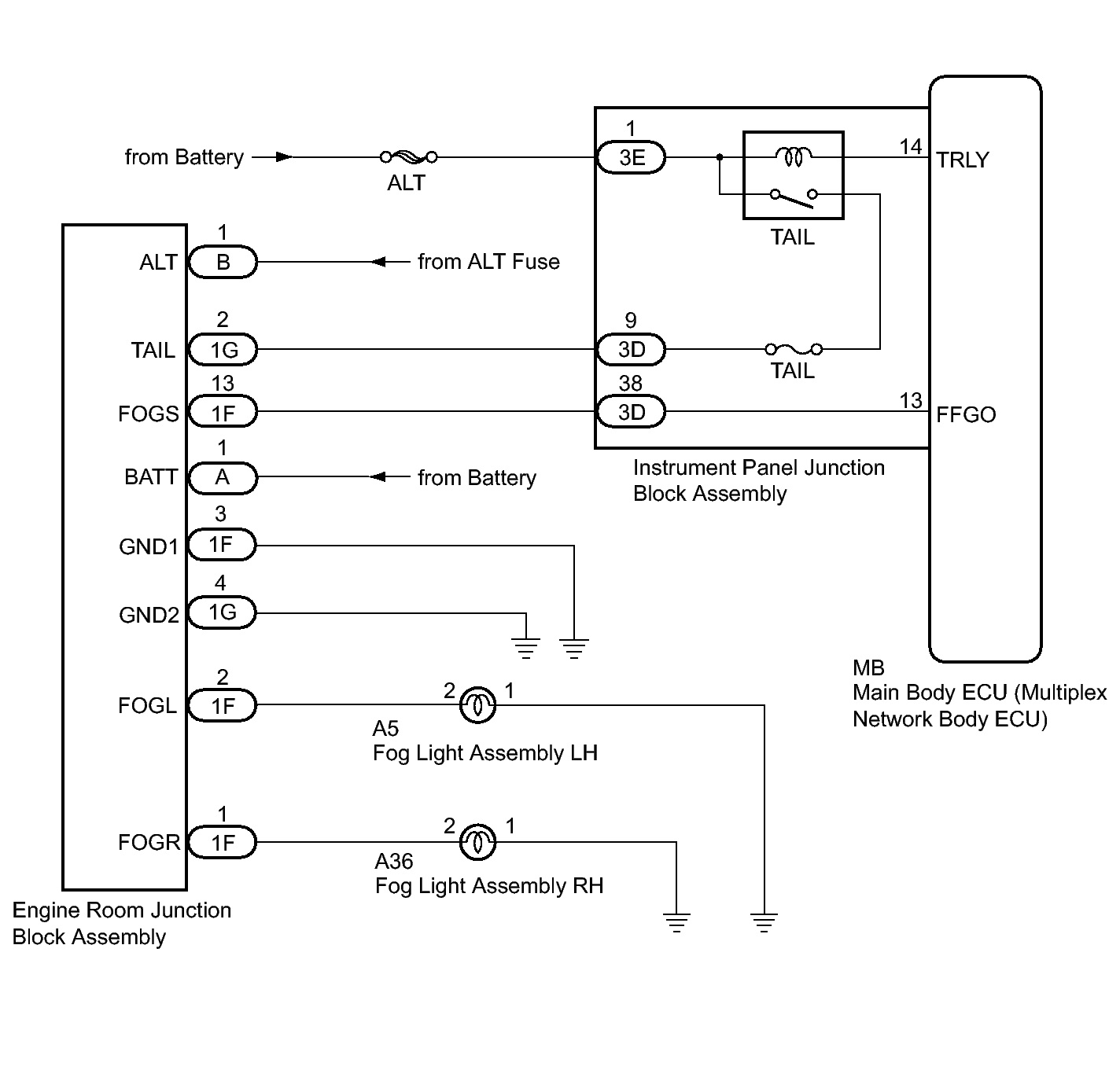

Home >> Toyota >> 2013 >> Avalon XLE >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Lighting System (Exterior) (Diagnostic Codes & Circuit Tests) (Except Hybrid) >> Lighting System >> Circuit Tests >> Front Fog Light Circuit >> Wiring Diagram
