DTC B1500: Fuel Sender Open Detected: Wiring Diagram

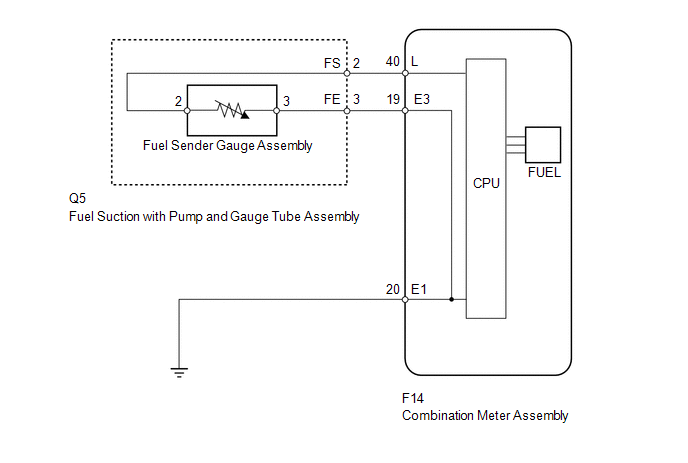

Fig 1: Identifying Fuel Sender Wiring Diagram

GTY224574

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
