Headlight Dimmer Switch Circuit: Wiring Diagram

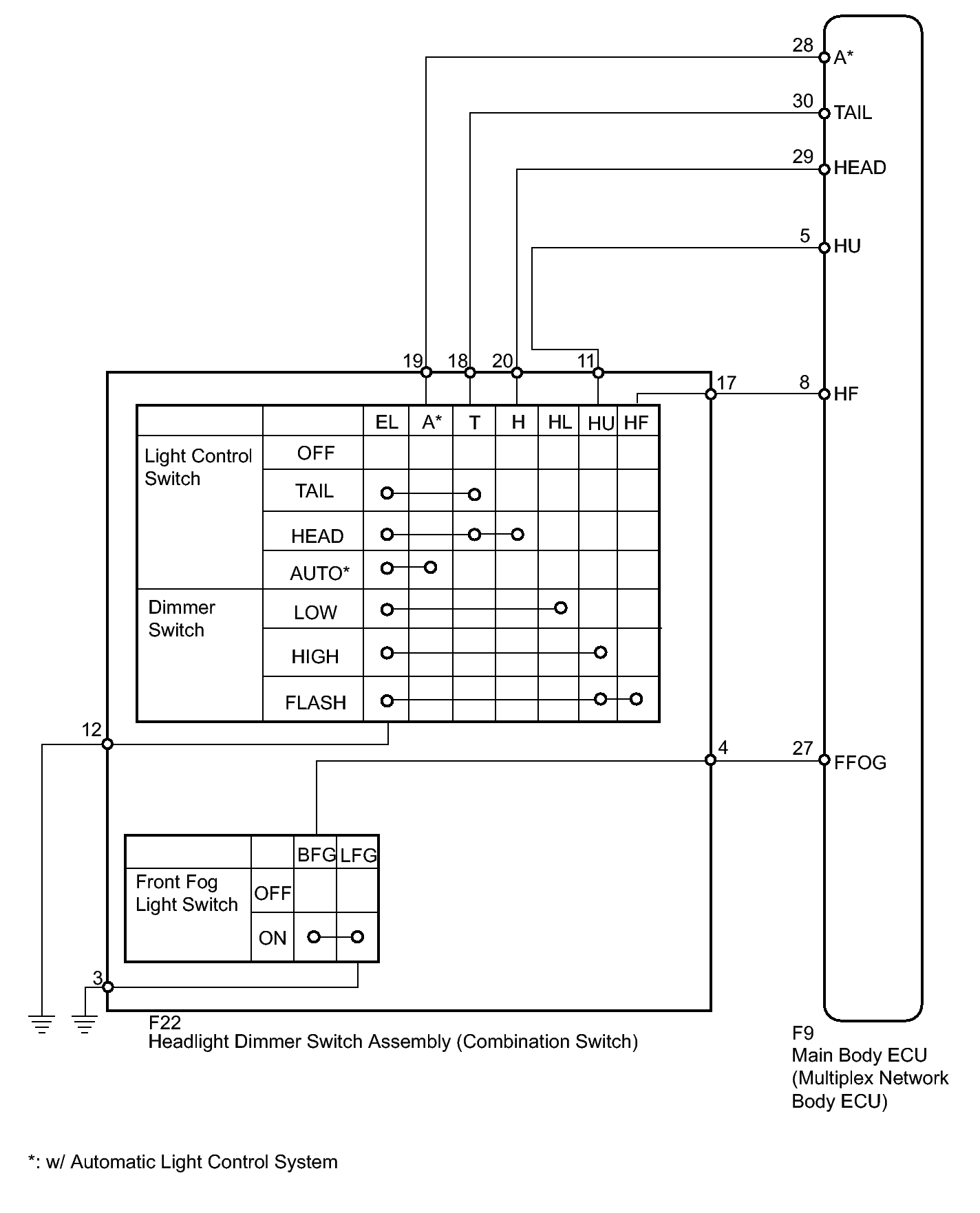

Fig 1: Headlight Dimmer Switch Wiring Diagram

GTY218504

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
