DTC B1500: Fuel Sender Open Detected: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Combination Meter / Active Test.
5. According to the display on the Techstream, perform the Active Test.
   COMBINATION METER



   Tester Display	Test part	Control Range	Diagnostic Note
   Fuel Meter Operation	Fuel gauge	EMPTY / 1/2 / FULL	Vehicle is stopped and the engine idling

   OK

   Fuel receiver gauge indication is normal.

NG → See step   6

OK: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Combination Meter / Data List.
5. According to the display on the Techstream, read the Data List.
   COMBINATION METER



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Fuel Input	Fuel sender gauge input/ Min.: 0 Max.: 127.5	Fuel sender input value	Unit: Liter

   OK

   Fuel value displayed on the tester is approximately the same as needle indication.

NG → See step   3

OK → See step   7

1. Remove the fuel sender gauge assembly. Refer to REMOVAL .

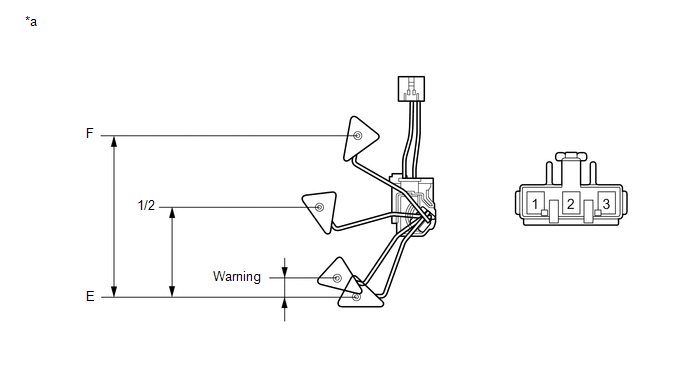

   Fig 1: Inspecting Fuel Sender Gauge Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a

   Component without harness connected (Fuel Sender Gauge Assembly)

   -

   -

2. Check that the float moves smoothly between F and E.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Float Level	Float Position (mm (in.))	Specified Condition
   1 - 2	F	142 to 152 (5.591 to 5.984)	13.5 to 16.5 Ω
   	1/2	71.1 to 76.1 (2.799 to 2.996)	208.3 Ω
   	Warning	5.9 to 10.9 (0.232 to 0.429)	365.2 Ω
   	E	0 (0)	405.5 to 414.5 Ω

4. Reinstall the fuel sender gauge assembly.

NG → See step   8

OK: Go to next step

1. Remove the fuel suction with pump and gauge tube assembly. Refer to REMOVAL - Step 11 .
   Fig 2: Identifying Fuel Suction With Pump And Gauge Tube Assembly Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A-2 (FS) - B-2	Always	Below 1 Ω
   A-3 (FE) - B-1	Always	Below 1 Ω

   TEXT IN ILLUSTRATION



   *a	Component without harness connected (Fuel Suction with Pump and Gauge Tube Assembly)
   *b	Connector A
   *c	Connector B

3. Reinstall the fuel suction plate sub-assembly.

NG → See step   9

OK: Go to next step

1. Disconnect the D100 combination meter assembly connector.
2. Disconnect the J71 fuel suction with pump and gauge tube assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D100-16 (L) - J71-2 (FS)	Always	Below 1 Ω
   D100-16 (L) - Body ground	Always	10 kΩ or higher
   J71-3 (FE) - Body ground	Always	Below 1 Ω

4. Reconnect the fuel suction with pump and gauge tube assembly connector.
5. Reconnect the combination meter assembly connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   10
