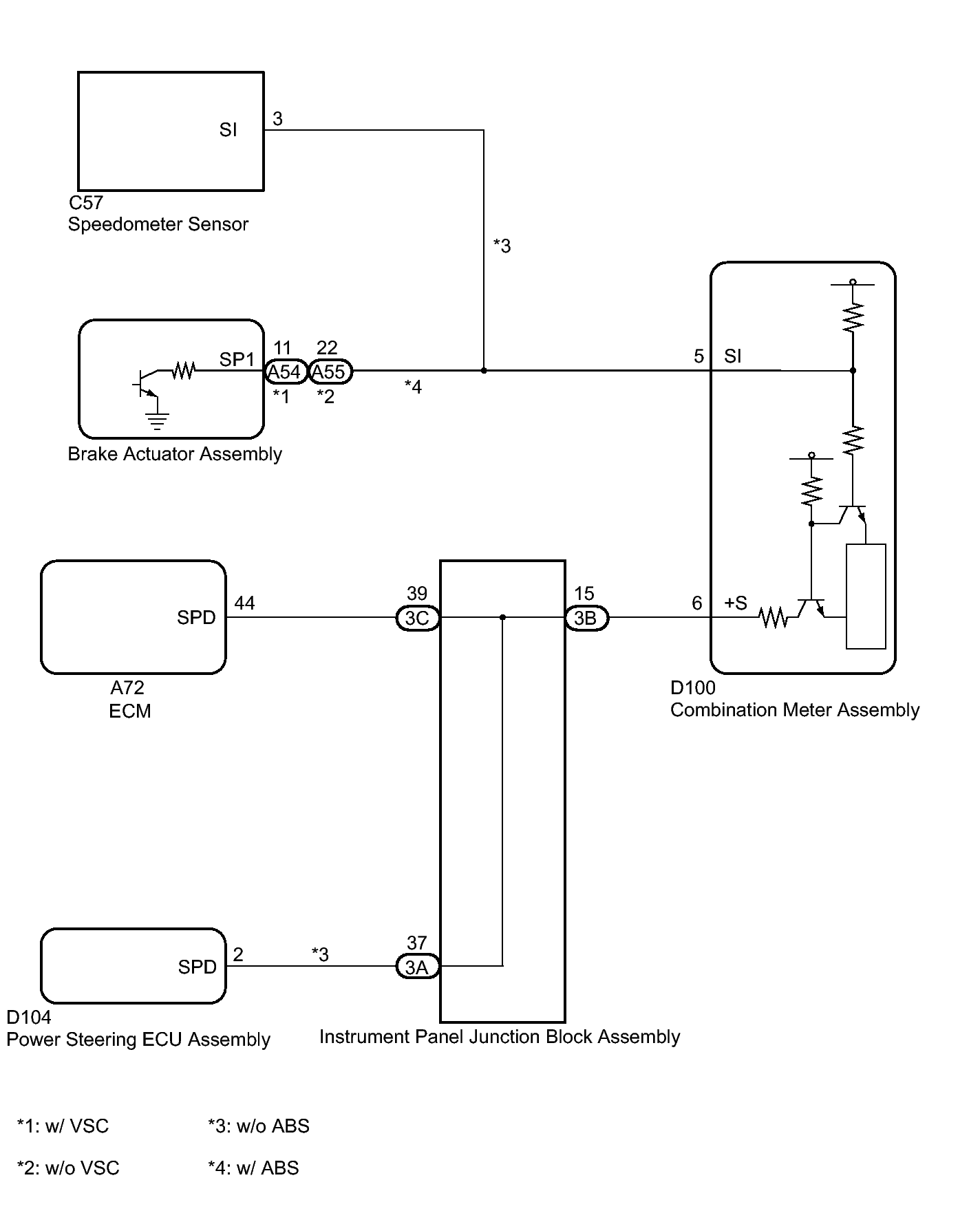

Home >> Toyota >> 2012 >> Yaris SE, Automatic Trans >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge System (Hatchback) (Diagnostic Codes & Symptom Tests) >> METER / GAUGE SYSTEM (for Hatchback) >> Circuit Tests >> Speed Signal Circuit >> Wiring Diagram
