LIGHT CONTROL RHEOSTAT (for Sedan): Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE INSTRUMENT PANEL BOX  .Refer to REMOVAL - Step 39
  3. REMOVE LIGHT CONTROL RHEOSTAT

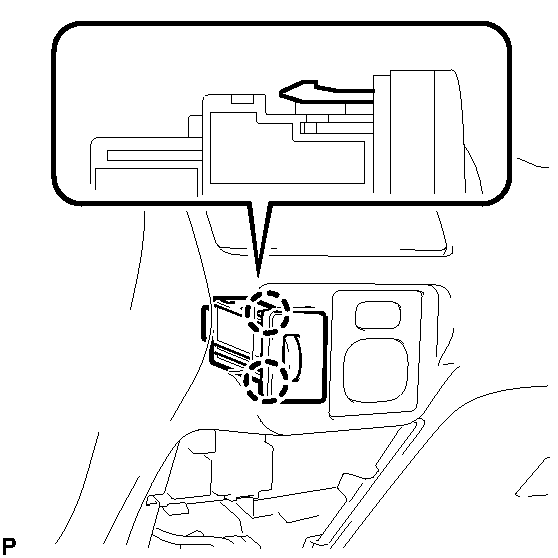

    Fig 1: Identifying Light Control Rheostat Claws
    GTY246053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Disengage the 2 claws and remove the light control rheostat.
