Parts Location: Illustration

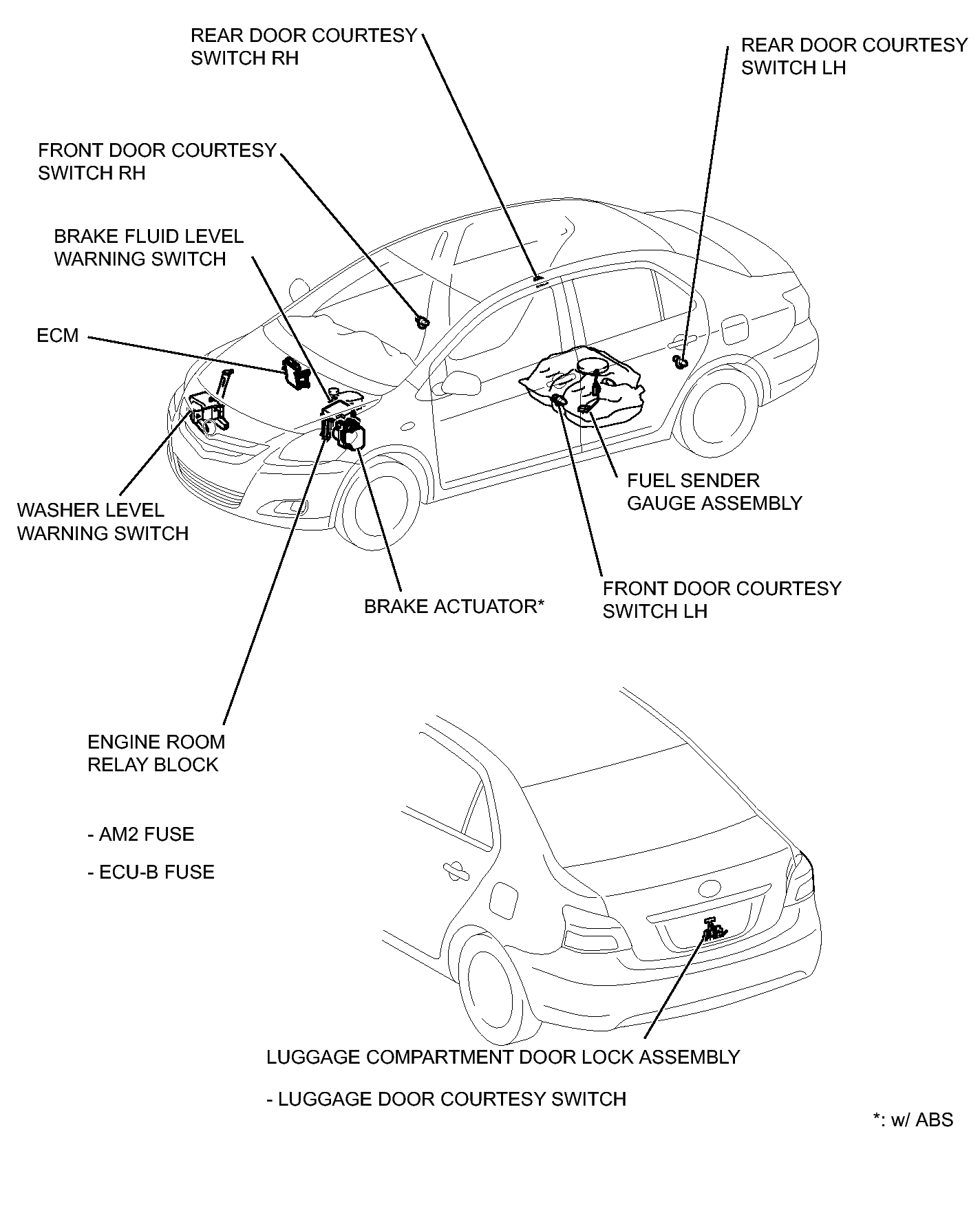

Fig 1: Identifying Meter / Gauge System Replacement Components Location (1 Of 4)
GTY342343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

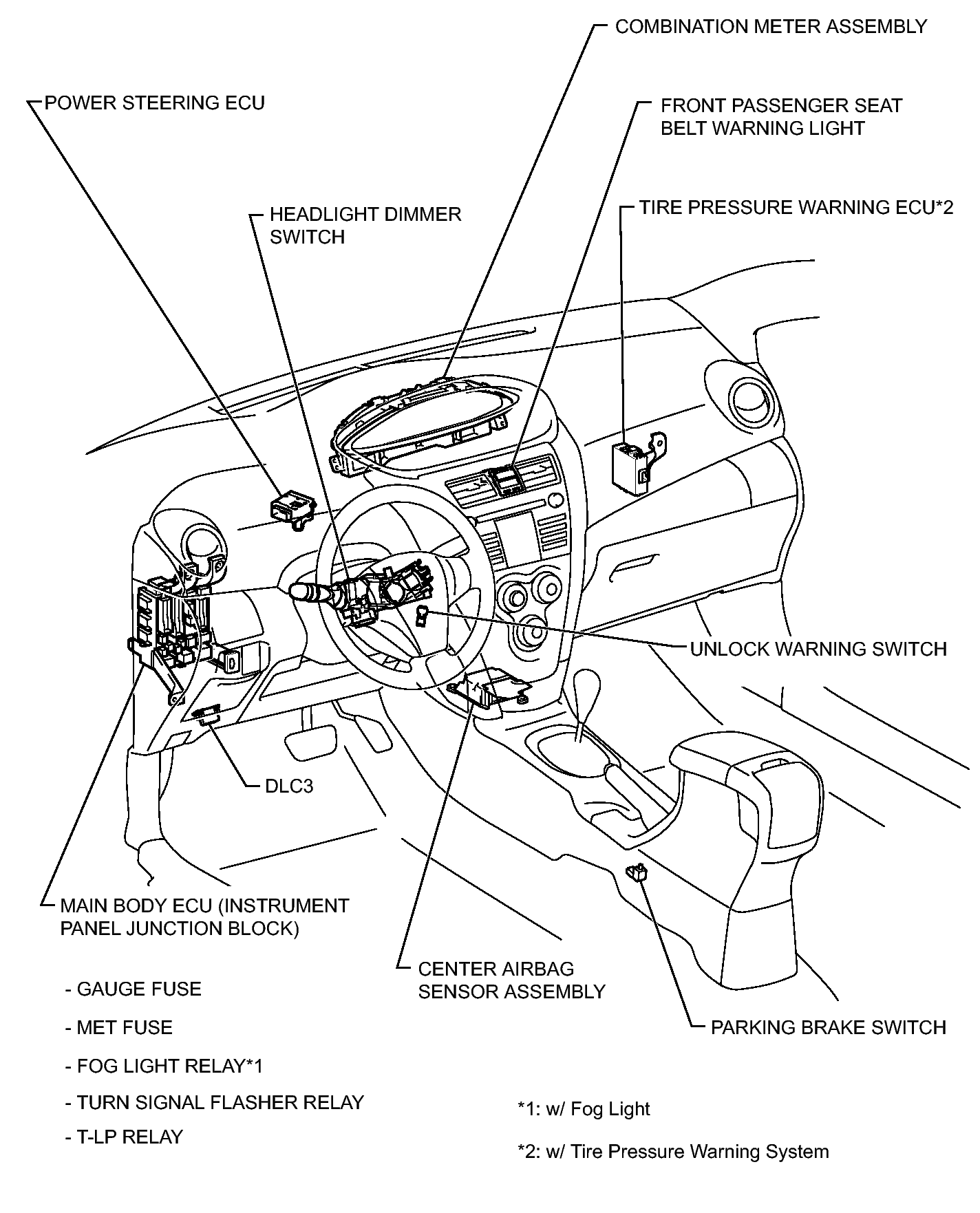

Fig 1: Identifying Meter / Gauge System Replacement Components Location (2 Of 4)
GTY329237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

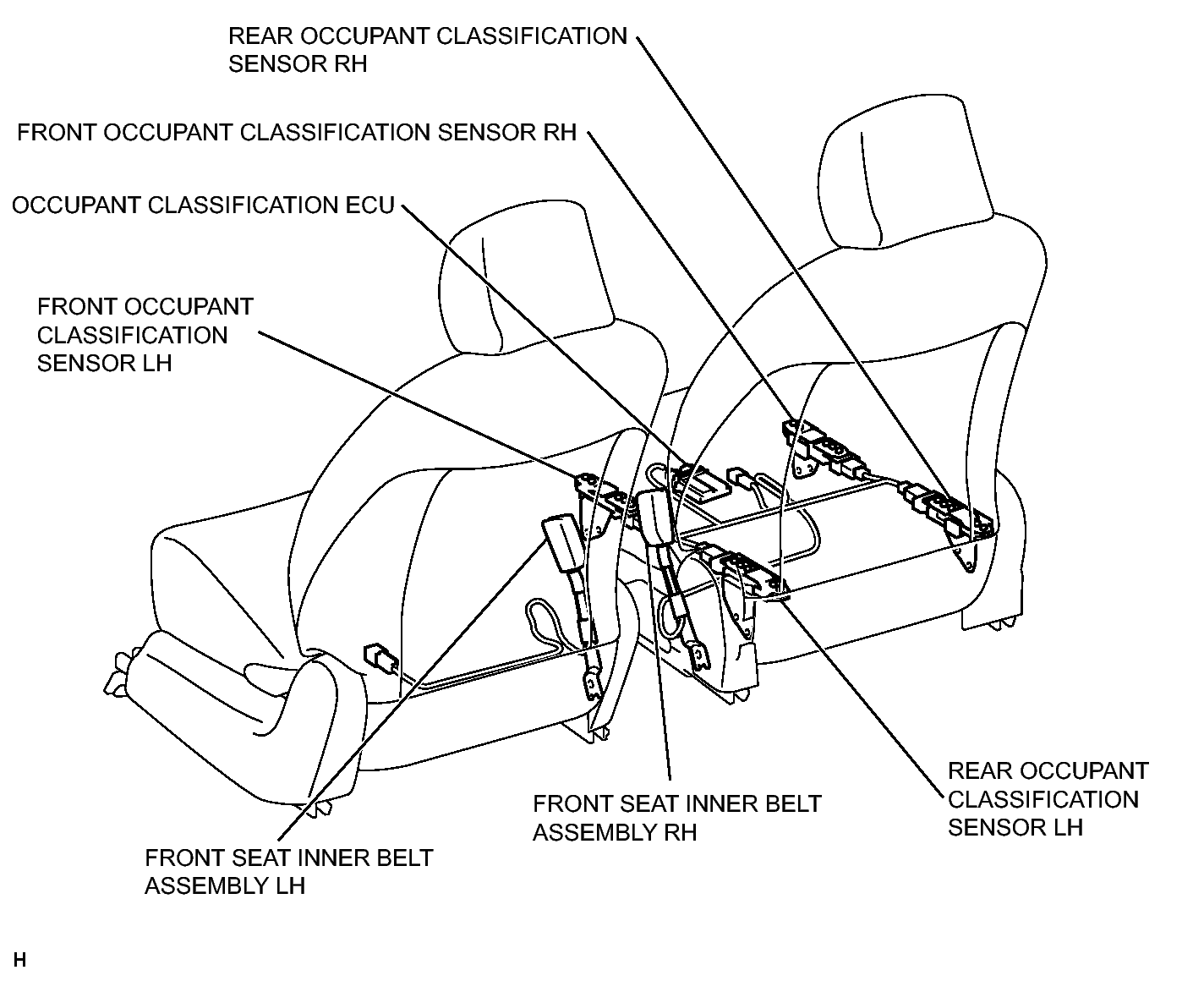

Fig 1: Identifying Meter / Gauge System Replacement Components Location (3 Of 4)
GTY233125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

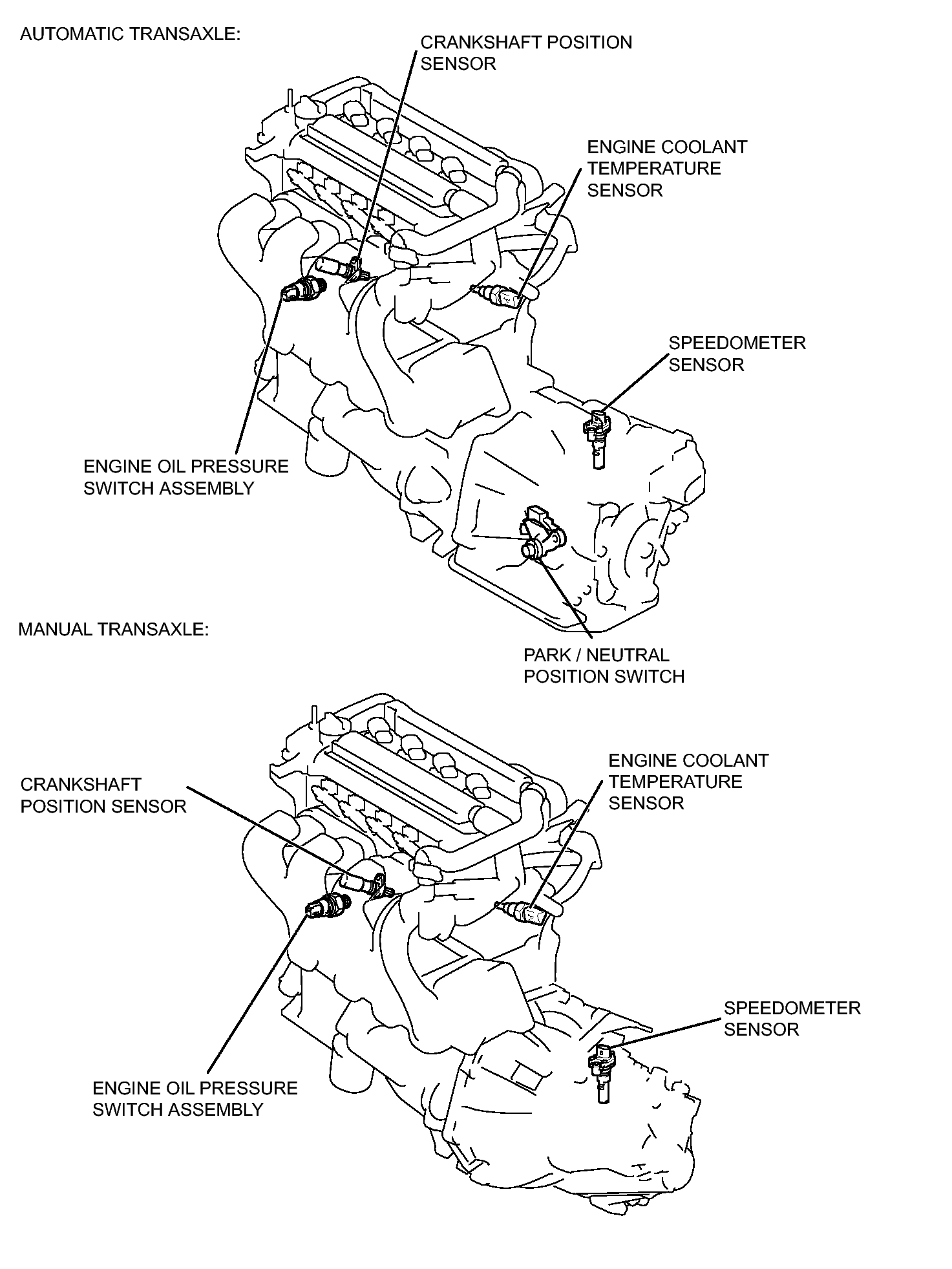

Fig 1: Identifying Meter / Gauge System Replacement Components Location (4 Of 4)
GTY218277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
