LIGHT CONTROL RHEOSTAT (for Sedan): Components: Illustration

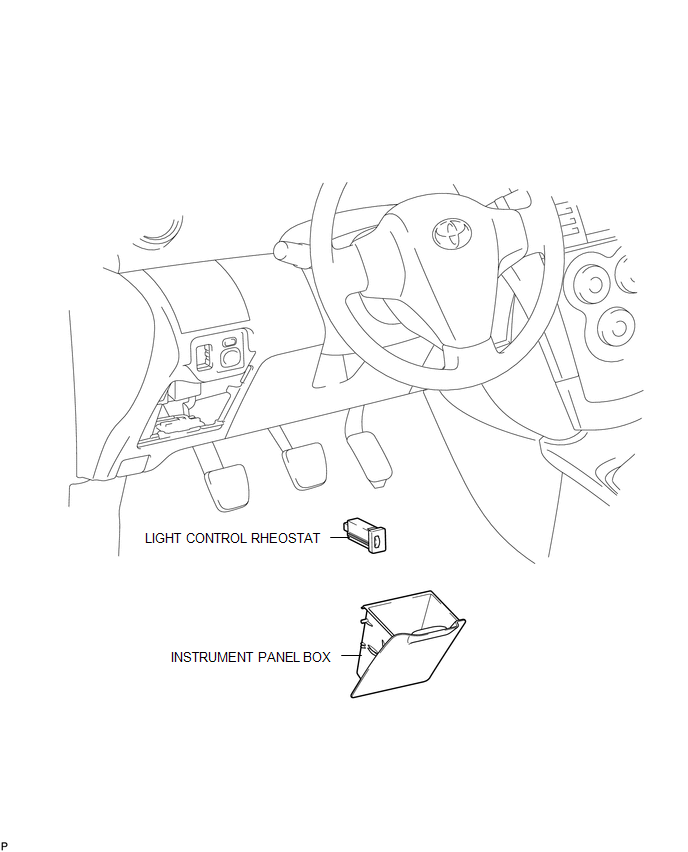

Fig 1: Identifying Light Control Rheostat Replacement Components (For Sedan)

GTY333055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
