COMBINATION METER (for Hatchback): Components: Illustration

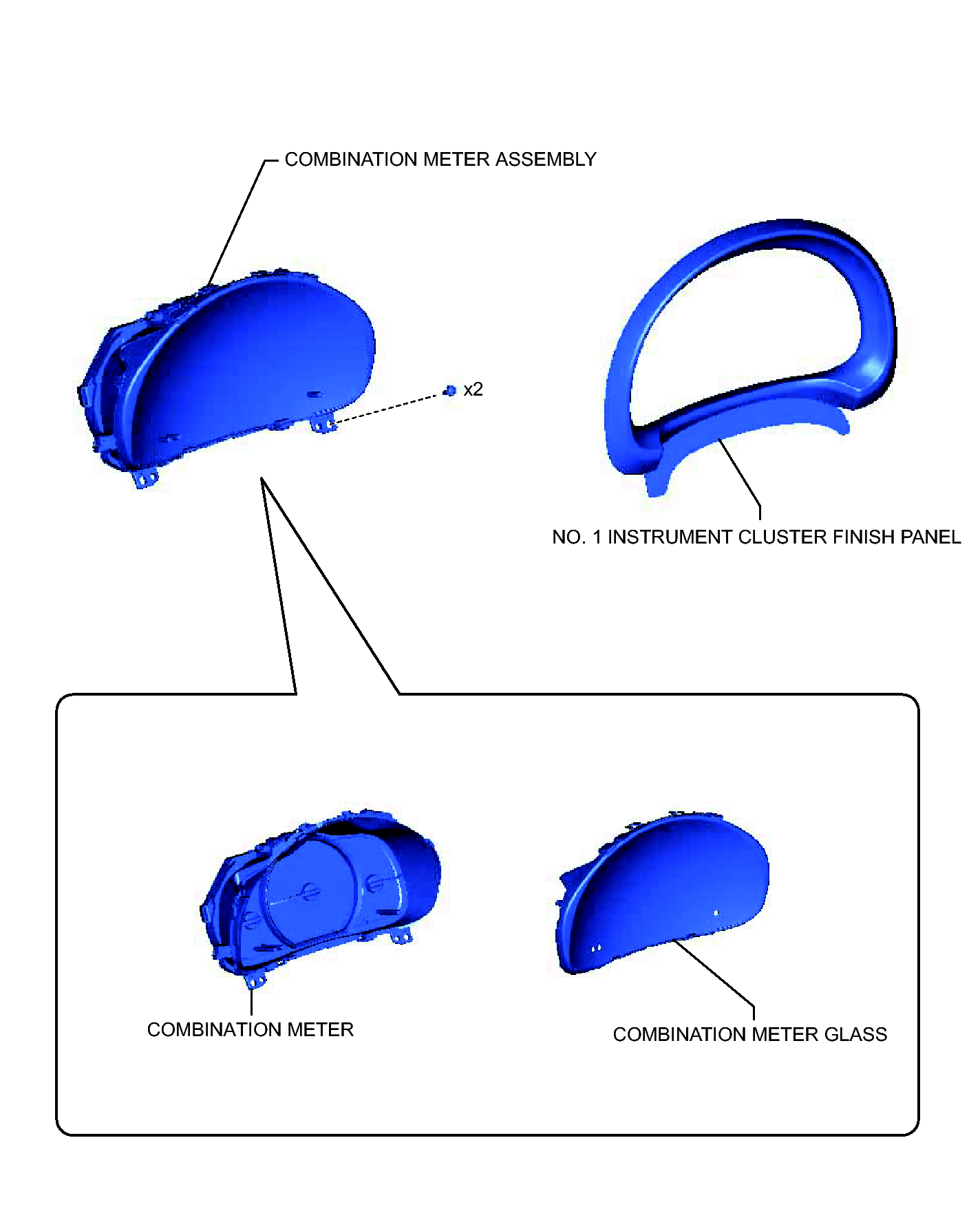

Fig 1: Identifying Combination Meter Replacement Components (For Hatchback)

GTY341994

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
