Oil Pump: Reassembly: Reassembly

WARNING: This page is about a different variant/trim than selected.

INSTALL FRONT OIL PUMP OIL SEAL
1. Coat the lip of a new front oil pump oil seal with a small amount of MP grease.

  Fig 1: Installing Oil Seal To Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, install the front oil pump oil seal to the front oil pump body subassembly.
  - SST: 09350-32014
    1. 09351-32140
  NOTE:
  The seal end should be level with the outer edge of the front oil pump body subassembly.
INSTALL FRONT OIL PUMP BODY O-RING
1. Coat a new front oil pump body O-ring with ATF and install it to the front oil pump body subassembly.

  Fig 2: Identifying O-Ring And Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Ensure that the O-ring is not twisted.
INSTALL FRONT OIL PUMP DRIVEN GEAR
1. Coat the front oil pump driven gear with ATF and install it to the front oil pump body subassembly with the marked side up.

  Fig 3: Identifying Front Oil Pump Driven Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT OIL PUMP DRIVE GEAR
1. Coat the front oil pump drive gear with ATF, and install it to the front oil pump body subassembly with the marked side up.

  Fig 4: Identifying Front Oil Pump Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL STATOR SHAFT ASSEMBLY

Align each knock pin of the stator shaft assembly with the holes in the front oil pump body subassembly and install the stator shaft assembly to the front oil pump body subassembly with the 16 "TORX" bolts.

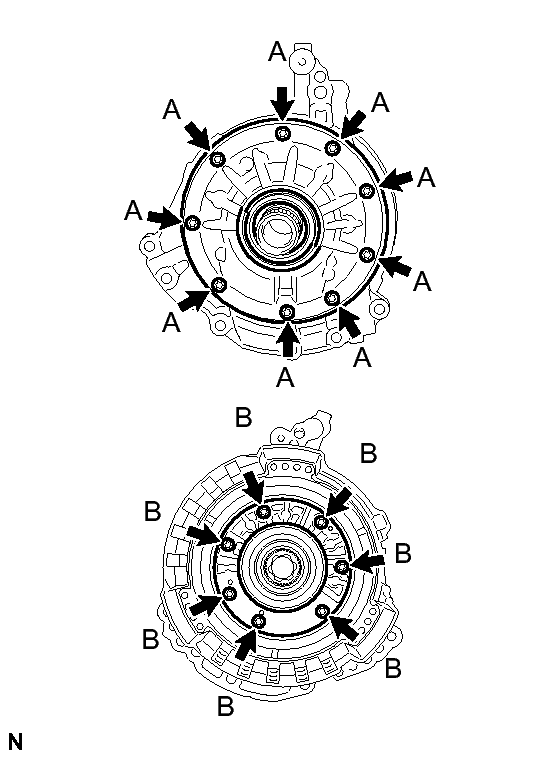

Fig 5: Identifying Stator Shaft Assembly Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BOLT LENGTH

Bolt	Length [mm (in.)]
A	14 (0.551)
B	26 (1.02)

Using a T30 "TORX" socket wrench, tighten the 16 "TORX" bolts.
Torque: 9.3 N*m (95 kgf*cm, 82 in.*lbf)

INSPECT FRONT OIL PUMP ASSEMBLY See step 1
